Cabinet Parts


Dispenser Front Parts


Freezer Door Parts


Freezer Liner Parts


Icemaker And Ice Container Parts


Optional Parts


Refrigerator Door Parts


Refrigerator Liner Parts


Shelf Parts


Unit Parts

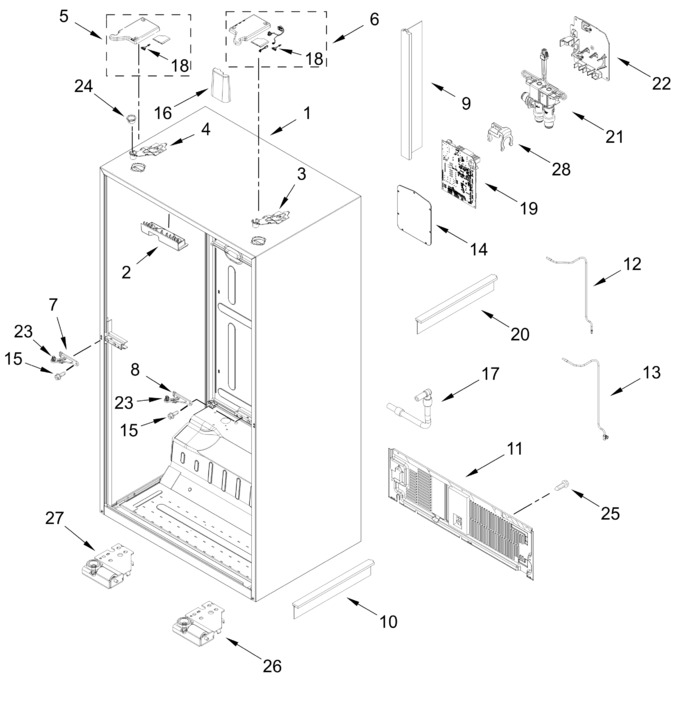

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI2948F547D7C4C1B6CA0878B04EDFC4EF		Cabinet (not A Servicable Part)		Appelez-nous	-
2	W11838113		Pivot Block   (Replaces: W11808291)		Appelez-nous	-
3	W11786665		Top Hinge Assembly (right Hand)   (Replaces: W11354191)		Appelez-nous	-
4	W11791043		Top Hinge Assembly (left Hand)   (Replaces: W11342589)		Appelez-nous	-
5	W11834331		Hinge Cover, Black (lh, Includes Reed Switch And Foil)   (Replaces: W11799815)		Appelez-nous	-
6	W11838052		Hinge Cover, Black (rh, Includes Switch, Sensor And Wifi Control)   (Replaces: W11799803)		Appelez-nous	-
7	W11786846		Center Hinge Assembly (left Hand)   (Replaces: W11553339)				$ 93.33
8	W11786849		Center Hinge Assembly (right Hand)   (Replaces: W11554905)		Appelez-nous	-
9	W11785608		Air Separator Assembly   (Replaces: W11681218)		Appelez-nous	-
10	W11785609		Air Separator Assembly (cabinet)   (Replaces: W11681219)		Appelez-nous	-
11	W11807499		Unit Cover Assembly   (Replaces: W11797551)		Appelez-nous	-
12	W11835059		Cabinet Water Fill Tube   (Replaces: W11768988)		Appelez-nous	-
13	W11835063		Water Dispenser Tube (cabinet)   (Replaces: W11768972)		Appelez-nous	-
14	W11785633		Lid Hv Assembly   (Replaces: W11701312)		Appelez-nous	-
15	W11819838		Screw   (Replaces: W11729359)		Appelez-nous	-
16	W11795510		Inlet Tube   (Replaces: W11618006)		Appelez-nous	-
17	W11807586		Filter Outlet Tube   (Replaces: W11768632)		Appelez-nous	-
18	W11785649		Reed Switch   (Replaces: W11548358)				$ 49.08
19	W11815971		Callisto Control Board   (Replaces: W11837344)				$ 405.10
20	W11790663		Air Bottom Separator   (Replaces: W11676389)		Appelez-nous	-
21	W11795362		Dual Water Valve   (Replaces: W11454781)				$ 99.40
22	W11790671		Triple Valve Bracket   (Replaces: W11541794)		Appelez-nous	-
23	WPW10505294		Door Coupler   (Replaces: W10505294)				$ 11.90
24	W10705239		Door Wire Retainer			Immediately	$ 51.64
25	WPW10141645		Screw   (Replaces: W10141645)				$ 8.05
26	W11791174		Roller Bracket Assembly (right Hand)   (Replaces: W11561087)				$ 80.20
27	W11791081		Roller Bracket Assembly (left Hand)   (Replaces: W11561088)				$ 80.20
28	W11252188		Double Lock Ring				$ 20.85
