Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11750332 Stationary Shelf Assembly   (Replaces: W11579004) Special Order $ 191.02

2 W11787399 Pantry Crisper Assembly   (Replaces: W11753408) In-Stock Immediately $ 214.92

3 W11787400 Glass Crisper Cover   (Replaces: W11664743) Appelez-nous -
4 W11787402 Crisper Assembly   (Replaces: W11692920) Special Order $ 181.06

5 W11787519 Pantry Lid Cover   (Replaces: W11753454) Special Order $ 188.77

6 W11787520 Storage Pan   (Replaces: W11692922) Special Order $ 181.06

7 W11787521 Pan Divider (storage)   (Replaces: W11606499) Appelez-nous -
8 W11787522 Pantry Cover Adapter (left Hand)   (Replaces: W11666149) Appelez-nous -
9 W11807676 Crisper Cover Frame   (Replaces: W11606487) Appelez-nous -
10 W11787537 Shelf Ladder (left Hand)   (Replaces: W11611176) Appelez-nous -
11 W11787531 Shelf Ladder (right Hand)   (Replaces: W11611177) Appelez-nous -
12 W11787543 Shelf Ladder (center)   (Replaces: W11611181) Appelez-nous -
13 W11748380 Crisper Roller Assembly   (Replaces: W11606482) Appelez-nous -
14 W11788021 Side Support Knob   (Replaces: W11607351) Appelez-nous -
15 W11787193 Pantry Adapter Assembly (left Hand)   (Replaces: W11753417) In-Stock Immediately $ 119.58

16 W11787195 Pantry Adapter Assembly (right Hand)   (Replaces: W11753418) Special Order $ 119.58

17 W11798522 Pantry Base (includes Thermistor Assembly)   (Replaces: W11724879) Appelez-nous -
18 W11826981 Center Support Assembly   (Replaces: W11810838) Appelez-nous -
19 W11798524 Crisper Adapter (left Hand)   (Replaces: W11606483) Appelez-nous -
20 W11826982 Crisper Adapter (right Hand)   (Replaces: W11810835) Appelez-nous -
21 W11798526 False Wall   (Replaces: W11606492) Appelez-nous -
22 W10840918 Side Support Flange Special Order $ 93.47

23 W11787530 Pantry Cover Adapter (right Hand)   (Replaces: W11666170) Appelez-nous -
24 W11842425 Thermistor Wire Assembly (pantry)   (Replaces: W11755093) Appelez-nous -
25 W10834284 Screw (grey) Appelez-nous -
26 W10847999 Screw (white)   (Replaces: W10804977) Special Order $ 13.47


    View Diagram in Separate Window     Print Icon   Print Part List

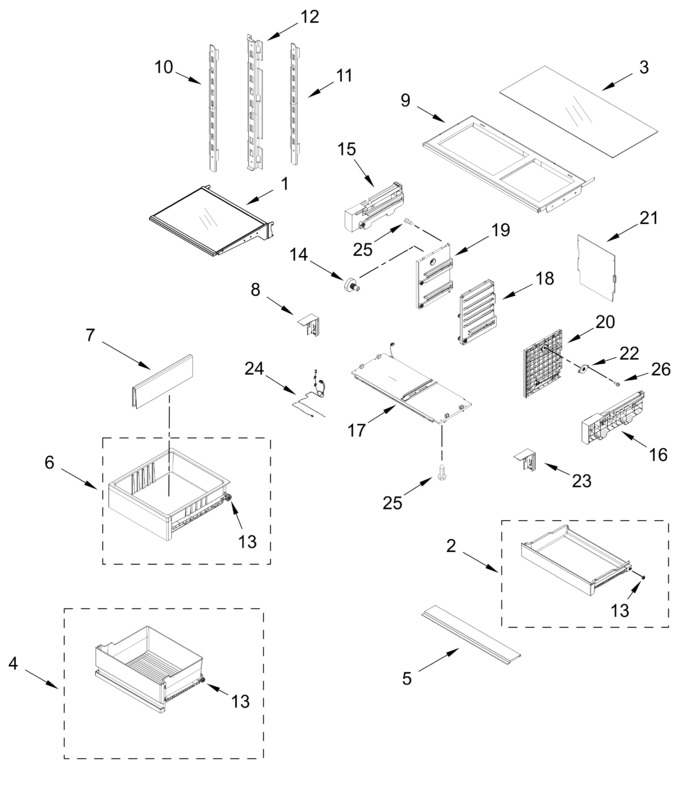

Diagram for WRFC5036RV01
