01 - Cover Sheet

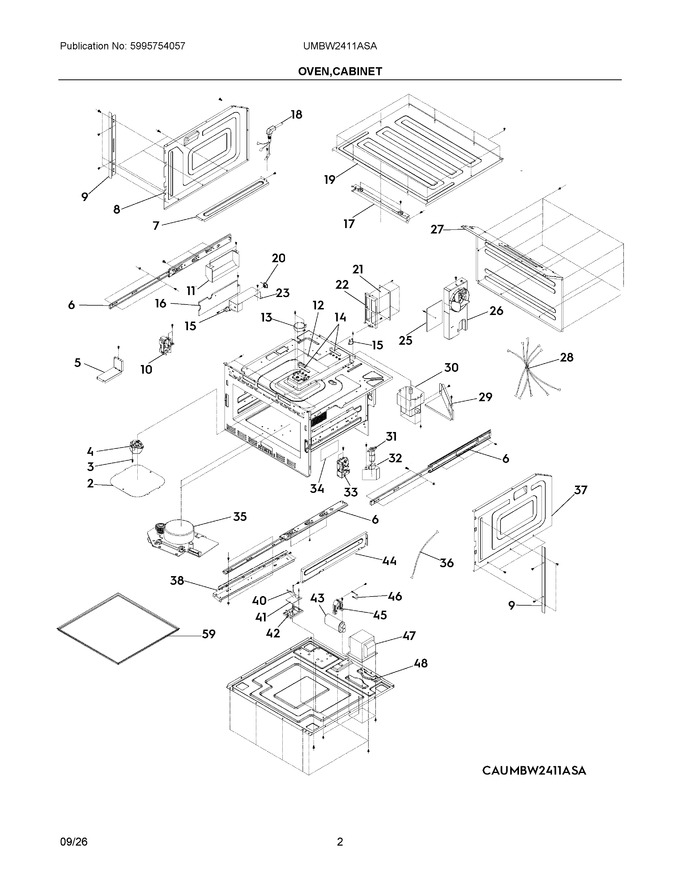

02 - Oven,cabinet


03 - Control Panel,door,misc.


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	4056061676		Cover, Splash		Appelez-nous	-
3	4056061684		Nun, Cover Splash		Appelez-nous	-
4	4056061692		Stripper, Assembly		Appelez-nous	-
5	4056061700		Cover, Wave, Guide, Metal		Appelez-nous	-
6	4056061718		Slider, Assembly, Left-right Side		Appelez-nous	-
7	4056061726		Damper, Metal, Left Side		Appelez-nous	-
8	4056061734		Panel Side, Outer, Left		Appelez-nous	-
9	4056095393		Plate, Corner, Side Panel		Appelez-nous	-
10	4056061775		Switch Interlock, Assembly, Left		Appelez-nous	-
11	4056061783		Cover, Wing Guide, Lower		Appelez-nous	-
12	4056061791		Insulation, Sliver Paper		Appelez-nous	-
13	4056061809		Motor, Turntable		Appelez-nous	-
14	4056061817		Cover, Vave Guide, Upper		Appelez-nous	-
15	4056021050		Thermostat, Assemlby, Magnetron		Appelez-nous	-
16	4056061825		Cover, Metal, Wind Guide		Appelez-nous	-
17	4056061841		Shield, Upper Panel		Appelez-nous	-
18	4056095401		Power Cord		Appelez-nous	-
19	4056061874		Top Panel, Outer Case		Appelez-nous	-
20	5304509652		Sensor, Humidity				$ 305.46
21	4056061882		Configured Electronic Board		Appelez-nous	-
22	4056061890		Cover, Main Board		Appelez-nous	-
23	4056061908		Cover, Wave Guide, Upper		Appelez-nous	-
25	4056061916		Power Board		Appelez-nous	-
26	4056061924		Fan Assembly, 120v, 60hz		Appelez-nous	-
27	4056061932		Panel, Rear Plate		Appelez-nous	-
28	4056061940		Harness-electrical		Appelez-nous	-
29	4056061965		Cover, Metal, Wave Guide		Appelez-nous	-
30	4055792792		Magnetron		Appelez-nous	-
31	5304527876		Bulb, Lamp		Appelez-nous	-
32	4056061973		Cover, Lamp		Appelez-nous	-
33	4056061981		Switch Interlock, Assembly, Right		Appelez-nous	-
34	4056062021		Cover, Lamp		Appelez-nous	-
35	4056062039		Motor Assembly		Appelez-nous	-
36	4056062047		Harness Wiring, Main		Appelez-nous	-
37	4056062054		Panel, Outer Case, Left Side		Appelez-nous	-
38	4056062062		Support, Hinge Rail		Appelez-nous	-
40	5304509451		Fuse			Immediately	$ 13.01
41	5304525109		Filter, Noise, Electronic				$ 86.00
42	4056062070		Bracket, Main Board		Appelez-nous	-
43	5304509478		Capacitor, High Voltage			Immediately	$ 153.84
44	4056062088		Damper, Metal, Right Side		Appelez-nous	-
45	4056062096		Holder, High Voltage		Appelez-nous	-
46	4056062104		Diode, High Voltage		Appelez-nous	-
47	4055340576		Transformer, Highvoltage		Appelez-nous	-
48	4056062112		Base Panel, Assembly		Appelez-nous	-
59	4056095419		Insulator Heat, Assembly		Appelez-nous	-
NI	4056095435		Bracket, Power Cord		Appelez-nous	-
