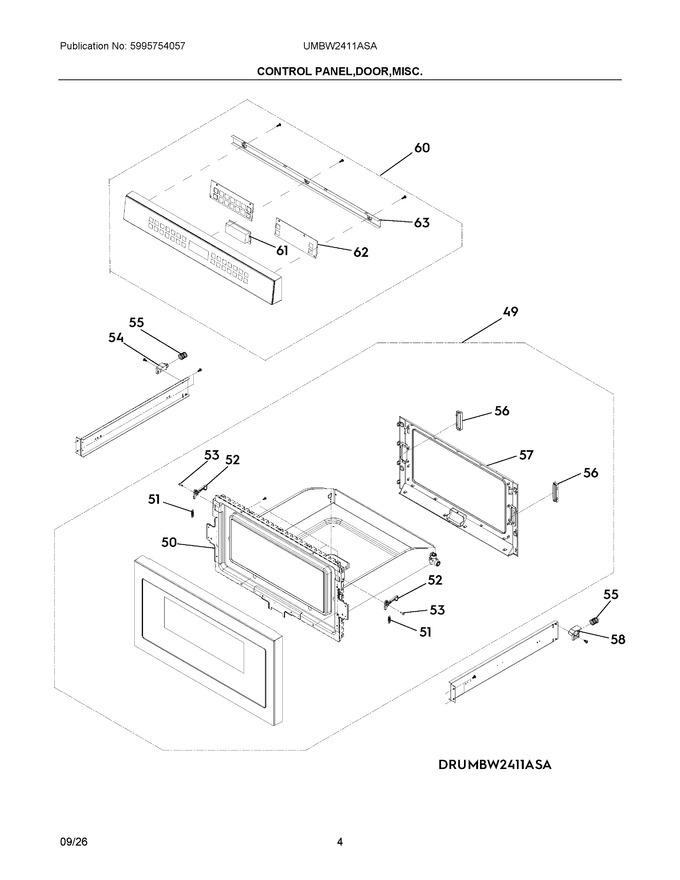

03 - Control Panel,door,misc.
04 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 50 | 4056062120 | Door Frame, Assembly |
|
- | |||||
| 51 | 4056062138 | Spring, Door Latch |
|
- | |||||
| 52 | 4056062146 | Latch, Assembly |
|
- | |||||
| 53 | 5304514312 | Pin, Latch |
|
- | |||||
| 54 | 4056062153 | Bracket Support, Left Side |
|
- | |||||
| 55 | 4056062161 | Spring, Door Rail |
|
- | |||||
| 56 | 4056062179 | Cover, Plastic, Door Frame |
|
- | |||||
| 57 | 4056062187 | Gasket Door |
|
- | |||||
| 58 | 4056062195 | Bracket, Right Side |
|
- | |||||
| 60 | 4056095385 | Control Panel, Assembly, Stainless |
|
- | |||||
| 61 | 4056062211 | Display Board, Screen |
|
- | |||||
| 62 | 4056062229 | User Interface Board |
|
- | |||||
| 63 | 4056062237 | Bracket, User Interface, Rear |
|
- |
