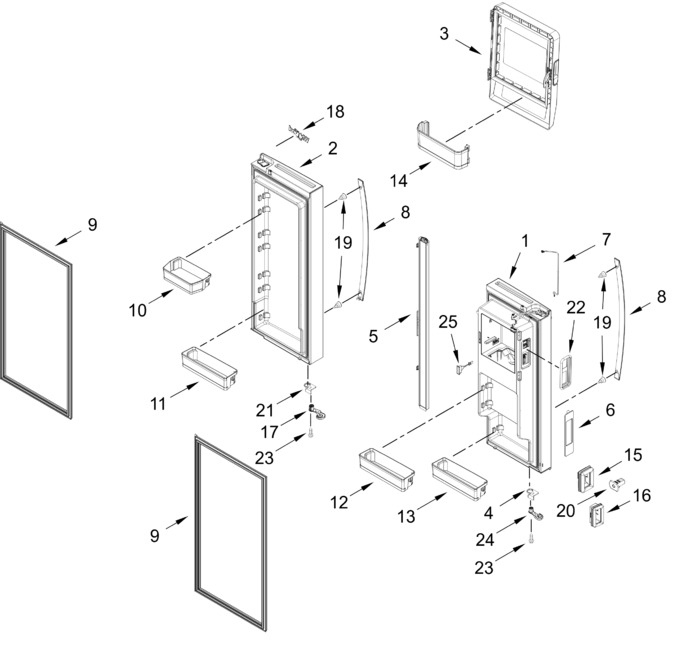

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11846179		Left Door Assembly (stainless, Includes Door Gasket)		Appelez-nous	-
2	W11796982		Right Door Assembly (stainless, Includes Door Gasket)   (Replaces: W11672796)				$ 598.85
3	W11838136		Ice Door Assembly   (Replaces: W11796701)		Appelez-nous	-
4	W11787142		Door Stopper (black, Left Hand)   (Replaces: W11681260)		Appelez-nous	-
5	W11787150		Mullion Flipper Assembly   (Replaces: W11555781)		Appelez-nous	-
6	W11787152		Door Duct Retainer   (Replaces: W11685003)		Appelez-nous	-
7	W11835058		Dispenser Water Tube (door)   (Replaces: W11768993)		Appelez-nous	-
8	W11163764		Door Handle (stainless)   (Replaces: W11045530)			Immediately	$ 183.31
9	W11816123		Refrigerator Door Gasket (grey)   (Replaces: W11586645)				$ 223.35
10	W11818567		Bin, Gallon   (Replaces: W11579028)		Appelez-nous	-
11	W11818569		Bin, Bottom (right Hand)   (Replaces: W11579044)		Appelez-nous	-
12	W11818570		Bin, Dispenser (left Hand)   (Replaces: W11579041)		Appelez-nous	-
13	W11818572		Bin, Bottom (left Hand)   (Replaces: W11579046)		Appelez-nous	-
14	W11838151		Bin, Trivet (ice Door)   (Replaces: W11821715)		Appelez-nous	-
15	W11787853		Door Supply Duct Assembly   (Replaces: W11740632)		Appelez-nous	-
16	W11787790		Return Duct Assembly   (Replaces: W11740633)		Appelez-nous	-
17	W11818658		Door Bushing (grey, Right Hand)   (Replaces: W11562282)		Appelez-nous	-
18	W11223753		Badge   (Replaces: W10884773)			Immediately	$ 87.26
19	W11449276		Screw   (Replaces: W11328753)			Immediately	$ 17.06
20	W11787121		Retainer Plug   (Replaces: W11719970)		Appelez-nous	-
21	W11818657		Door Stopper (black, Right Hand)   (Replaces: W11681256)		Appelez-nous	-
22	W11818599		Supply Gasket   (Replaces: W11611713)		Appelez-nous	-
23	WP8281136		Screw   (Replaces: 8281136)				$ 7.30
24	W11818659		Door Bushing (grey, Left Hand)   (Replaces: W11562283)		Appelez-nous	-
25	W11793915		Reed Switch   (Replaces: W11553901)				$ 63.22
