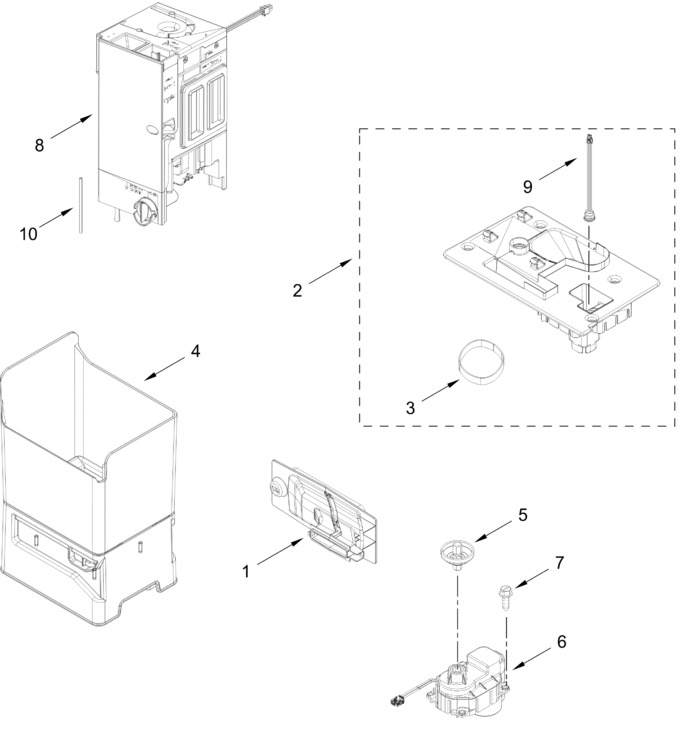

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11790664		Ice Maker Air Duct Assembly   (Replaces: W11644790)				$ 101.06
2	W11838137		Ice Chute Assembly   (Replaces: W11796702)		Appelez-nous	-
3	WPW10291905		Chute Gasket   (Replaces: W10291905)				$ 27.68
4	W11838134		Nugget Ice Bin   (Replaces: W11772740)		Appelez-nous	-
5	W11228132		Motor Shaft   (Replaces: W11363574)			Immediately	$ 31.10
6	W11787789		Dispenser Motor   (Replaces: W11722714)		Appelez-nous	-
7	WP8281163		Screw (stainless)   (Replaces: 8281163)			Immediately	$ 10.70
8	W11838133		Nugget Icemaker Assembly   (Replaces: W11791330)		Appelez-nous	-
9	W11763767		Optical Water Level Sensor		Appelez-nous	-
10	W11797717		Suction Tube (ice Maker)		Appelez-nous	-
