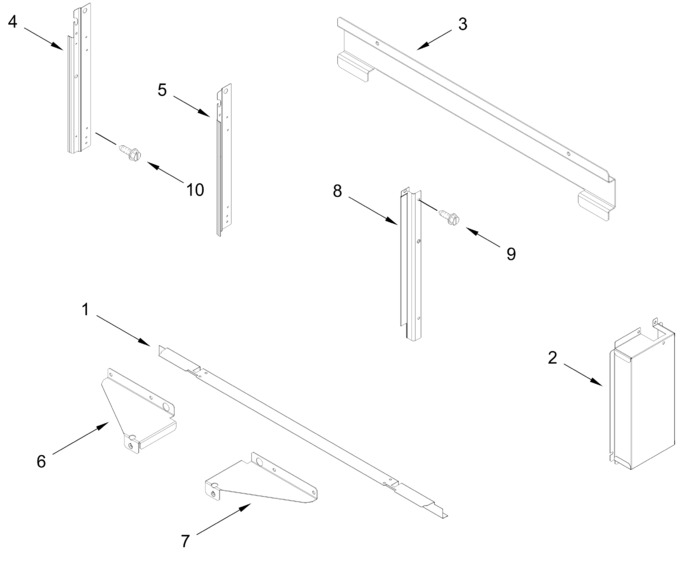

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11676904 | Trim, Bottom (black) (Replaces: W11312201) |
|
Immediately | $ 366.30 | ||||
| 2 | W11759561 | Box, Conduit (Replaces: W11748304) |
|
- | |||||
| 3 | W11673269 | Support, Microwave Module (Replaces: W10420960) |
|
Immediately | $ 69.92 | ||||
| 4 | W11627410 | Siderail, Combo (left) |
|
$ 61.70 | |||||
| 5 | W11627411 | Siderail, Combo (right) |
|
$ 59.61 | |||||
| 6 | W10239156 | Bracket, Lower (left) |
|
$ 21.24 | |||||
| 7 | W10239157 | Bracket, Lower (right) |
|
$ 20.73 | |||||
| 8 | W11239807 | Trim, Bended Side (left) |
|
$ 81.83 | |||||
| 9 | W11602623 | Screw (Replaces: W11404000) |
|
$ 14.23 | |||||
| 10 | 7101P65360 | Screw |
|
- | |||||
| W11555848 | Harness, Input |
|
- | ||||||
| W11759563 | Harness, Inverter (Replaces: W11746724) |
|
- | ||||||
| W11226264 | Strap, Ground |
|
- | ||||||
| 4450800 | Screw, Grounding |
|
$ 13.47 | ||||||
| W11759565 | Harness, Jumper (Replaces: W11746440) |
|
- | ||||||
| W11759566 | Conduit (Replaces: W11746543) |
|
- | ||||||
| W11759562 | Harness, Main Upper Mwo (Replaces: W11746723) |
|
$ 293.42 | ||||||
| W11754867 | Harness, Main Lower Mwo (Replaces: W11706181) |
|
$ 146.29 | ||||||
| W11759564 | Harness, Comm And Eol (Replaces: W11595116) |
|
- | ||||||
| W11754863 | Harness, Fan And Turntable (Replaces: W11476496) |
|
- | ||||||
| W11598162 | Bag, Hardware (Replaces: W11394925) |
|
$ 15.61 | ||||||
| W11239805 | Trim, Bended Side (right) |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- |
