SELECT A DIAGRAM

Cabinet And Stirrer Parts


Control Panel Parts


Internal Microwave Parts


Microwave Door Parts


Optional Parts (not Included)


Oven Parts

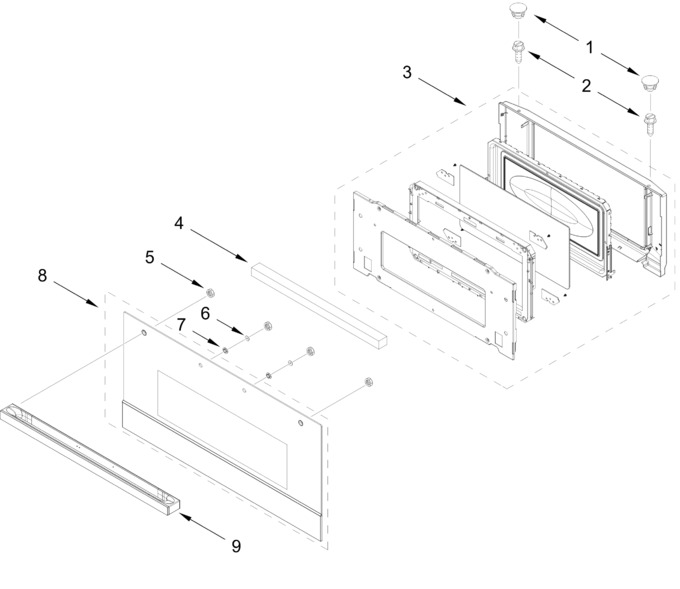

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11756840		Cap, Screw   (Replaces: 8304588BL)				$ 12.34
2	7101P33860		Screw		Appelez-nous	-
3	W11603381		Inner Door Assembly		Appelez-nous	-
4	W10359769		Foam, Door Handle				$ 14.76
5	W11602632		Nut   (Replaces: W11317741)		Appelez-nous	-
6	W11607071		Washer   (Replaces: W11501149)		Appelez-nous	-
7	W11132942		Spacer, Handle				$ 16.83
8	W11778621		Outer Door Assembly (stainless)   (Replaces: W11693535)		Appelez-nous	-
9	W11411894		Door Handle (stainless)				$ 1,067.98

    View Diagram in Separate Window       Print Part List
