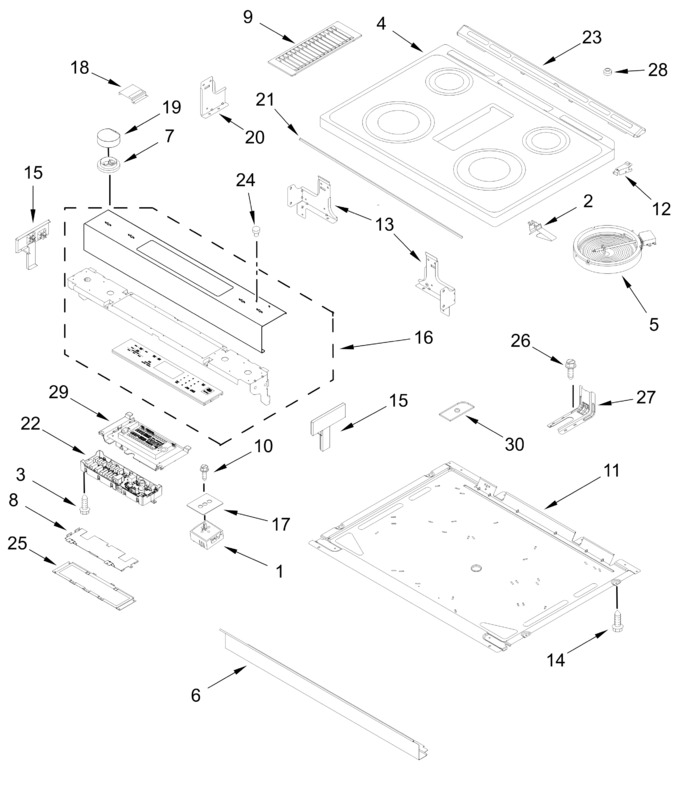

Cooktop Parts
Door Parts
Drawer Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11848054 | Switch, Infinite (Replaces: W11769052) |
|
- | |||||
| 2 | W11663556 | Spring, Element (Replaces: W11600012) |
|
Immediately | $ 13.36 | ||||
| 3 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 4 | W10818724 | Cooktop (stainless) (Replaces: W10536331) |
|
Immediately | $ 1,080.05 | ||||
| 5 | W11517959 | Element, (dual 3000w) (Replaces: W11282542) |
|
Immediately | $ 132.01 | ||||
| 6 | W10743281 | Console, Lower Panel (stainless) |
|
- | |||||
| 7 | W11647014 | Bezel (stainless) (Replaces: W11592977) |
|
- | |||||
| 8 | W10558372 | Bracket, Control |
|
$ 22.59 | |||||
| 9 | W11211500 | Grill, Air (Replaces: W10575593) |
|
Immediately | $ 223.54 | ||||
| 10 | W11846982 | Screw (Replaces: W10498399) |
|
$ 10.58 | |||||
| 11 | W10561812 | Pan, Radiant |
|
- | |||||
| 12 | W10162253 | Brace, Corner (left) |
|
$ 66.72 | |||||
| 13 | W10289170 | Support, Cooktop (left) |
|
$ 27.05 | |||||
| 14 | W11244557 | Screw (Replaces: 3196173) |
|
$ 12.86 | |||||
| 15 | W10557751 | Endcap (stainless, Left) |
|
$ 151.97 | |||||
| 16 | W11844194 | Console (stainless) (Replaces: W11829988) |
|
- | |||||
| 17 | W11783270 | Gasket, Infinite Switch |
|
- | |||||
| 18 | W11158783 | Shield, Keypad |
|
- | |||||
| 19 | W11233555 | Knob (Replaces: W10505763) |
|
$ 74.47 | |||||
| 20 | W10598048 | Bracket, Console (center) |
|
$ 23.16 | |||||
| 21 | W10802441 | Gasket, Console And Cooktop (Replaces: W10612719) |
|
Immediately | $ 21.36 | ||||
| 22 | W11844195 | Control, Mrc2 (Replaces: W11822053) |
|
- | |||||
| 23 | W11170796 | Trim, Vent (stainless) (Replaces: W10636529) |
|
Immediately | $ 131.18 | ||||
| 24 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.91 | ||||
| 25 | W10557780 | Bracket , Control |
|
$ 33.01 | |||||
| 26 | 7101P48560 | Screw, Anti-tip |
|
- | |||||
| 27 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 21.77 | ||||
| 28 | W11690600 | Bumper (Replaces: W10854253) |
|
Immediately | $ 13.42 | ||||
| 29 | W11108634 | Display, Assembly (Replaces: W10759326) |
|
$ 530.65 | |||||
| 30 | W10882900 | Gasket |
|
$ 21.01 | |||||
| W10557754 | Endcap (stainless, Right) |
|
$ 151.97 | ||||||
| W10162252 | Brace, Corner (right) |
|
$ 70.73 | ||||||
| W11171878 | Harness, Cooktop |
|
Immediately | $ 187.16 | |||||
| W11198274 | Harness, Down Draft Fan Jumper |
|
$ 105.96 | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| ARI76BF577D359F4F7B6AC1C45BB9FB0006 | (left Front) |
|
- | ||||||
| ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 | (left Rear) |
|
- | ||||||
| WPW10251108 | Element (3200w) (Replaces: W10251108) |
|
Immediately | $ 307.76 | |||||
| W10664316 | Clip, Harness (cooktop) |
|
$ 18.87 | ||||||
| WPW10342780 | Element (1300w) (Replaces: W10342780) |
|
Immediately | $ 159.19 | |||||
| W11226772 | Display Harness (Replaces: W11172426) |
|
Immediately | $ 213.24 | |||||
| W10289169 | Support, Cooktop (right) |
|
$ 27.05 | ||||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- | ||||||
| ARI8EC62EE1750CC7AD55DE51A907D2F66D | (left Rear, Right Front) |
|
- | ||||||
| ARIA12C7E5D311C54B1AACBC1820DF34957 | (right Front) |
|
- | ||||||
| W11171119 | Element (1200w) (Replaces: 8273994) |
|
Immediately | $ 213.20 | |||||
| W10911303 | Switch, Infinite (Replaces: W10578768) |
|
Immediately | $ 108.94 | |||||
| W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 67.76 | |||||
| W11848053 | Switch, Infinite (Replaces: W11769055) |
|
- | ||||||
| W11844196 | Harness, Main (Replaces: W11653120) |
|
- | ||||||
| W11172418 | Harness, Console |
|
Immediately | $ 212.10 |
