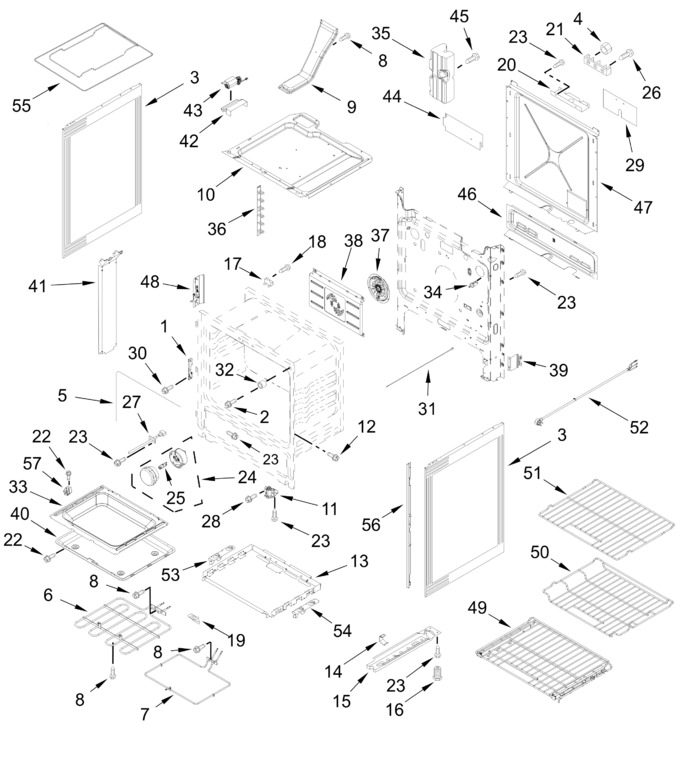

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10634238 | Hinge, Receiver |
|
$ 69.53 | |||||
| 2 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 3 | W11730303 | Panel, Side (black) (Replaces: W11445467) |
|
Immediately | $ 160.65 | ||||
| 4 | 7103P02760 | Nut |
|
- | |||||
| 5 | W11562931 | Gasket, Door (Replaces: W11491752) |
|
Immediately | $ 80.50 | ||||
| 6 | W11238400 | Element, Broil (Replaces: W10544952) |
|
Immediately | $ 111.69 | ||||
| 7 | W10779716 | Element, Bake (Replaces: W10774342) |
|
Immediately | $ 68.47 | ||||
| 8 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 13.25 | ||||
| 9 | W11122085 | Flue, Assembly |
|
$ 106.54 | |||||
| 10 | W10289168 | Box, Burner Si |
|
$ 184.41 | |||||
| 11 | WPW10341186 | Front Foot Assembly (Replaces: W10341186) |
|
Immediately | $ 29.33 | ||||
| 12 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 7.47 | |||||
| 13 | W10541959 | Shield, Bake |
|
Immediately | $ 197.70 | ||||
| 14 | W10137382 | Clip, Panel |
|
Immediately | $ 43.58 | ||||
| 15 | W11818353 | Base Rail Assembly (left) (Replaces: W10390008) |
|
Immediately | $ 56.39 | ||||
| 16 | WPW10058460 | Foot, Leveling (rear) (Replaces: W10058460) |
|
Immediately | $ 7.42 | ||||
| 17 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 45.09 | ||||
| 18 | 3196172 | Screw |
|
Immediately | $ 12.12 | ||||
| 19 | W10035900 | Support, Oven Bottom |
|
$ 12.92 | |||||
| 20 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 21 | W11736123 | Block, Terminal (without Ground Strap) (Replaces: W11750818) |
|
Immediately | $ 14.52 | ||||
| 22 | W10516115 | Screw |
|
$ 13.07 | |||||
| 23 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 24 | W11707255 | Light Assembly (Replaces: W11634772) |
|
Immediately | $ 38.51 | ||||
| 25 | WPW10571723 | Bulb, Halogen (40 Watts) (Replaces: W10571723) |
|
Immediately | $ 26.18 | ||||
| 26 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.55 | |||||
| 27 | W10833885 | Sensor (Replaces: W10586204) |
|
Immediately | $ 150.90 | ||||
| 28 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 29 | W10655441 | Shield, Power Cord |
|
$ 129.92 | |||||
| 30 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 31 | W11370463 | Rod, Door Switch (Replaces: W10273192) |
|
Immediately | $ 60.18 | ||||
| 32 | W10877054 | Spacer, Door (Replaces: 9758701) |
|
Immediately | $ 50.45 | ||||
| 33 | W11844172 | Bottom, Oven (Replaces: W11842285) |
|
- | |||||
| 34 | W11620712 | Switch, Door (Replaces: W11511828) |
|
$ 41.68 | |||||
| 35 | W11217187 | Counterweight (Replaces: W10914589) |
|
$ 30.56 | |||||
| 36 | W10603482 | Rack, Ladder |
|
$ 402.53 | |||||
| 37 | W11414552 | Convection, Assembly (element Included) (Replaces: W11353932) |
|
Immediately | $ 233.45 | ||||
| 38 | W11844197 | Baffle, Full Convection (Replaces: W11842270) |
|
- | |||||
| 39 | W10273002 | Bracket, Oven Support |
|
$ 68.71 | |||||
| 40 | W11379357 | Bake Pan |
|
Immediately | $ 74.57 | ||||
| 41 | W10162255 | Duct, Cover |
|
$ 26.25 | |||||
| 42 | W10162254 | Duct, Cooling |
|
$ 121.01 | |||||
| 43 | W11620737 | Cooling Fan (Replaces: W11467246) |
|
Immediately | $ 208.82 | ||||
| 44 | W11117035 | Shield, Wire |
|
$ 79.34 | |||||
| 45 | W11135756 | Screw (Replaces: W11034869) |
|
$ 13.26 | |||||
| 46 | W10162248 | Cover, Wire |
|
$ 133.37 | |||||
| 47 | W11379354 | Cover, Back |
|
Immediately | $ 70.01 | ||||
| 48 | W10605411 | Receiver, Slow Close Hinge |
|
$ 275.14 | |||||
| 49 | W11225131 | Rack, Sliding (Replaces: W10911366) |
|
Immediately | $ 304.75 | ||||
| 50 | W11256463 | Rack, Maximum Capacity (Replaces: W10554006) |
|
Immediately | $ 125.23 | ||||
| 51 | W11699908 | Rack, Heavy Duty (Replaces: W10554005) |
|
$ 129.45 | |||||
| 52 | W11226497 | Cord, Power (Replaces: W10624592) |
|
Immediately | $ 99.50 | ||||
| 53 | W10828883 | Bracket, Panel (left) |
|
$ 70.52 | |||||
| 54 | W10828882 | Bracket, Panel (right) |
|
$ 70.52 | |||||
| 55 | W11692811 | Basket, Airfry (Replaces: W11661815) |
|
Immediately | $ 105.92 | ||||
| 56 | W11510561 | Barrier Rail, Rubber (front Left) |
|
$ 67.38 | |||||
| 57 | W11025100 | Grommet (Replaces: W10645947) |
|
Immediately | $ 11.84 | ||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11688730 | Insulation, Bottom (Replaces: W10575374) |
|
Immediately | $ 71.98 | |||||
| W11794987 | Insulation, Back (Replaces: W11769075) |
|
- | ||||||
| W11818353 | Base Rail Assembly (right) (Replaces: W10390007) |
|
Immediately | $ 56.39 | |||||
| W11688567 | Insulation, Wrap (Replaces: W10289173) |
|
$ 115.21 | ||||||
| W11510562 | Barrier Rail, Rubber (front Right) |
|
$ 67.38 | ||||||
| 7111P01760 | Clamp, Wire |
|
- | ||||||
| 4820F01559 | Insulation, Strap |
|
- |
