Diagram # Part Number Description Series Availability Ships Price Add to Cart
21 M0227217 Screw, Sm Appelez-nous -
31 10513302 Tube, Drain Appelez-nous -
41 M0102303 Clamp Appelez-nous -
51 10585508 Hinge,(w)btm-e Ct Appelez-nous -
61 10447907 Shim,btm Hinge Appelez-nous -
111 A3076901 Plug-button Special Order $ 5.70

121 10584802 Cover, Lower Hinge (white) Appelez-nous -
131 10450701 Roller, Rear Special Order $ 28.91

141 10450901 Axle, Roller Appelez-nous -
151 WP67006715 Screw, Sm   (Replaces: M0241508) Special Order $ 7.55

161 M0204336 Screw, Adj Roller Appelez-nous -
171 12452601Q Assy, Roller Bracket Appelez-nous -
181 M0260242 Screw, Tf Appelez-nous -
191 W11573574 Screw, Sm   (Replaces: M0211031) In-Stock Immediately $ 14.72

201 12403608 Insulation, Sound Appelez-nous -
251 10427112 Brace Appelez-nous -
351 W11177593 Brake, Foot   (Replaces: 10354001) Special Order $ 12.18

531 M0310342 Plug, Button (wht) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

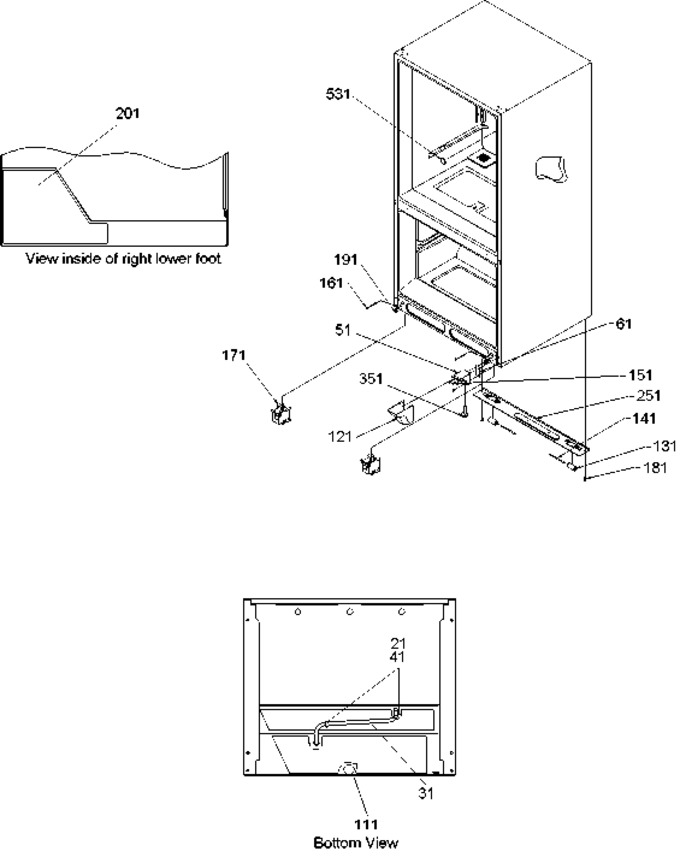

Diagram for BX521VW (BOM: P1325033W W)
