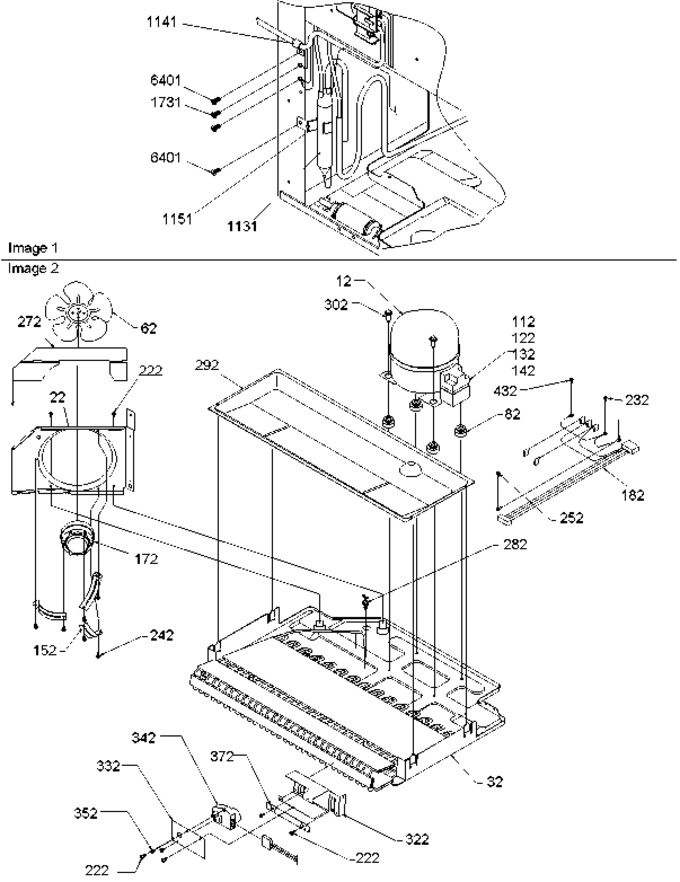

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	W10309997		Compressor Tc Tpa1410y   (Replaces: 12049713)				$ 583.93
22	10426911		Cond Fan Shrd-e Ct		Appelez-nous	-
32	10481220		Assy, Cond Pan		Appelez-nous	-
62	B5742604		Blade, Fan		Appelez-nous	-
82	WPW10169124		Grommet, Compressor   (Replaces: 10835901)			Immediately	$ 7.55
112	10377019		Overload- 4tm		Appelez-nous	-
122	10097206		Relay		Appelez-nous	-
132	10958303		Capacitor		Appelez-nous	-
142	10757301		Cover, Terminal		Appelez-nous	-
152	10582501		Bracket, Cond. Motor		Appelez-nous	-
172	10884505		Motor, Condensor		Appelez-nous	-
182	12504302		Harness, Mc		Appelez-nous	-
222	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 8.25
232	WP489399		Screw, Ca   (Replaces: M0239216)				$ 7.30
242	M0223816		Screw, Tr				$ 5.27
252	M0253916		Screw		Appelez-nous	-
272	10442702		Gasket, Cond. Fan		Appelez-nous	-
282	B5667304		Wire Clip		Appelez-nous	-
292	10427405		Pan, Drain		Appelez-nous	-
302	M0221523		Screw, Shldr		Appelez-nous	-
322	10503201		Brkt, Timer		Appelez-nous	-
332	12515801		Cover, Timer Brkt		Appelez-nous	-
342	10129307		Kit, Defrost Timer (230 Vac)		Appelez-nous	-
352	M0216705		Screw				$ 5.81
372	10542701		Washer, Brkt		Appelez-nous	-
432	12992301		Screw, Tf   (Replaces: M0231604)				$ 7.32
1131	WPB2150504		Drier   (Replaces: B2150504)				$ 136.98
1141	M0102325		Clamp		Appelez-nous	-
1151	10547001		Clip, Drier		Appelez-nous	-
1731	WP489399		Screw, Ca   (Replaces: M0239216)				$ 7.30
6401	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
