Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 D7539413 Cover Ht. Exh Appelez-nous -
2 WP489069 Screw   (Replaces: M0220617) In-Stock Immediately $ 8.40

3 M0103902 Clamp, Speed Appelez-nous -
4 M0310319 Plug Button Appelez-nous -
5 M0253916 Screw Appelez-nous -
6 WP12990527 Screw   (Replaces: M0219916) In-Stock Immediately $ 8.76

7 M0102325 Clamp Appelez-nous -
8 D7663301 Cover, Wiring Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

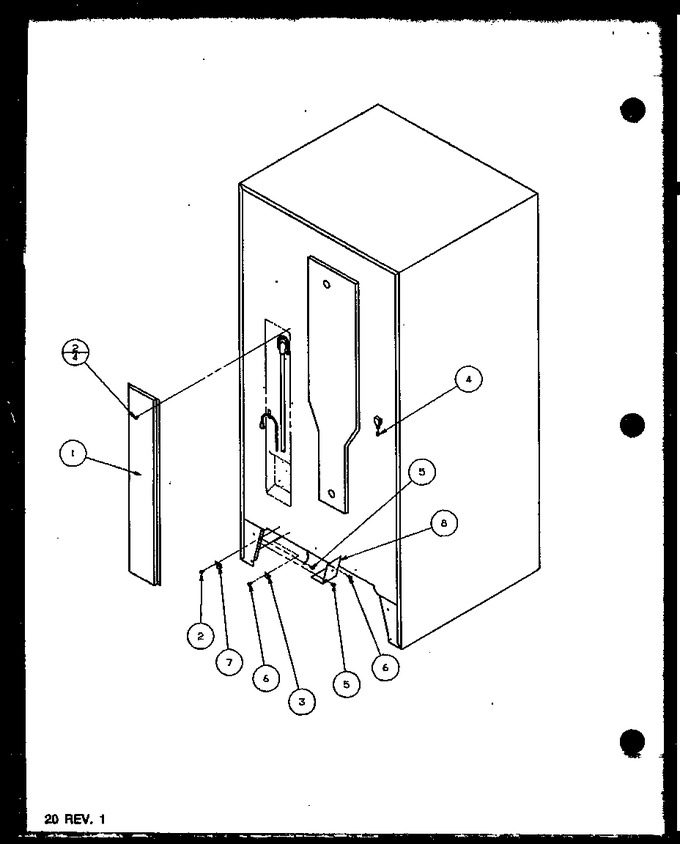

Diagram for BZ22QW (BOM: P1153002W W)
