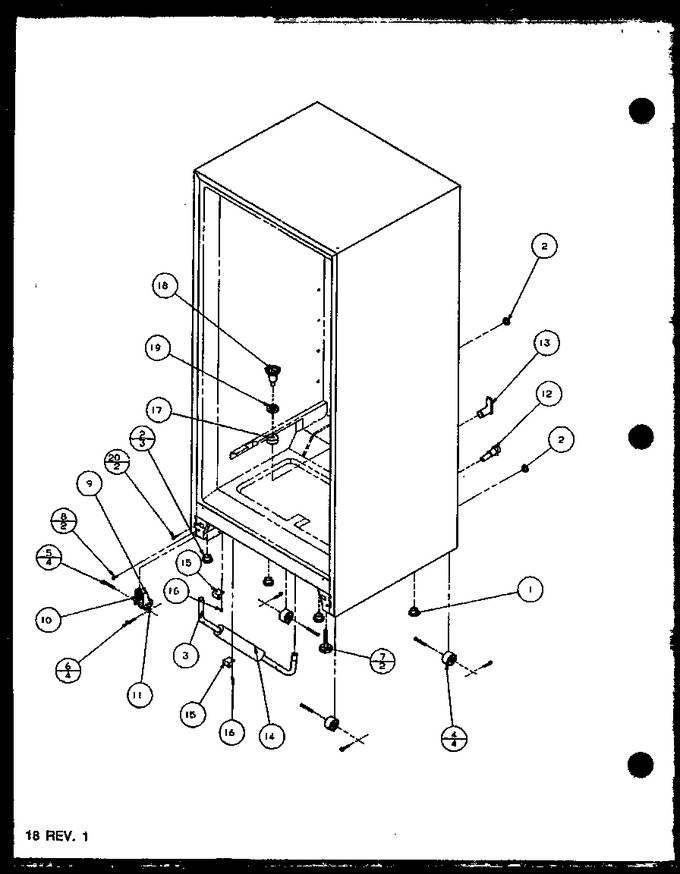

02 - Cabinet Bottom And Back


03 - Cabinet Interior


04 - Compressor Compartment


05 - Control And Lamps


06 - Divider And Evap


07 - Fz Door


08 - Ref Door


09 - Ref Door And Trim Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A3076901		Plug-button				$ 5.70
2	A3080001		Plug, Button (blk)		Appelez-nous	-
3	10388701		Drain Tube		Appelez-nous	-
4	M0520102		Roller		Appelez-nous	-
5	M1200202		Pin K		Appelez-nous	-
6	M1200004		Cotter Pin K		Appelez-nous	-
7	W11177593		Brake, Foot   (Replaces: 10354001)				$ 11.60
8	M0204339		Screw Bolt K		Appelez-nous	-
9	C8742401		Assy, Roller Bracket		Appelez-nous	-
10	M0286708		Nut, Speed				$ 45.57
11	M1205302		Rivet				$ 5.85
12	10277305		Fill Tube Assy		Appelez-nous	-
13	B5749501		Tunnel-heat Ex		Appelez-nous	-
14	A0329814		Tubing Insulation By Inch		Appelez-nous	-
15	M0102303		Clamp		Appelez-nous	-
15	10161301		Holder Tube		Appelez-nous	-
16	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 7.86
17	WPB8381501		Gasket, Drain Tube   (Replaces: B8381501)				$ 7.41
18	W10815413		Funnel, Drain   (Replaces: D7753901)			Immediately	$ 49.05
19	WPM0500703		Seal, O Ring   (Replaces: M0500703)				$ 10.92
20	WP67006715		Screw   (Replaces: M0233847)				$ 7.19
NI	C8956101		Assy, Roller Bracket		Appelez-nous	-
