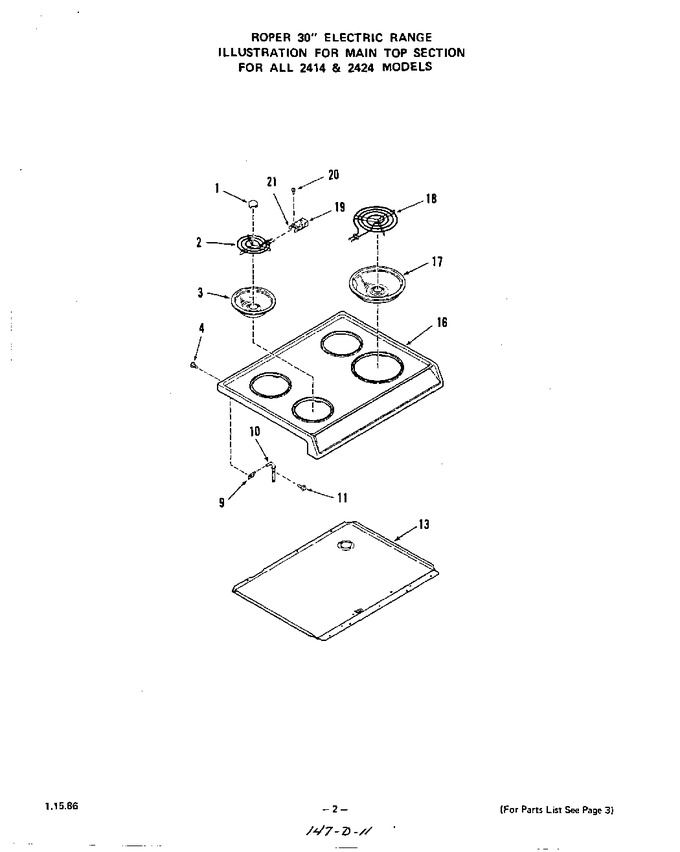

03 - Main Top


04 - Canning Element , Griddle


05 - Body


06 - Oven Door


07 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318586		Medallion		Appelez-nous	-
2	325507		6`` Surface Unit-lt., Rt. Rear & Lt. Front		Appelez-nous	-
3	WPW10196406		6`` Chrome Bowl-lt., Rt. Rear & Lt. Front   (Replaces: 296481)			Immediately	$ 12.05
4	326974		Screw 10abx1/2``		Appelez-nous	-
9	320931		Bracket-mian Top Hinge (lt. Or Rt.)		Appelez-nous	-
10	320921		Right		Appelez-nous	-
10	320922		Left		Appelez-nous	-
11	321162		Screw 10-32 X 3/4``		Appelez-nous	-
13	331590		24142a & 24241a Models		Appelez-nous	-
13	326062		24140a & 1a, 24240a Models		Appelez-nous	-
16	326524		Almond		Appelez-nous	-
16	328349		Toast		Appelez-nous	-
16	326523		White		Appelez-nous	-
16	328624		Platinum		Appelez-nous	-
17	WPW10196405		8`` Chrome Bowl (rt. Front)   (Replaces: 304969)			Immediately	$ 15.56
18	325503		8`` Surface Unit-rt. Front		Appelez-nous	-
19	330031		Terminal Block W/wire Lead (4 Req)   (Replaces: 318960)			Immediately	$ 17.93
20	299632		Screw 7-32x5/16``		Appelez-nous	-
21	318872		Bracket-terminal Block (4 Req)		Appelez-nous	-
