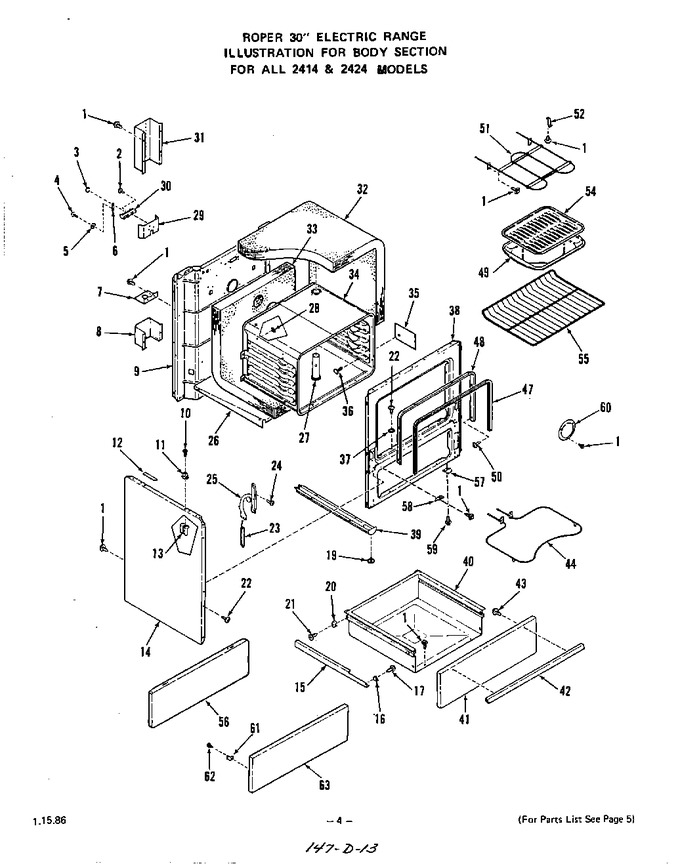

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327320		Screw 10-16x7/16``		Appelez-nous	-
2	313190		Screw 10-32x1``		Appelez-nous	-
3	97816		Hex Nut 10-32		Appelez-nous	-
4	313191		Screw 10-32x7/16``		Appelez-nous	-
5	299425		Washer		Appelez-nous	-
6	327255		Ground Strap		Appelez-nous	-
7	327259		Range Service Mounting Plate		Appelez-nous	-
8	327258		Wire Shield-lower		Appelez-nous	-
9	325879		Main Back		Appelez-nous	-
10	327256		Screw 6-32x7/8``		Appelez-nous	-
11	326513		Strike-main Top (lt. Or Rt.)		Appelez-nous	-
12	326914		Spacer-main Top (lt. Or Rt.)		Appelez-nous	-
13	326516		Bracket-body Side (lt. Or Rt.)		Appelez-nous	-
14	327939		Platinum		Appelez-nous	-
14	326055		White		Appelez-nous	-
14	326059		Almond		Appelez-nous	-
14	327940		Toast		Appelez-nous	-
15	311441		Support-storage Drawer (lt. Or Rt.) - All 2424 Models		Appelez-nous	-
16	281914		Slide Block-front (lt. Or Rt.) - All 2424 M		Appelez-nous	-
17	295849		Screw 10-32x17/32`` - All 2424 Models		Appelez-nous	-
18	327320		Screw 10-16x7/16``-all 2424 Models		Appelez-nous	-
19	326052		Leg Levelers (4 Req)		Appelez-nous	-
20	281913		Slide Block-rear (lt. Or Rt.)-all 2424 M.		Appelez-nous	-
21	DE81-02123A		Screw 8 - 32 X 3/8`` - All 2424 Models   (Replaces: 102563)				$ 1.66
22	326974		Screw 10abx1/2``		Appelez-nous	-
23	326961		Spring-oven Door (lt. Or Rt.)		Appelez-nous	-
24	331704		Screw		Appelez-nous	-
25	326013		Left		Appelez-nous	-
25	326012		Right		Appelez-nous	-
26	313281		Insulation Retainer-lower		Appelez-nous	-
27	326584		Vent Tube		Appelez-nous	-
28	115533		Thermostat Bulb Clip (2 Req)		Appelez-nous	-
29	327242		Insulator-service Cord		Appelez-nous	-
30	290105		Junction Block		Appelez-nous	-
31	327235		Wire Shield-upper		Appelez-nous	-
32	326040		Insulation-oven Top & Sides (1 Piece)		Appelez-nous	-
33	326049		Insulation-oven Back & Bottom (1 Piece)		Appelez-nous	-
34	331583		24142a & 24241a Models		Appelez-nous	-
34	325771		24140a & 1a, 24240a Models		Appelez-nous	-
35	327887		Insulation Retainer-rt. Or Lt.		Appelez-nous	-
36	296097		Button Dart (2 Req)		Appelez-nous	-
37	21067		Washer		Appelez-nous	-
38	332687		24142a & 24241a Models		Appelez-nous	-
38	326046		24140a & 1a, 24241a Models		Appelez-nous	-
39	326050		Base W/levelers (lt. Or Rt.)		Appelez-nous	-
40	296150		Storage Drawer-all 2424 Models		Appelez-nous	-
41	328355		Platinum		Appelez-nous	-
41	326073		White		Appelez-nous	-
41	326077		Almond		Appelez-nous	-
41	328347		Toast		Appelez-nous	-
42	292240		Handle-storage Drawer-all 2424 Models		Appelez-nous	-
43	295850		Screw 10 - 32 X 7/16``		Appelez-nous	-
44	WG02F05414		Bake Element   (Replaces: 325883)			Immediately	$ 111.99
47	326047		Oven Door Seal		Appelez-nous	-
48	327875		Retainer-oven Door Seal		Appelez-nous	-
49	293098		24140a & 1a, 24240a Models		Appelez-nous	-
49	331592		24142a & 24241a Models		Appelez-nous	-
50	69014		Screw 10abx1/2``		Appelez-nous	-
51	326360		Broil Element		Appelez-nous	-
52	324808		Support-broil Element		Appelez-nous	-
54	326297		24142a & 24241a Models		Appelez-nous	-
54	293099		24140a & 1a, 24240a Models		Appelez-nous	-
55	326068		2 Req. All 2424 Models		Appelez-nous	-
56	329570		Almond		Appelez-nous	-
56	329566		White		Appelez-nous	-
57	331121		Support-lo Frt. Pnl (24142a Models)		Appelez-nous	-
58	331122		Catch-lo Frt. Pnl (24142a Models)		Appelez-nous	-
59	WP112432		Screw 10-32x7/16`` (24142a Models)   (Replaces: 311484)				$ 7.77
60	326935		Cover-oven Light		Appelez-nous	-
61	112948		Clip (4 Req)-all 24140a & 1a Models		Appelez-nous	-
62	102429		Screw 10 - 32 X 3/8`` - All 24140a & 1a Mod.		Appelez-nous	-
63	326429		White		Appelez-nous	-
63	326433		Almond		Appelez-nous	-
