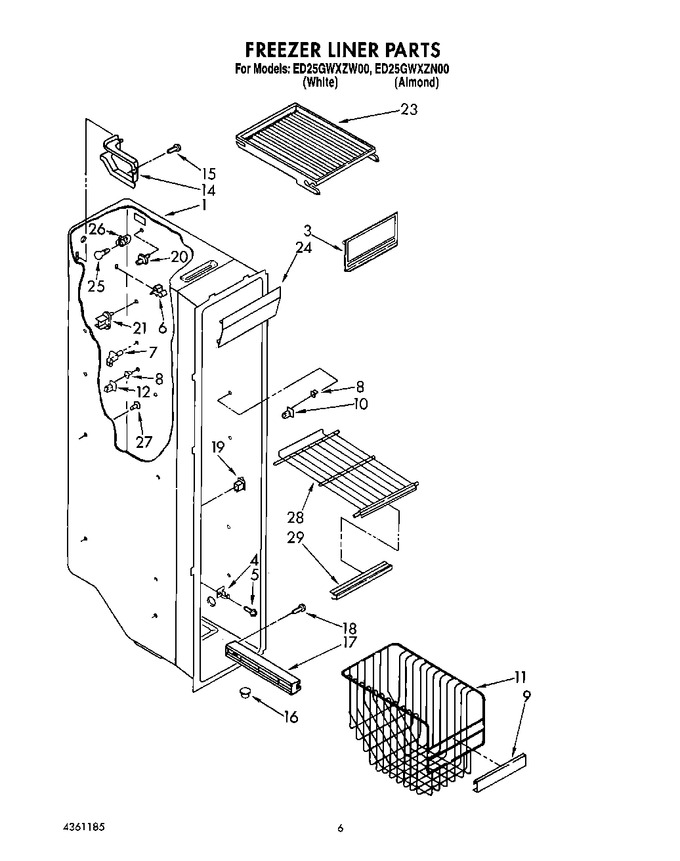

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
3	2148822		Door, Ice Compartment		Appelez-nous	-
4	1108436		Evaporator, Support		Appelez-nous	-
5	486214		Screw, 8 X 1/2		Appelez-nous	-
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.42
7	1115317		Support, Stud (4)		Appelez-nous	-
8	946355		Support Stud (8)		Appelez-nous	-
9	2148314		Trim, Basket		Appelez-nous	-
10	946356		Stud, Front (3)		Appelez-nous	-
11	2152090		Basket, Slope		Appelez-nous	-
12	1106982		Stud, Rear (3)		Appelez-nous	-
14	1114607		Wiring Cover		Appelez-nous	-
15	WP488729		Screw   (Replaces: 489176)			Immediately	$ 7.79
16	942768		Fitting, Drain		Appelez-nous	-
17	1126354		Shelf Track (right Side)		Appelez-nous	-
17	1126355		Shelf Track (left Side)		Appelez-nous	-
18	W11693756		Screw   (Replaces: 487042)			Immediately	$ 14.06
19	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 38.18
20	4388538		Stud (4)   (Replaces: 1110718)			Immediately	$ 31.34
21	1115386		Stud, Shelf (4)		Appelez-nous	-
23	1118294		Shelf, Top Compartment		Appelez-nous	-
24	1115389		Light Lens		Appelez-nous	-
25	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
26	4387478		Light Socket   (Replaces: 851067)			Immediately	$ 110.16
27	1110779		Grommet (8)		Appelez-nous	-
28	1116956		Shelf		Appelez-nous	-
29	1120547		Trim, Shelf (3)		Appelez-nous	-
