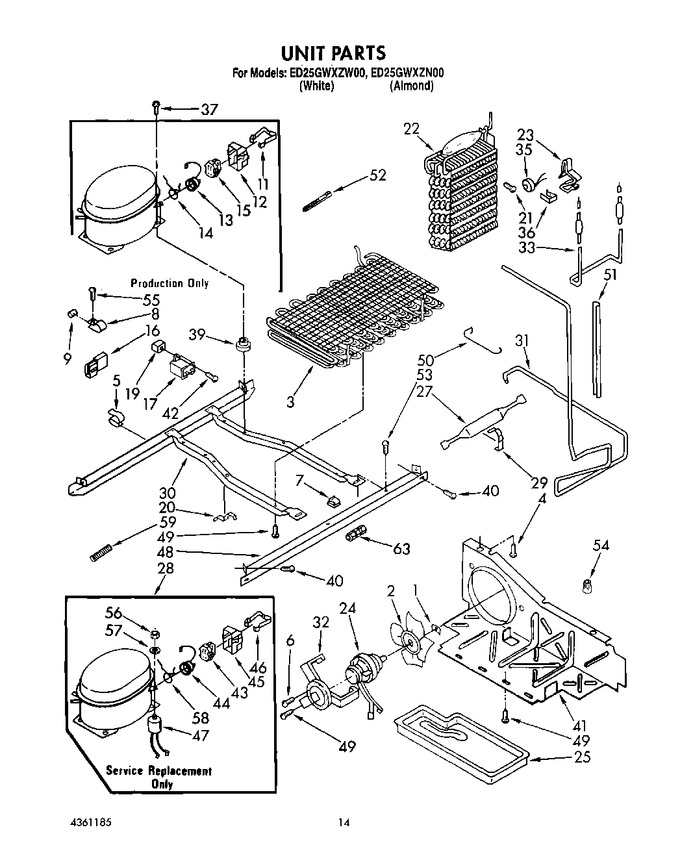

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 489018)				$ 7.82
2	1108179		Fan, Blade				$ 49.54
3	1105640		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489337)			Immediately	$ 7.83
5	548745		Clip, Wire (2)		Appelez-nous	-
6	681390		Screw, 8-32 X 3/8   (Replaces: 489019)				$ 13.06
7	934011		Clip, Water Line (3)		Appelez-nous	-
8	510716		Tube Clamp		Appelez-nous	-
9	510769		Dampener		Appelez-nous	-
11	943322		Spring, Relay Case		Appelez-nous	-
12	1105055		Case, Relay		Appelez-nous	-
13	2154408		Overload		Appelez-nous	-
14	943320		Overload Spring		Appelez-nous	-
15	N/A		Relay (order Overload To Obtain Relay)		Appelez-nous	-
16	1118850		Housing Plug		Appelez-nous	-
17	WPW10662129		Running, Capacitor   (Replaces: 1114291)			Immediately	$ 58.86
19	509812		Screw Grommet		Appelez-nous	-
20	548744		Clip, Unit Cover (2)		Appelez-nous	-
21	WP489478		Screw   (Replaces: 489242)				$ 7.75
22	1110668		Evaporator		Appelez-nous	-
23	1108431		Clamp (4)		Appelez-nous	-
24	833697		Fan Motor   (Replaces: 2149963)			Immediately	$ 88.15
25	1110674		Tray, Evaporator		Appelez-nous	-
27	W10843121		Drier   (Replaces: 1105550)			Immediately	$ 52.57
28	4317962		Compressor (includes Items 43, 44, 45, 46, 47, 56, 57 & 58) (also Order 876765 Tube Kit)		Appelez-nous	-
29	1127590		Clamp, Dryer		Appelez-nous	-
30	2304904		Unit Mounting Frame   (Replaces: 1127934)		Appelez-nous	-
31	1114662		Exchanger, Heat		Appelez-nous	-
32	548695		Fan, Motor Bracket		Appelez-nous	-
33	2154543		Heater, Defrost		Appelez-nous	-
35	WP4387499		Bimetal, Defrost   (Replaces: 2154544)				$ 120.86
36	513584		Clamp		Appelez-nous	-
37	876811		Screw, 1/4-28 X 1   (Replaces: 489373)				$ 7.42
39	876811		Grommet (4)   (Replaces: 1100826)				$ 7.42
40	489340		Screw		Appelez-nous	-
41	W10896764		Baffle, Air   (Replaces: 2149128)				$ 96.38
42	W11693756		Screw, 8 X 5/8   (Replaces: 488687)			Immediately	$ 14.06
43	WP2262181		Relay   (Replaces: 1108143)				$ 122.65
44	WP2154697		Overload   (Replaces: 2154697)				$ 130.73
45	1108115		Cover		Appelez-nous	-
46	938384		Strap		Appelez-nous	-
47	WPW10662129		Capacitor   (Replaces: 1118581)			Immediately	$ 58.86
48	2305374		Unit Mounting Rail   (Replaces: 1127906)				$ 80.64
49	488624		Screw		Appelez-nous	-
50	1110663		Guard, Fan		Appelez-nous	-
51	1114634		Sleeve		Appelez-nous	-
52	851095		Strap		Appelez-nous	-
53	WP489427		Screw (2)   (Replaces: 489339)				$ 7.47
54	227991		Wire Connector		Appelez-nous	-
55	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488649)				$ 21.16
56	489142		Nut		Appelez-nous	-
57	489143		Washer		Appelez-nous	-
58	1114190		Overload Spring		Appelez-nous	-
59	983659		Spring, Tube Forming		Appelez-nous	-
63	876764		Valve, Access(3/16``)			Immediately	$ 91.35
63	978028		Valve, Access (1/2)		Appelez-nous	-
63	978029		Valve Access (5/8``)				$ 93.85
63	978030		Valve, Access (3/4``)				$ 130.71
63	WP4211117		Union   (Replaces: 2150347)				$ 9.96
63	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
63	978026		Valve, Access (5/16``)			Immediately	$ 128.09
63	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
