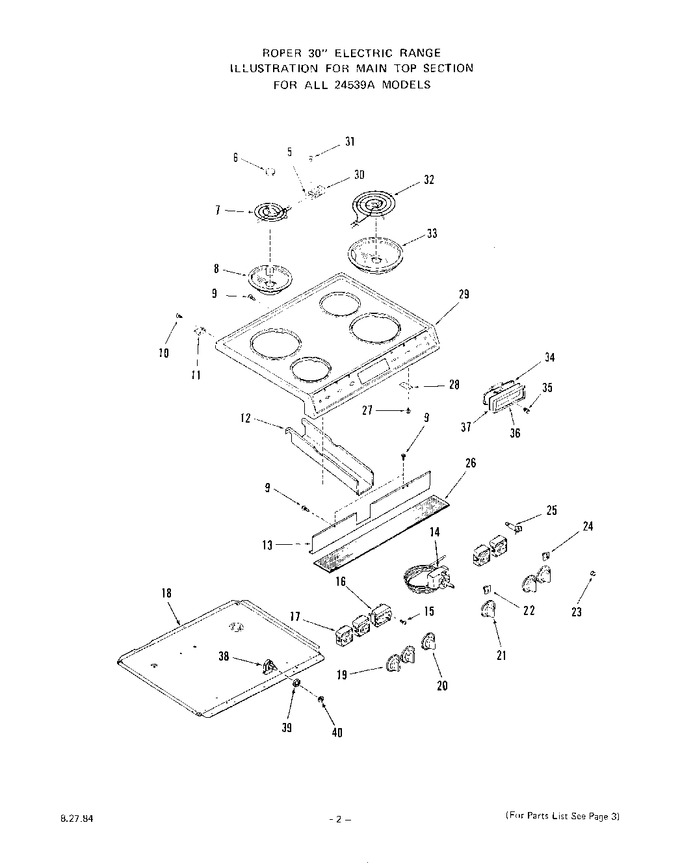

03 - Main Top
04 - Heavy Duty Canning Element , Griddl
05 - Body
06 - Oven Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 318872 | Bracket-terminal Block |
|
- | |||||
| 6 | 318579 | Medallion (4 Required) |
|
- | |||||
| 7 | 318580 | 6`` Surface Element (lt. Front & Rt. Rear) |
|
- | |||||
| 8 | WPW10196406 | 6`` Chrome Bowl-lt., Rt. Rear & Lt. Front (Replaces: 296481) |
|
Immediately | $ 12.05 | ||||
| 9 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 10 | 326974 | Screw 10abx1/2`` |
|
- | |||||
| 11 | 301672 | Retainer-main Top (2 Required) |
|
- | |||||
| 12 | W10311986 | Wire Cover-main Top (Replaces: 302109) |
|
Immediately | $ 169.33 | ||||
| 13 | 306571 | Wire Cover-controls |
|
- | |||||
| 14 | 320938 | Oven Thermostat |
|
- | |||||
| 15 | 78565 | Screw 8-32x3/16`` (2 Ea. For Keys 14, 16 & 17) |
|
- | |||||
| 16 | 320927 | Selector Switch |
|
- | |||||
| 17 | 5500-200 | Infinite Control Switch (4 Required) (Replaces: 320944) |
|
Immediately | $ 54.85 | ||||
| 18 | 326359 | Burner Box Bottom |
|
- | |||||
| 19 | 322966 | Knob-infinite Control Switch (4 Required) |
|
$ 44.69 | |||||
| 20 | 326947 | Knob-selector Switch |
|
- | |||||
| 21 | 326671 | Knob-oven Thermostat |
|
- | |||||
| 22 | 301774 | I.d.-button (oven & Selector) |
|
- | |||||
| 23 | 325677 | Lens-indicator Light |
|
- | |||||
| 24 | 301772 | I.d.-button (infinite Switch) |
|
- | |||||
| 25 | 326871 | Oven |
|
- | |||||
| 25 | 323228 | Surface |
|
- | |||||
| 26 | 327049 | Insulation-corrugated |
|
- | |||||
| 27 | 239113 | Screw 10-32x3/8`` |
|
- | |||||
| 28 | 302360 | Strap-hold Down (2 Required) |
|
- | |||||
| 29 | 329261 | White |
|
- | |||||
| 29 | 329262 | Almond |
|
- | |||||
| 30 | 330031 | Terminal Block W/wire Lead (Replaces: 318960) |
|
Immediately | $ 17.93 | ||||
| 31 | 299632 | Screw 7-32x5/16`` |
|
- | |||||
| 32 | 318582 | 8`` Surface Element (rt. Front & Lt. Rear) |
|
- | |||||
| 33 | WPW10196405 | 8`` Burner Bowl-rt. Front & Lt. Rear (Replaces: 304969) |
|
Immediately | $ 15.56 | ||||
| 34 | 324088 | Clock W/4 Hr. Timer |
|
- | |||||
| 35 | 109225 | Knob-clock (start & Stop Time) |
|
- | |||||
| 36 | 293498 | Bezel-clock |
|
- | |||||
| 37 | 298767 | Glass-clock |
|
- | |||||
| 38 | 298793 | Push Switch |
|
- | |||||
| 39 | 236129 | Pal Nut |
|
- | |||||
| 40 | 87403 | Knurled Nut |
|
- |
