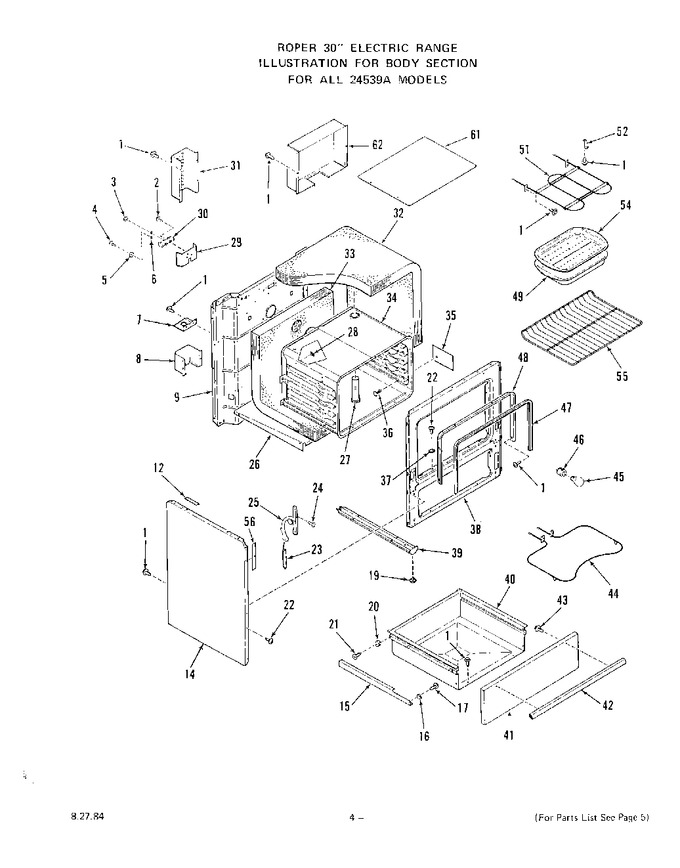

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327320		Screw 10-16x7/16``		Appelez-nous	-
2	313190		Screw 10-32x1``		Appelez-nous	-
3	97816		Hex Nut 10-32		Appelez-nous	-
4	313191		Screw 10-32x7/16``		Appelez-nous	-
5	299425		Washer		Appelez-nous	-
6	327255		Ground Strap		Appelez-nous	-
7	327259		Range Service Mounting Plate		Appelez-nous	-
8	327258		Wire Shield-lower		Appelez-nous	-
9	325879		Main Back		Appelez-nous	-
12	326914		Spacer-main Top (lt. Or Rt.)		Appelez-nous	-
14	326055		White		Appelez-nous	-
14	326059		Almond		Appelez-nous	-
15	311441		Support-storage Drawer (lt. Or Rt.)		Appelez-nous	-
16	281914		Slide Block-front (lt. Or Rt.)		Appelez-nous	-
17	295849		Screw 10-32x17/32``		Appelez-nous	-
19	326052		Leg Leveler (4 Req)		Appelez-nous	-
20	281913		Slide Block-rear (lt. Or Rt.)		Appelez-nous	-
21	DE81-02123A		Screw 8 - 32 X 3/8``   (Replaces: 102563)				$ 1.66
22	316849		Screw-10-32x1/2``		Appelez-nous	-
23	326962		Spring-oven Door (lt. Or Rt.)		Appelez-nous	-
24	112013		Screw 10-32 X 5/8``		Appelez-nous	-
25	326013		Left		Appelez-nous	-
25	326012		Right		Appelez-nous	-
26	313281		Insulation Retainer-lower		Appelez-nous	-
27	326584		Vent Tube		Appelez-nous	-
28	115533		Thermostat Bulb Clip (2 Req)		Appelez-nous	-
29	327242		Insulator-service Cord		Appelez-nous	-
30	290105		Junction Block		Appelez-nous	-
31	327235		Wire Shield-upper		Appelez-nous	-
32	326040		Insulation-oven Top & Sides (1 Piece)		Appelez-nous	-
33	326049		Insulation-oven Back & Bottom (1 Piece)		Appelez-nous	-
34	325772		Oven Body		Appelez-nous	-
35	326768		Insulation Retainer-rt. Or Lt.		Appelez-nous	-
36	296097		Button Dart (2 Req)		Appelez-nous	-
37	21067		Washer		Appelez-nous	-
38	326042		Front Frame		Appelez-nous	-
39	326050		Base W/levelers (lt. Or Rt.)		Appelez-nous	-
40	296150		Storage Drawer		Appelez-nous	-
41	326077		Almond		Appelez-nous	-
41	326073		White		Appelez-nous	-
42	292240		Handle-storage Drawer		Appelez-nous	-
43	295850		Screw 10 - 32 X 7/16``		Appelez-nous	-
44	WG02F05414		Bake Element   (Replaces: 325883)			Immediately	$ 111.99
45	DA96-01243C		Oven Lamp Bulb   (Replaces: 111257)				$ 144.00
46	87883		Holder-oven Lamp Bulb		Appelez-nous	-
47	326293		Oven Door Seal		Appelez-nous	-
48	327875		Retainer-oven Door Seal		Appelez-nous	-
49	293098		Broiler Pan		Appelez-nous	-
51	326360		Broiler Element		Appelez-nous	-
52	324808		Support-broiler Element		Appelez-nous	-
54	293099		Broiler Pan Grid		Appelez-nous	-
55	326068		Oven Rack (2 Req)		Appelez-nous	-
56	327378		Stiffener-body Side (lt. Or Rt.)		Appelez-nous	-
61	319163		Liner-oven Bottom		Appelez-nous	-
62	326495		Wire Shield		Appelez-nous	-
