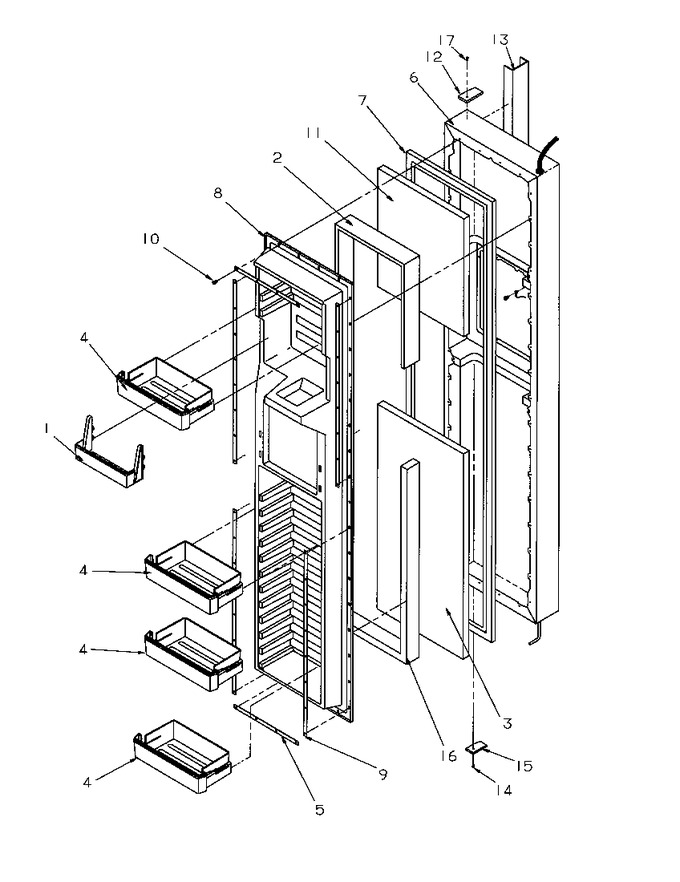

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10525511		Shelf, Frz Dr		Appelez-nous	-
2	B0523562		Insul. By The Ft.		Appelez-nous	-
3	12016902		Insul, Batt (ref. Door)		Appelez-nous	-
4	10521705		Bucket, Frz Dr		Appelez-nous	-
5	C8982801		Retainer, Door Liner		Appelez-nous	-
6	10881407L		Ass`y, Fz Dr Foam		Appelez-nous	-
7	10359702		Gasket (w Frz Dr)		Appelez-nous	-
8	10860902		Liner, Frz Door		Appelez-nous	-
9	D7828601		Retainer, Door Liner		Appelez-nous	-
10	M0219730		Screw				$ 7.65
11	12016901		Insul, Batt (ref. Door)		Appelez-nous	-
12	C8878902		End Cap, Handle		Appelez-nous	-
13	12106702		Handle, Door (almond)		Appelez-nous	-
14	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 7.82
15	C8878901		End Cap, Handle		Appelez-nous	-
16	876370		Insulation Bott (1= 1ft)   (Replaces: B0523588)				$ 231.56
17	8169479		Screw   (Replaces: M0215318)				$ 6.95
