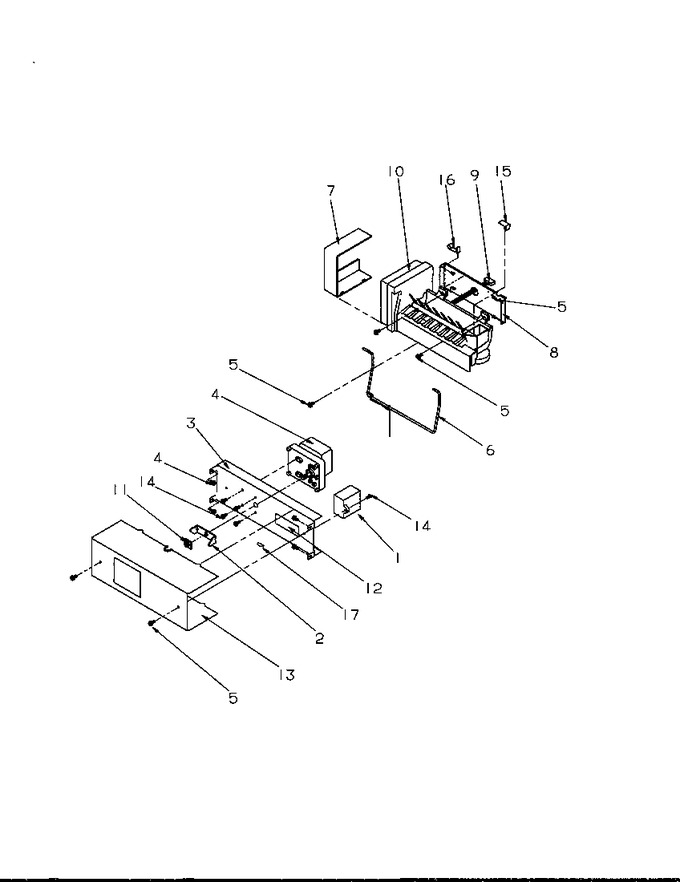

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10613606		Capacitor   (Replaces: C8931605)			Immediately	$ 86.59
2	10114901		Driver (ice Maker)				$ 1.61
3	D7749205		Support,auger Motor		Appelez-nous	-
4	10114804		Kit, Auger Motor		Appelez-nous	-
5	67006425		Screw, Sm   (Replaces: M0209616)			Immediately	$ 6.95
6	D7877001		Arm,ice Maker Shut Off		Appelez-nous	-
7	D7820401		Cover Im		Appelez-nous	-
8	D7821003		Support-im		Appelez-nous	-
9	D7824601		Harness				$ 57.59
10	D7824706Q		Ice Maker   (Replaces: D7824703)			Immediately	$ 167.35
11	WPM0223101		Nut, Locking   (Replaces: M0223101)				$ 7.68
12	A3030305		Gasket-per Ft		Appelez-nous	-
13	D7788815		Cover, Auger Motor		Appelez-nous	-
14	WPW10139210		Screw, Tc   (Replaces: M0226528)				$ 7.50
15	B5720301		Clip		Appelez-nous	-
16	10526701		Clamp, Wire		Appelez-nous	-
17	M0585203		Tie, Wire		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
