Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/A Cabinet (not A Serviceable Part) Appelez-nous -
2 981127 Roller, Front Appelez-nous -
3 488681 Screw, 5/16-24 X 1 Appelez-nous -
4 WPW10250570 Roller, Rear   (Replaces: 981122) Special Order $ 42.18

5 488454 Screw, 1/4-28 X 1/2 1/4-28 X 1/2 Appelez-nous -
6 842039 Hinge, Top Appelez-nous -
7 992854 Shim, Hinge Top Appelez-nous -
8 1100173 Hinge Cover (platinum) Appelez-nous -
8 842010 Hinge Cover (white) Appelez-nous -
8 989896 Hinge Cover (golden Harvest) Appelez-nous -
8 989194 Hinge Cover (almond) Appelez-nous -
8 1100172 Hinge Cover (toast) Appelez-nous -
9 1109211 Hinge Cover (toast) Appelez-nous -
9 1109209 Hinge Cover (white) Appelez-nous -
9 1109279 Hinge Cover (golden Harvest) Appelez-nous -
9 1109212 Hinge Cover (almond) Appelez-nous -
9 1109210 Hinge Cover (platinum) Appelez-nous -
10 488915 Screw, 6-32 X 1/2 Appelez-nous -
11 488949 Screw (repair) Appelez-nous -
11 WP999367 Screw, 10-32 X 23/32   (Replaces: 489105) Special Order $ 8.56

12 1115900 Hinge, Bottom R.h. Appelez-nous -
12 1115903 Hinge, Bottom (l.h.) Appelez-nous -
13 WPW10329686 Door Closer, Cam   (Replaces: 1115901) In-Stock Immediately $ 5.90

14 WP486579 Screw, 8-32 X 1/4   (Replaces: 487983) Special Order $ 7.89

14 488913 Screw (repair) Appelez-nous -
15 836196 Shim, Hinge Bottom Appelez-nous -
16 WP487802 Washer   (Replaces: 488723) In-Stock Immediately $ 7.91

17 987179 Shim, Door Closer Appelez-nous -
18 836162 Tap Plate, Bottom Appelez-nous -
19 1109240 Exterior Grille Appelez-nous -
20 546131 Bumper, Grille Appelez-nous -
21 WP944224 Grille Support   (Replaces: 944224) Special Order $ 7.94

22 W11624204 Screw, 8 X 1/2   (Replaces: 486194) Special Order $ 14.72

23 983608 Hinge, Top Freezer Appelez-nous -
24 WP488234 Screw, 8-32 X 5/32   (Replaces: 488889) Special Order $ 7.08

25 839989 Grommet Appelez-nous -
26 836472 Tube, Clamp Appelez-nous -
27 W11624204 Screw, 8 X 1/2   (Replaces: 486194) Special Order $ 14.72

28 982904 Drain Fitting, Liner Appelez-nous -
29 841646 Extension, Drain Fitting Appelez-nous -
30 841648 Cup, Drain Extension Appelez-nous -
31 488978 Screw, 8-15 X 3/8 Appelez-nous -
32 836372 Insert, Air Baffle Appelez-nous -
33 1101165 Cover, Unit Compartment Appelez-nous -
34 WPW10141645 Screw, 8 X 1/2   (Replaces: 489084) Special Order $ 8.05

35 851648 Receptacle, Head Appelez-nous -
36 482553 Harness, Wiring (6`` Leads) Appelez-nous -
37 489173 Screw, (4) Appelez-nous -
38 989068 Clip, Grille Appelez-nous -
39 1111346 Shim Appelez-nous -
40 936571 Stud Anchor Appelez-nous -
41 1115233 Door Sensor Assembly (golden Harvest) Appelez-nous -
41 1115232 Door Sensor Assembly (platinum) Appelez-nous -
41 1115231 Door Sensor Assembly (toast) Appelez-nous -
41 1115230 Door Sensor Assembly (almond) Appelez-nous -
41 1115229 Door Sensor Assembly (white) Appelez-nous -
42 944973 Clip, Wiring Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

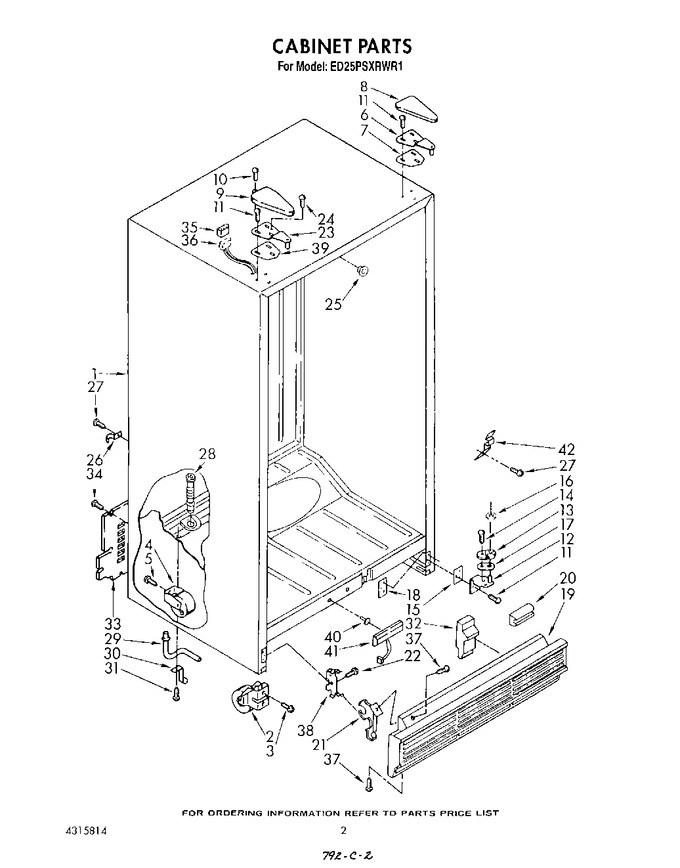

Diagram for ED25PSXRWR1
