SELECT A DIAGRAM

02 - Cabinet


03 - Breaker And Partition


04 - Air Flow And Reservoir


05 - Dispenser Front


06 - Refrigerator Door


07 - Freezer Door


08 - Refrigerator Interior , Lit/optional


09 - Freezer Interior


10 - Unit


11 - Icemaker


12 - Air Flow And Control

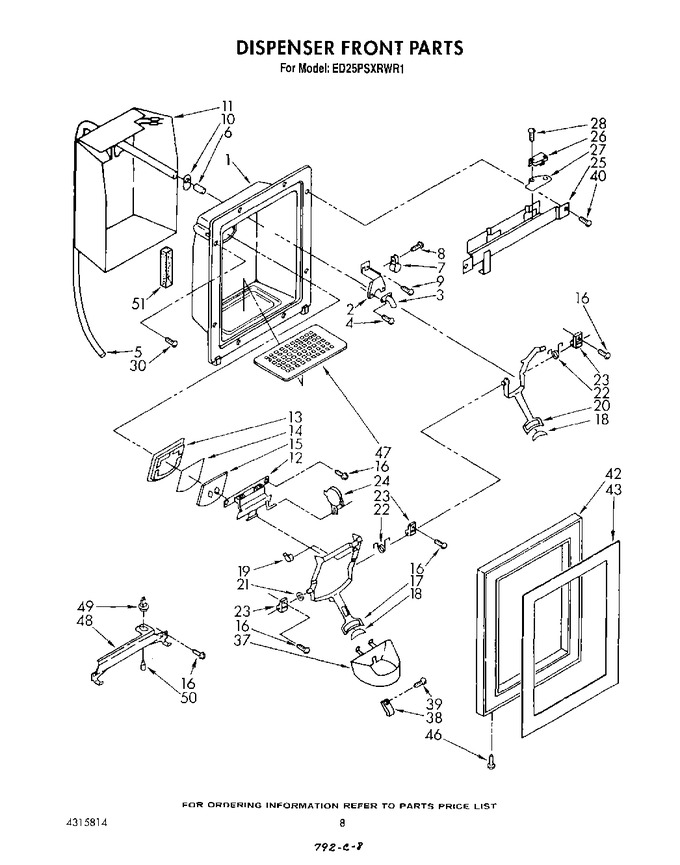

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	938565		Housing, Dispenser		Appelez-nous	-
2	987049		Bracket, Water Fitting		Appelez-nous	-
3	WP4388152		Water Fitting, Dispenser   (Replaces: 987050)				$ 290.25
4	WP965173		Screw, 8 X 3/8   (Replaces: 487916)			Immediately	$ 11.87
5	W10823511		Water Tube   (Replaces: 1111250)			Immediately	$ 32.41
6	4387491		Insert, Tube   (Replaces: 841707)				$ 8.23
7	WP488878		Tube Clamp   (Replaces: 488878)				$ 12.18
8	WP488787		Screw, (8-18 X 1/2)   (Replaces: 488886)				$ 11.26
9	488316		Screw, 8-18 X 3/4		Appelez-nous	-
10	987048		Grommet		Appelez-nous	-
11	1108623		Heater, Ice Dispenser		Appelez-nous	-
12	938669		Ice Door Mechanism		Appelez-nous	-
13	983691		Gasket, Ice Door				$ 6.61
14	987121		Impact, Shield				$ 5.91
15	983690		Door, Ice				$ 11.13
16	WP3400906		Screw, 9-12 X 1/2   (Replaces: 489000)				$ 9.05
17	987075		Lever, Ice Dispenser				$ 46.56
18	983693		Pad, Lever		Appelez-nous	-
19	987917		Bearing, Clip		Appelez-nous	-
20	WP987074		Lever, Water Dispenser   (Replaces: 987074)				$ 117.22
21	488307		Washer		Appelez-nous	-
22	983696		Spring, Lever				$ 21.26
23	1111259		Bearing, Lever		Appelez-nous	-
24	WP1120581		Delay Mechanism   (Replaces: 938665)				$ 223.72
25	1106383		Control, Bracket		Appelez-nous	-
26	841336		Switch		Appelez-nous	-
27	1109408		Insulation, Switch		Appelez-nous	-
28	489155		Screw, 4-40 X 9/16		Appelez-nous	-
30	WP489128		Screw, 8-32 X 3/8   (Replaces: 488500)				$ 11.40
37	985866		Guide, Ice				$ 18.30
38	986088		Glass Top		Appelez-nous	-
39	488892		Screw, 4-24 X 3/8		Appelez-nous	-
40	W11693756		Screw, 8 X 5/8   (Replaces: 488687)			Immediately	$ 14.76
42	1116108		Front Cover Housing		Appelez-nous	-
43	1116107		Insert, Front Housing		Appelez-nous	-
46	WP488729		Screw, 8 X 1/2   (Replaces: 488320)			Immediately	$ 8.28
47	983900		Grille, Overflow				$ 27.30
48	1109269		Bracket, Light		Appelez-nous	-
49	1109271		Socket, Light		Appelez-nous	-
50	1106855		Light Bulb		Appelez-nous	-
51	482672		Seal		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
