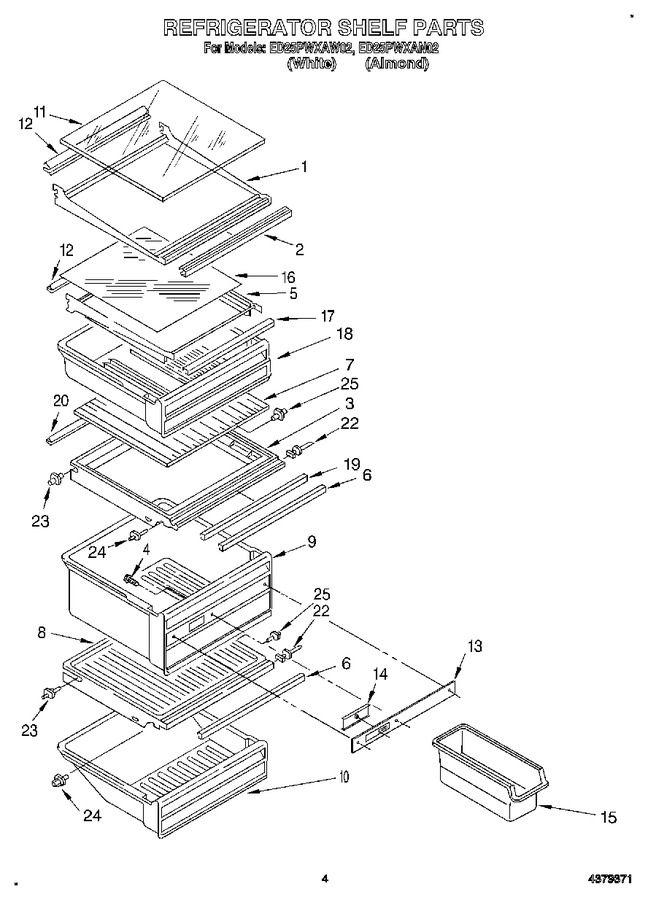

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1118413		Shelf Assembly, Cantilever (2)		Appelez-nous	-
2	1114302		Trim, Shelf		Appelez-nous	-
3	WP1126289		Cover, Crisper   (Replaces: 2148309)				$ 181.71
4	489226		Screw (3)		Appelez-nous	-
5	2148122		Pan Shelf & Slide Assembly		Appelez-nous	-
6	2172710		Trim, Crisper Cover		Appelez-nous	-
7	1114687		Glass, Crisper Cover				$ 88.24
8	WP2148298		Cover, Meat Pan   (Replaces: 2157051)				$ 174.59
9	2148980		Pan, Crisper		Appelez-nous	-
10	2148192		Pan, Meat		Appelez-nous	-
11	2148237		Glass, Shelf		Appelez-nous	-
12	1114306		Reflector, Shelf		Appelez-nous	-
13	2148378		Front, Crisper Pan		Appelez-nous	-
14	1116718		Slide		Appelez-nous	-
15	WP982704		Container   (Replaces: 2148079)				$ 31.00
16	2148300		Glass, Shelf		Appelez-nous	-
17	2148301		Trim, Shelf		Appelez-nous	-
18	2148005		Snack Bin		Appelez-nous	-
19	1115291		Gasket, Crisper (front)		Appelez-nous	-
20	1121385		Gasket, Crisper (rear)		Appelez-nous	-
22	4388538		Shelf Stud   (Replaces: 2147997)			Immediately	$ 31.34
23	1115290		Shelf Stud				$ 7.61
24	WP2149540		Shelf Stud   (Replaces: 2149540)				$ 10.44
25	4388538		Shelf Stud   (Replaces: 1110718)			Immediately	$ 31.34

    View Diagram in Separate Window       Print Part List
