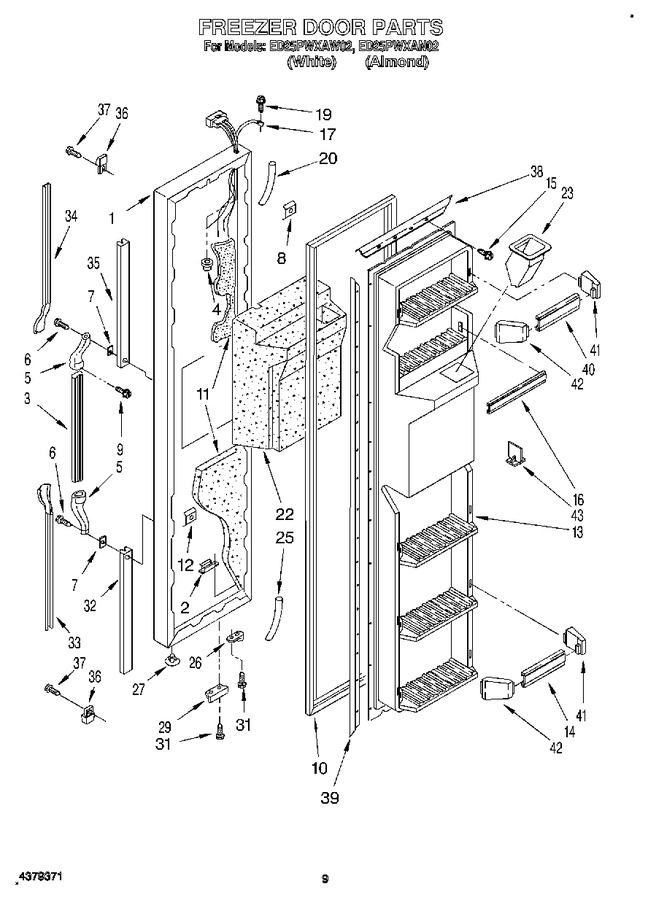

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1110652		Freezer, Door Panel (white)		Appelez-nous	-
1	1110655		Freezer, Door Panel (almond (also Order Item 11))		Appelez-nous	-
2	2155335		Tap, Plate		Appelez-nous	-
3	1118417		Handle, Center		Appelez-nous	-
4	939886		Seal, Hinge Pin		Appelez-nous	-
5	1119359		End Cap (2)		Appelez-nous	-
6	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
7	935075		Shim, End Cap (2)		Appelez-nous	-
8	WP939101		Screw Anchor (2)   (Replaces: 939101)				$ 7.50
9	489022		Screw (4)		Appelez-nous	-
10	1127310		Door Gasket, Magnetic		Appelez-nous	-
11	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
12	941242		Screw Anchor (2)		Appelez-nous	-
13	1124969		Panel, Interior Door		Appelez-nous	-
14	2148320		Trim, Shelf (3)		Appelez-nous	-
15	WP489069		Screw   (Replaces: 489101)			Immediately	$ 7.86
16	2148321		Trim, Door Shelf		Appelez-nous	-
17	1116960		Harness, Door		Appelez-nous	-
19	WP488234		Screw   (Replaces: 489422)				$ 6.74
20	1119060		Tube, Door Wiring		Appelez-nous	-
22	1115345		Insulation, Dispenser		Appelez-nous	-
23	987188		Chute, Ice		Appelez-nous	-
25	2147080		Tube, Door Wiring		Appelez-nous	-
26	4318165		Cam, Door Closer   (Replaces: 2155312)			Immediately	$ 27.36
27	2151653		Shim, Door Closer		Appelez-nous	-
29	2155334		Bracket, Door Stop		Appelez-nous	-
31	WP999367		Screw   (Replaces: 489367)				$ 7.86
32	1119360		Retainer, Insert		Appelez-nous	-
33	1119363		Insert, Handle (almond)		Appelez-nous	-
33	1119361		Insert, Handle (white)		Appelez-nous	-
34	1119373		Insert, Handle (white)		Appelez-nous	-
34	1119375		Insert, Handle (almond)		Appelez-nous	-
35	1119372		Retainer, Insert		Appelez-nous	-
36	2156220		End Cap (2)		Appelez-nous	-
37	489075		Screw		Appelez-nous	-
38	1118306		Gasket Retainer, Top & Bottom		Appelez-nous	-
39	1118302		Gasket Retainer, Side (2)		Appelez-nous	-
40	2148319		Trim, Door Shelf		Appelez-nous	-
41	1115364		End Cap, Trim (4)		Appelez-nous	-
42	1115333		End Cap, Trim (4)		Appelez-nous	-
43	1114380		Divider, Shelf		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
