Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2163572 Shelf, Cantilever (3) Appelez-nous -
2 W10508993 Cover, Crisper   (Replaces: 2189610) Special Order $ 291.29

3 W10864399 Glass, Cover (2)   (Replaces: 2179259) Special Order $ 220.98

4 2179350 Deflector Special Order $ 81.80

5 W10508993 Cover, Meat Pan   (Replaces: 2189601) Special Order $ 291.29

6 WP2188661 Pan, Crisper   (Replaces: 2179275) In-Stock Immediately $ 162.07

7 WP2188664 Meat Pan   (Replaces: 2179276) In-Stock Immediately $ 85.30

8 W10136387A Bin, Egg   (Replaces: 2169933) Special Order $ 18.61

9 2175987 Glass, Shelf Appelez-nous -
10 2170621 Reflector Appelez-nous -
11 4388538 Shelf Stud   (Replaces: 1110718) In-Stock Immediately $ 31.34

12 4388539 Shelf Stud   (Replaces: 2172943) Special Order $ 17.54


    View Diagram in Separate Window     Print Icon   Print Part List

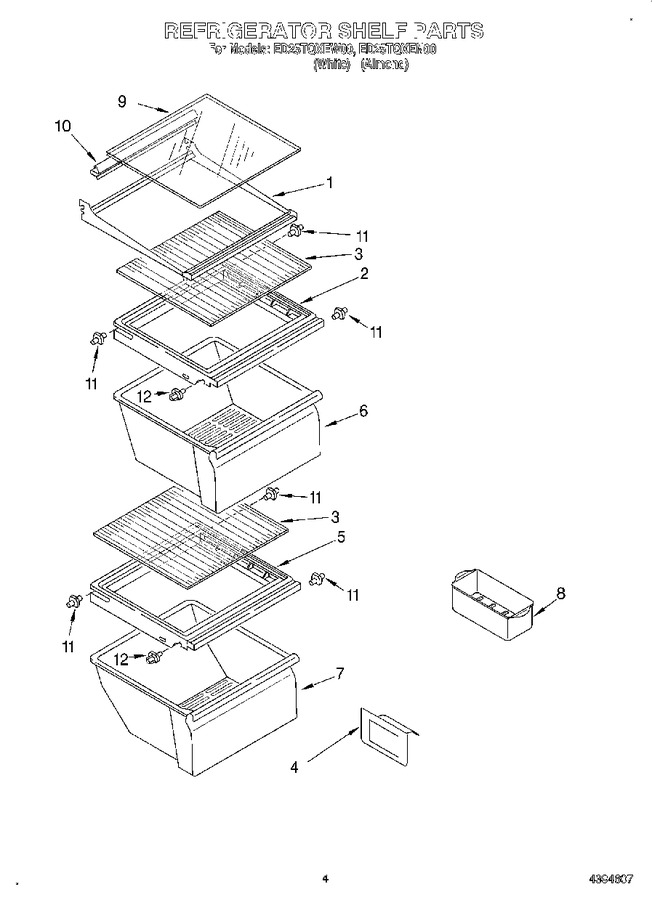

Diagram for ED25TQXEN00
