SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Airflow


11 - Control


12 - Icemaker, Lit/optional

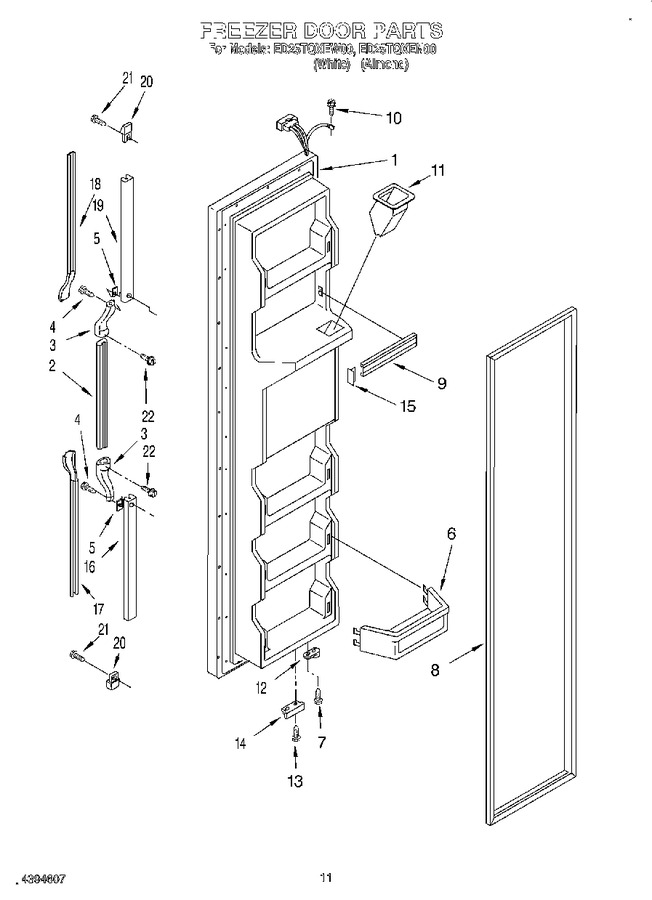

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194806W		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2194806N		Freezer Door (includes Item 8 And Dispenser Front Parts) (almond)		Appelez-nous	-
2	2194767W		Handle, Center (white)		Appelez-nous	-
2	2194767N		Handle, Center (almond)		Appelez-nous	-
3	1119359		End Cap (2)		Appelez-nous	-
4	WP489463		Screw   (Replaces: 489463)				$ 7.82
5	935075		Shim, End Cap (2)		Appelez-nous	-
6	2171168		Trivet, Shelf (4)		Appelez-nous	-
7	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
8	2159074		Door Gasket, Magnetic (repair)				$ 310.19
9	WPW10307490		Trim, Door Shelf   (Replaces: 2170921)			Immediately	$ 23.11
10	WP488234		Screw   (Replaces: 489422)				$ 6.74
11	2156146		Chute, Ice		Appelez-nous	-
12	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 27.36
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	2155332		Bracket, Door Stop		Appelez-nous	-
15	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.18
16	2194770		Retainer, Insert		Appelez-nous	-
17	2194773N		Insert, Handle (almond)		Appelez-nous	-
17	2194773W		Insert, Handle (white)		Appelez-nous	-
18	2194775N		Insert, Handle (almond)		Appelez-nous	-
18	2194775W		Insert, Handle (white)		Appelez-nous	-
19	2194772		Retainer, Insert		Appelez-nous	-
20	2156220		End Cap (2)		Appelez-nous	-
21	489075		Screw		Appelez-nous	-
22	489022		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
