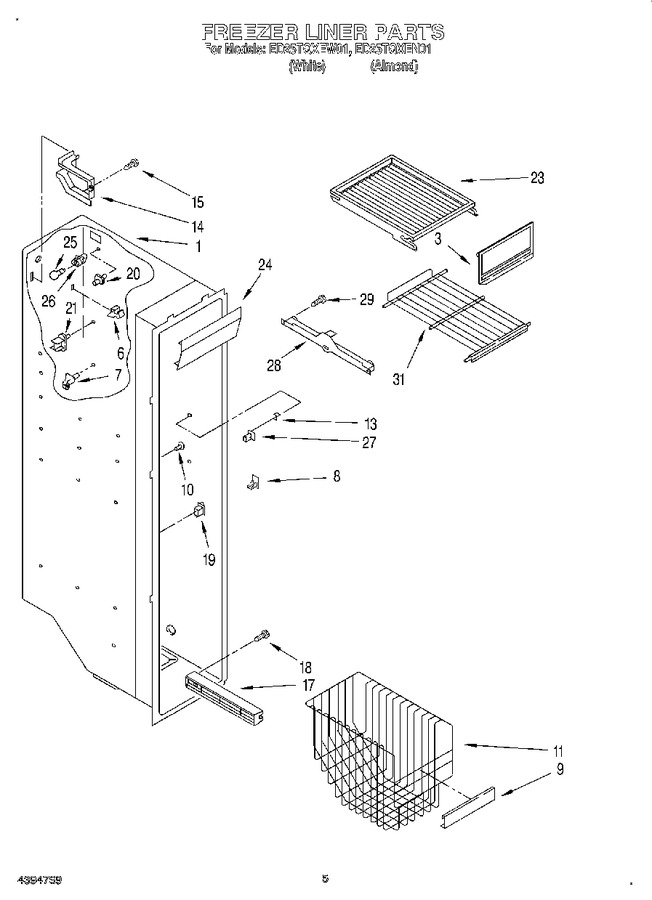

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
3	WP2171713		Door, Ice Compartment   (Replaces: 2171713)				$ 87.27
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.42
7	1115317		Support, Stud (4)		Appelez-nous	-
8	1106982		Stud, Rear		Appelez-nous	-
9	2195900		Trim, Basket		Appelez-nous	-
10	2176134		Grommet				$ 5.83
11	2181764		Basket, Sloped		Appelez-nous	-
13	946355		Stud, Support		Appelez-nous	-
14	2155572		Cover, Wiring		Appelez-nous	-
15	W11233072		Screw   (Replaces: 489355)			Immediately	$ 14.02
17	2181760		Slide, Basket (right Side)		Appelez-nous	-
17	2181759		Slide, Basket (left Side)		Appelez-nous	-
18	W11693756		Screw   (Replaces: 487042)			Immediately	$ 14.06
19	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 38.18
20	4388538		Stud (4)   (Replaces: 1110718)			Immediately	$ 31.34
21	1115386		Stud, Shelf (4)		Appelez-nous	-
23	2171714		Shelf, Top Compartment		Appelez-nous	-
24	2171705		Lens, Light				$ 94.68
25	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
26	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 110.16
27	946356		Stud, Front R.s.		Appelez-nous	-
27	1106982		Stud, Rear R.s.		Appelez-nous	-
28	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 132.77
28	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 123.92
29	718257		Screw   (Replaces: 489100)		Appelez-nous	-
31	2174268		Shelf (2)				$ 38.12
31	WP2174267		Shelf (1)   (Replaces: 2174267)				$ 88.90
