01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Ice Maker, Lit/optional

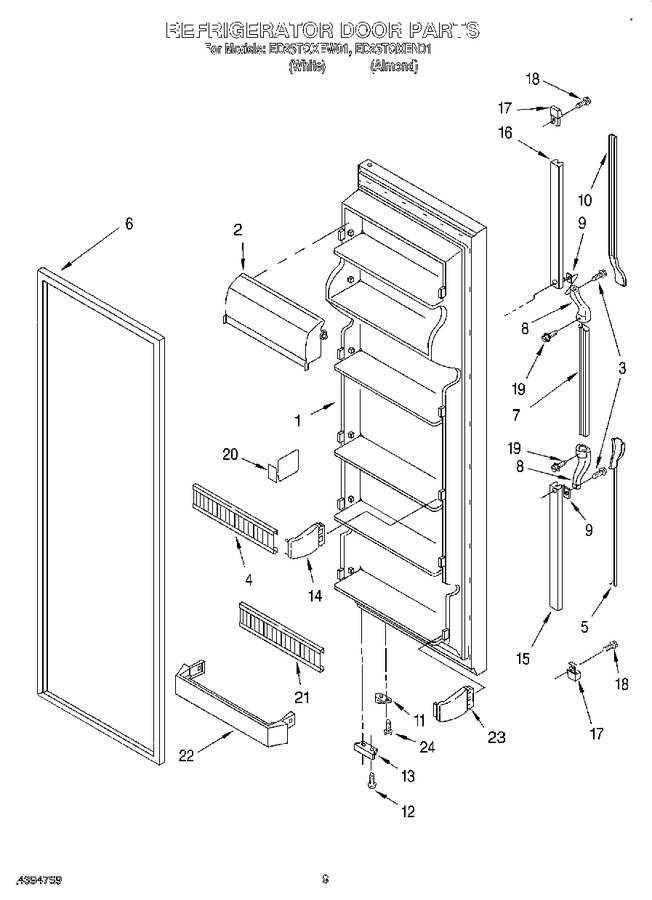

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194811N		Refrigerator Door (includes Item 6) (almond)		Appelez-nous	-
1	2194811W		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2177105)			Immediately	$ 85.16
3	WP489463		Screw   (Replaces: 489463)				$ 7.82
4	2175989		Trim, Door (3)		Appelez-nous	-
5	2194773W		Insert, Handle (white)		Appelez-nous	-
5	2194773N		Insert, Handle (almond)		Appelez-nous	-
6	2159075		Door Gasket, Magnetic (repair)			Immediately	$ 317.14
7	2194767N		Handle, Center (almond)		Appelez-nous	-
7	2194767W		Handle, Center (white)		Appelez-nous	-
8	1119359		End Cap, Center Handle		Appelez-nous	-
9	935075		Shim		Appelez-nous	-
10	2194775W		Insert, Handle (white)		Appelez-nous	-
10	2194775N		Insert, Handle (almond)		Appelez-nous	-
11	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 27.36
12	WP489483		Screw   (Replaces: 489420)				$ 10.87
13	2195950		Bracket, Door Stop				$ 5.84
14	WP2195916K		End Cap (6)   (Replaces: 2195916)			Immediately	$ 12.55
15	2194770		Retainer, Insert (bottom)		Appelez-nous	-
16	2194772		Retainer, Insert		Appelez-nous	-
17	2156220		End Cap (2)		Appelez-nous	-
18	489075		Screw		Appelez-nous	-
19	489022		Screw		Appelez-nous	-
20	2160050		Divider		Appelez-nous	-
21	2175990		Trim, Door (1)		Appelez-nous	-
22	WP2177962K		Trivet, Shelf   (Replaces: 2171165)				$ 81.09
23	WP2195915		Endcap (2)   (Replaces: 2195915)				$ 13.07
24	WP3400012		Screw   (Replaces: 3400012)				$ 7.82

    View Diagram in Separate Window       Print Part List
