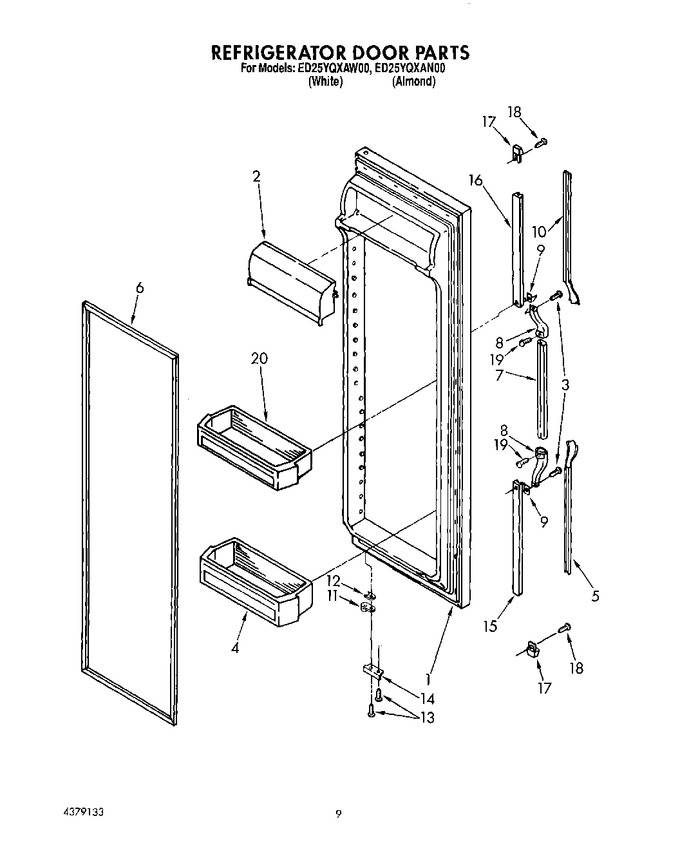

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2159382		Refrigerator Door (almond (includes Item 6))		Appelez-nous	-
1	2159383		Refrigerator Door (white)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2156058)			Immediately	$ 89.42
3	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
4	2159390		Shelf Bin (2)		Appelez-nous	-
5	1119363		Insert, Handle (almond)		Appelez-nous	-
5	1119361		Insert, Handle (white)		Appelez-nous	-
6	2159075		Door Gasket, Magnetic (repair) (light Grey)   (Replaces: 2159079)			Immediately	$ 333.00
6	2159075		Door Gasket, Magnetic (repair) (mist Beige)			Immediately	$ 333.00
7	943079		Handle, Center (almond)		Appelez-nous	-
7	1124713		Handle, Center (white)		Appelez-nous	-
8	1119359		End Cap, Center Handle		Appelez-nous	-
9	935075		Shim		Appelez-nous	-
10	1119375		Insert, Handle (almond)		Appelez-nous	-
10	1119373		Insert, Handle (white)		Appelez-nous	-
11	4318165		Door Closer, Upper Cam   (Replaces: 986758)			Immediately	$ 29.74
12	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.96
13	WP489069		Screw   (Replaces: 488938)			Immediately	$ 8.40
14	2157611		Bracket, Door Stop		Appelez-nous	-
15	1119360		Retainer, Insert (bottom)		Appelez-nous	-
16	1119372		Retainer, Insert		Appelez-nous	-
17	2156220		End Cap (2)		Appelez-nous	-
18	489075		Screw		Appelez-nous	-
19	489022		Screw		Appelez-nous	-
20	4210344		Trim Kit		Appelez-nous	-
20	2159391		Shelf Bin (3)		Appelez-nous	-
20	4210352		Trimless Black Decor Panel		Appelez-nous	-
20	4210378		Black Handle Insert		Appelez-nous	-
20	4210446		Woodgrain Handle Insert		Appelez-nous	-
