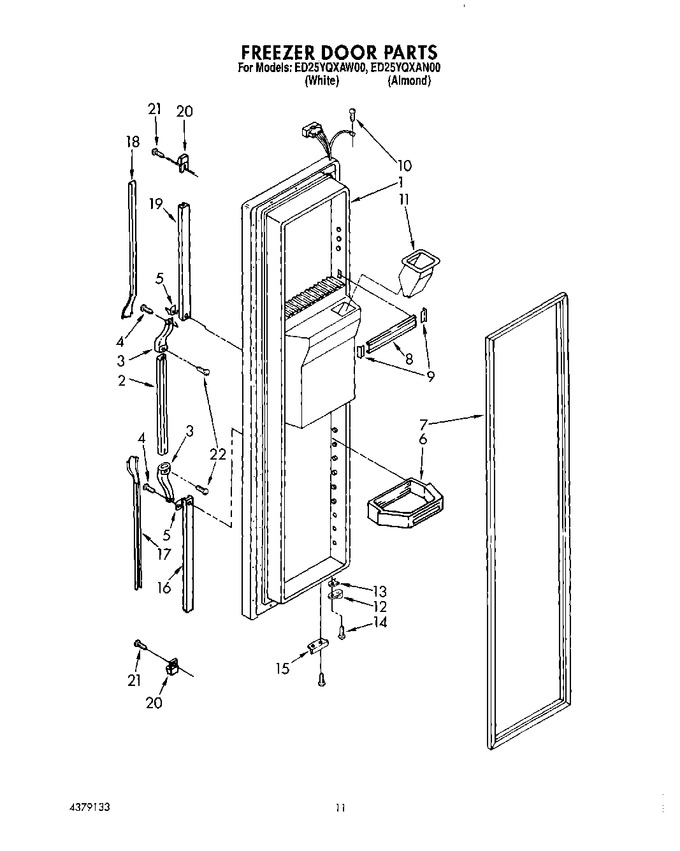

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2159384		Freezer Door (white)		Appelez-nous	-
1	2159402		Freezer Door (almond (includes Item 7 And Dispenser Front Parts))		Appelez-nous	-
2	943079		Handle, Center (almond)		Appelez-nous	-
2	1124713		Handle, Center (white)		Appelez-nous	-
3	1119359		End Cap (2)		Appelez-nous	-
4	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
5	935075		Shim, End Cap (2)		Appelez-nous	-
6	2159392		Shelf Bin (4)		Appelez-nous	-
7	2159074		Door Gasket, Magnetic (service) (mist Beige)				$ 325.70
7	2159074		Door Gasket, Magnetic (service) (light Grey)   (Replaces: 2159078)				$ 325.70
8	2159192		Trim, Door Shelf		Appelez-nous	-
9	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79
10	WP488234		Screw   (Replaces: 488889)				$ 7.08
11	2156146		Chute, Ice		Appelez-nous	-
12	4318165		Door Closer, Upper Cam   (Replaces: 986758)			Immediately	$ 29.74
13	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.96
14	WP489069		Screw   (Replaces: 488938)			Immediately	$ 8.40
15	2157611		Bracket, Door Stop		Appelez-nous	-
16	1119360		Retainer, Insert		Appelez-nous	-
17	1119363		Insert, Handle (almond)		Appelez-nous	-
17	1119361		Insert, Handle (white)		Appelez-nous	-
18	1119373		Insert, Handle (white)		Appelez-nous	-
18	1119375		Insert, Handle (almond)		Appelez-nous	-
19	1119372		Retainer, Insert		Appelez-nous	-
20	2156220		End Cap (2)		Appelez-nous	-
21	489075		Screw		Appelez-nous	-
22	489022		Screw		Appelez-nous	-
