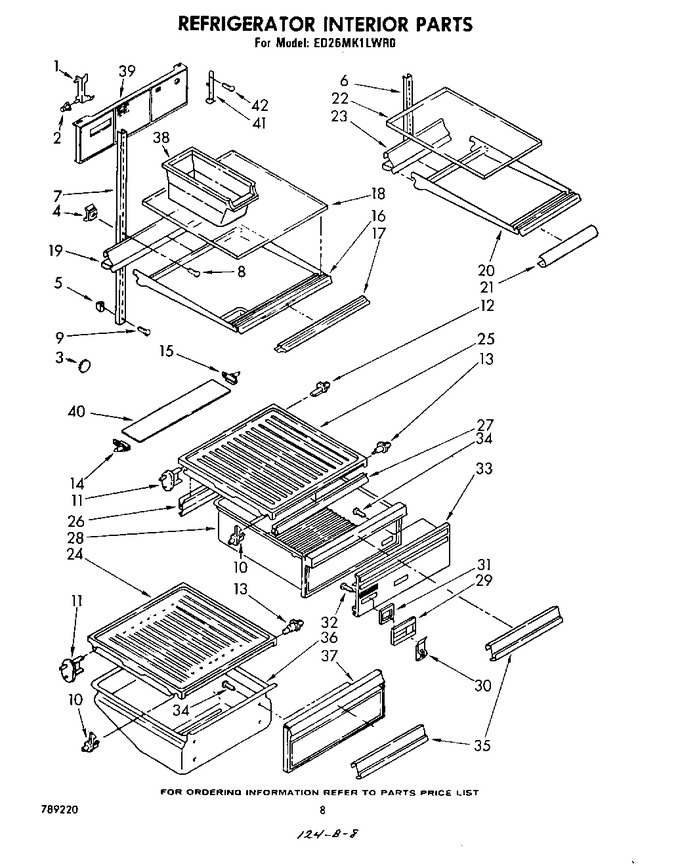

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 842356 | Support, Light L.s. |
|
- | |||||
| 2 | 843945 | Clip, Tubular |
|
- | |||||
| 3 | 659598 | Hole, Plug |
|
- | |||||
| 4 | 983604 | Screw Anchor |
|
- | |||||
| 5 | 520965 | Screw Support, Ladder (8) |
|
$ 31.35 | |||||
| 6 | 945063 | Shelf, Ladder (2) |
|
- | |||||
| 7 | 934264 | Shelfladder (2) |
|
- | |||||
| 8 | 488357 | Screw, 8 X 1-1/4 (5) |
|
- | |||||
| 9 | 488960 | Screw, 8-32 X 1-1/4 |
|
- | |||||
| 9 | 488980 | Screw (repair) |
|
- | |||||
| 10 | 984779 | Shelf, Stud |
|
- | |||||
| 11 | 937521 | Shelf Stud |
|
- | |||||
| 12 | 936591 | Shelf Stud |
|
$ 6.18 | |||||
| 13 | 208500 | Shelf, Stud |
|
- | |||||
| 14 | 935982 | Stud Light Lens (l.s.) |
|
- | |||||
| 15 | 935243 | Stud, Light Lens (r.s.) |
|
- | |||||
| 16 | 936787 | Shelf, Cantilever |
|
- | |||||
| 17 | 849021 | Trim Shelf Cantilever |
|
- | |||||
| 18 | 944369 | Glass, Cantilever Shelf |
|
- | |||||
| 19 | 849028 | Reflector, Cantilever Shelf |
|
- | |||||
| 20 | 945065 | Shelf Cantilever, Half |
|
- | |||||
| 21 | 945141 | Trim Shelf Front, Half |
|
- | |||||
| 22 | 945140 | Glass Cantilever Shelf, Half |
|
- | |||||
| 23 | 945139 | Reflector Cantilever Shelf, Half |
|
- | |||||
| 24 | 935119 | Pan Slide & Cover |
|
- | |||||
| 24 | 1101202 | Pan Slide & Cover (for Platinum Model Only) |
|
- | |||||
| 25 | 935120 | Pan Slide & Cover |
|
- | |||||
| 26 | 982588 | Crisper Gasket Rear |
|
- | |||||
| 27 | 982587 | Crisper Gasket Front |
|
- | |||||
| 28 | 943112 | Pan Crisper |
|
- | |||||
| 29 | 942234 | Housing, Humidity Control |
|
- | |||||
| 30 | 942235 | Slide, Humidity Control |
|
- | |||||
| 31 | 942236 | Seal, Humidity Control |
|
- | |||||
| 32 | 489041 | Screw, 6-19 X 7/16 |
|
- | |||||
| 33 | 943114 | Front Cover, Crisper |
|
- | |||||
| 33 | 1100399 | Front Cover, Crisper (for Platinum Model Only) |
|
- | |||||
| 34 | WP488729 | Screw, 8 X 1/2 (Replaces: 488783) |
|
Immediately | $ 8.28 | ||||
| 34 | 488132 | Screw (repair) |
|
- | |||||
| 35 | 984750 | Overlay, Pan Front |
|
- | |||||
| 36 | 840037 | Pan, Meats |
|
- | |||||
| 37 | 943121 | Front Cover, Meat Pan |
|
- | |||||
| 37 | 1101201 | Front Cover, Meat (for Platinum Model Only) |
|
- | |||||
| 38 | WP982704 | Container Utility (Replaces: 935139) |
|
$ 32.55 | |||||
| 39 | 943218 | Light Lens, Refrigerator |
|
- | |||||
| 40 | 935898 | Light Lens, Crisper |
|
- | |||||
| 41 | 984552 | Support Light Lens, Refrigerator |
|
- | |||||
| 42 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 |
