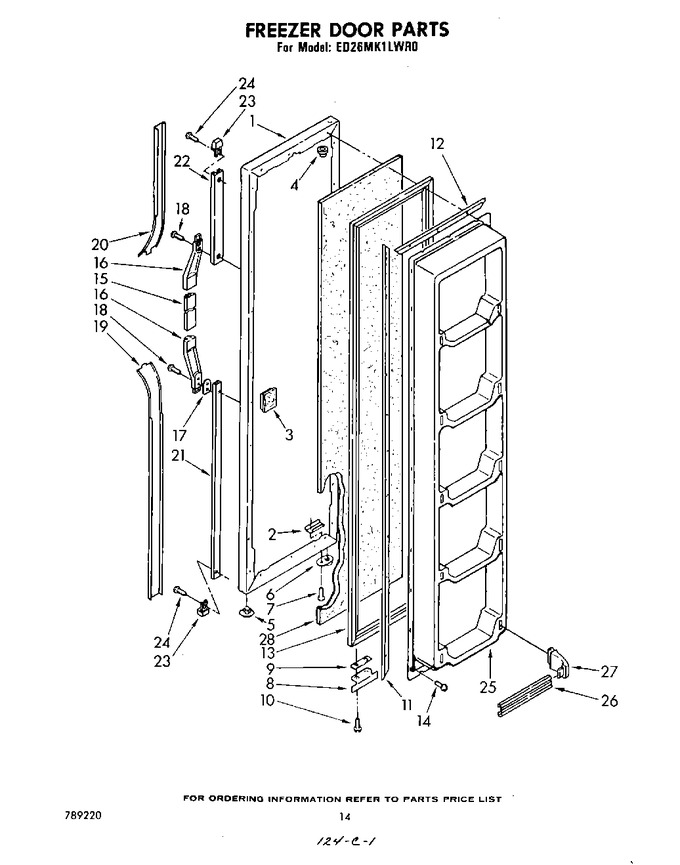

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	941906		Freezer, Door Panel (also Order Item 28) (almond)		Appelez-nous	-
1	1101411		Freezer, Door Panel (also Order Item 28) (toast)		Appelez-nous	-
1	1101412		Freezer, Door Panel (also Order Item 28) (platinum)		Appelez-nous	-
1	941902		Freezer, Door Panel (also Order Item 28) (white)		Appelez-nous	-
1	941903		Freezer, Door Panel (also Order Item 28) (coffee)		Appelez-nous	-
1	941904		Freezer, Door Panel (also Order Item 28) (golden Harvest)		Appelez-nous	-
1	941905		Freezer, Door Panel (also Order Item 28) (new Avocado)		Appelez-nous	-
2	988402		Tap Plate		Appelez-nous	-
3	941242		Screw Anchor		Appelez-nous	-
4	509929		Cap, Hinge Sleeve		Appelez-nous	-
5	534927		Hole Plug		Appelez-nous	-
6	4318165		Door Closer, Cam   (Replaces: 986758)			Immediately	$ 29.74
7	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 8.40
8	988420		Bracket, Door Stop		Appelez-nous	-
9	988421		Shim		Appelez-nous	-
10	488549		Screw, 89 X 1/2		Appelez-nous	-
11	982887		Retainer, Gasket Side (2)		Appelez-nous	-
12	983643		Retainer, Gasket Top & Bottom (2)		Appelez-nous	-
13	939342		Door Gasket, Magnetic (for Platinum Model Only)		Appelez-nous	-
13	944470		Door Gasket, Magnetic		Appelez-nous	-
14	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
14	WP489069		Screw, 7 X 1/2   (Replaces: 489089)			Immediately	$ 8.40
15	935092		Handle, Center (new Avocado)		Appelez-nous	-
15	1101369		Handle, Center (toast)		Appelez-nous	-
15	935093		Handle, Center (golden Harvest)		Appelez-nous	-
15	944376		Handle, Center (white & Coffee)		Appelez-nous	-
15	944377		Handle, Center (almond)		Appelez-nous	-
15	1101370		Handle, Center (platinum)		Appelez-nous	-
16	935103		Center End Cap (2)		Appelez-nous	-
17	935075		Shim, Center End Cap (2)		Appelez-nous	-
18	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
19	941263		Insert, Handle		Appelez-nous	-
20	941298		Insert, Handle		Appelez-nous	-
21	941262		Retainer Insert		Appelez-nous	-
22	941297		Retainer Insert		Appelez-nous	-
23	941259		End Cap (2)		Appelez-nous	-
24	489075		Screw, 10-32 X 5/8		Appelez-nous	-
25	945848		Panel, Interior		Appelez-nous	-
25	1101416		Interior Panel (for Platinum Model Only)		Appelez-nous	-
26	935819		Trim, Door Shelf (5)		Appelez-nous	-
27	WP849996		Support, Trim   (Replaces: 943824)				$ 7.95
27	WP849996		Support, Trim (for Platinum Model Only)   (Replaces: 849996)				$ 7.95
28	876029		Kit, Foam Slab (required When Replacing Exterior Door)		Appelez-nous	-
