SELECT A DIAGRAM

02 - Cabinet


03 - Breaker And Partition


04 - Air Flow


05 - Dispenser Front

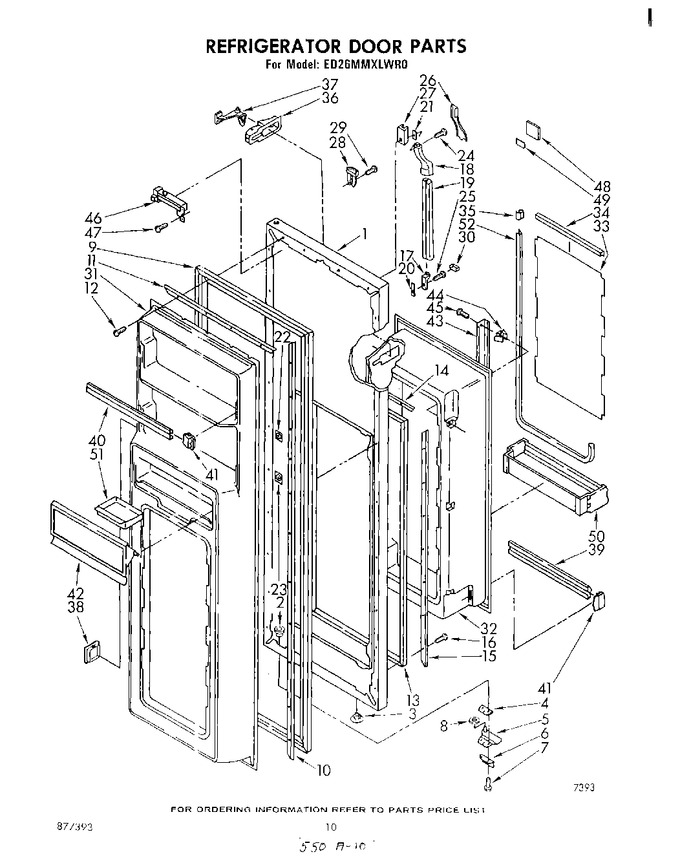

06 - Refrigerator Door


07 - Freezer Door


08 - Serva Door


09 - Unit


10 - Refrigerator Interior


11 - Freezer Interior


12 - Icemaker


13 - Air Flow And Control, Not Illustrat


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1101430		Exterior Door Panel (platinum)		Appelez-nous	-
1	941951		Exterior Door Panel (new Avocado)		Appelez-nous	-
1	941950		Exterior Door Panel (golden Harvest)		Appelez-nous	-
1	941949		Exterior Door Panel (coffee)		Appelez-nous	-
1	941948		Exterior Door Panel (white)		Appelez-nous	-
1	941952		Exterior Door Panel (almond)		Appelez-nous	-
1	1101429		Exterior Door Panel (toast)		Appelez-nous	-
2	509929		Cap, Hinge Sleeve		Appelez-nous	-
3	534927		Hole Plug		Appelez-nous	-
4	986169		Shim, Bottom Hinge		Appelez-nous	-
5	987914		Hinge, Bottom		Appelez-nous	-
6	988417		Bracket, Door Stop		Appelez-nous	-
7	WP250830		Screw, 8-32 X 1/2   (Replaces: 488096)				$ 8.78
8	488306		Washer		Appelez-nous	-
9	939341		Door Gasket, Magnetic (for Platinum Model Only)		Appelez-nous	-
9	944457		Door Gasket, Magnetic		Appelez-nous	-
10	982887		Retainer, Gasket Side		Appelez-nous	-
11	836121		Retainer, Gasket Top & Bottom		Appelez-nous	-
12	WP489069		Screw, 7 X 1/5   (Replaces: 489089)			Immediately	$ 8.40
12	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
13	944458		Gasket, Seal		Appelez-nous	-
14	986164		Reinforcement Strip, Top & Bottom (2)		Appelez-nous	-
15	986163		Reinforcement Strip, Side		Appelez-nous	-
16	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
17	935105		End, Cap Handle				$ 32.80
18	935103		Center, End Cap		Appelez-nous	-
19	945144		Handle, Center (white, Coffee)		Appelez-nous	-
19	1101438		Center, Handle (platinum)		Appelez-nous	-
19	1101437		Center, Handle (toast)		Appelez-nous	-
19	945146		Handle, Center (almond)		Appelez-nous	-
19	935095		Handle, Center (new Avocado)		Appelez-nous	-
19	935096		Handle, Center (golden Harvest)		Appelez-nous	-
20	935076		Shim, Handle		Appelez-nous	-
21	935075		Shim, Handle Center		Appelez-nous	-
22	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
23	941242		Screw Anchor		Appelez-nous	-
24	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
25	WP488729		Screw, 8 X 1/2   (Replaces: 486993)			Immediately	$ 8.28
26	941955		Insert, Handle		Appelez-nous	-
27	941954		Retainer Insert		Appelez-nous	-
28	941259		End Cap		Appelez-nous	-
29	489075		Screw, 10-32 X 5/8		Appelez-nous	-
30	987873		End Cap Cover		Appelez-nous	-
31	945169		Interior Door Panel		Appelez-nous	-
31	1101451		Interior Door Panel (for Platinum Model Only)		Appelez-nous	-
32	945170		Interior Door Panel, Storage		Appelez-nous	-
32	1101452		Interior Door Panel, Storage (for Platinum Model Only)		Appelez-nous	-
33	986455		Panel, Decorative		Appelez-nous	-
34	936954		Trim, Decorative		Appelez-nous	-
35	986454		Cap Trim Joint		Appelez-nous	-
36	1101453		Housing, Rocker Arm (for Platinum Model Only)		Appelez-nous	-
36	944463		Housing, Rocker Arm		Appelez-nous	-
37	944464		Rocker Arm		Appelez-nous	-
37	1101454		Rocker Arm (for Platinum Model Only)		Appelez-nous	-
38	944465		Escutcheon, Panel Opening		Appelez-nous	-
38	1101455		Escutcheon, Panel Opening (for Platinum Model Only)		Appelez-nous	-
39	986448		Trim, Door Shelf		Appelez-nous	-
40	988746		Trim, Door Shelf		Appelez-nous	-
41	839904		Retainer, Door Trim (for Platinum Model Only)				$ 5.65
41	943125		Retainer, Door Trim		Appelez-nous	-
42	935352		Compdoor, Utility		Appelez-nous	-
43	983804		Shelf Ladder, Door		Appelez-nous	-
44	537095		Expansion Clip		Appelez-nous	-
45	WP488729		Screw, 8 X 1/2   (Replaces: 488320)			Immediately	$ 8.28
46	840847		Door, Closer		Appelez-nous	-
47	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
48	945116		Nameplate		Appelez-nous	-
49	991259		Tape Strip		Appelez-nous	-
50	986449		Door Shelf, Cantilever (for Platinum Model Only)		Appelez-nous	-
50	945147		Door Shelf, Cantilever		Appelez-nous	-
51	520747		Tray, Butter		Appelez-nous	-
52	986453		Trim, Periphery (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
