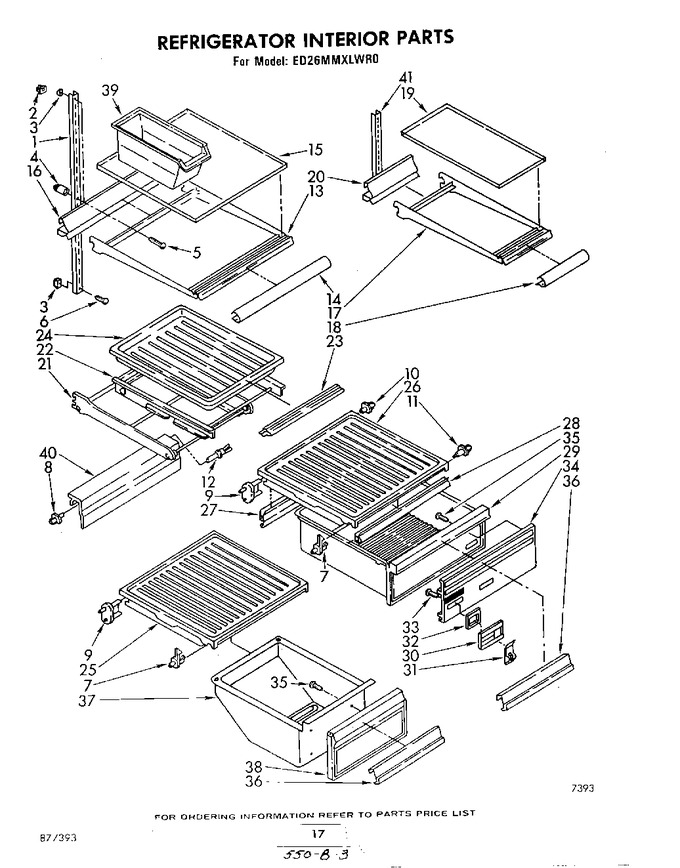

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	936653		Shelf Ladder (2)		Appelez-nous	-
2	983604		Screw Anchor		Appelez-nous	-
3	520965		Screw, Support Ladder				$ 31.35
4	512923		Screw, Grommet		Appelez-nous	-
5	488357		Screw, 8 X 1-1/4		Appelez-nous	-
6	488960		Screw, 8-32 X 1-1/4		Appelez-nous	-
6	488980		Screw (repair)		Appelez-nous	-
7	984779		Shelf, Stud		Appelez-nous	-
8	937513		Stud, Shelf		Appelez-nous	-
9	937521		Stud, Shelf		Appelez-nous	-
10	936591		Stud				$ 6.18
11	208500		Shelf, Stud		Appelez-nous	-
12	521878		Shelf Stud		Appelez-nous	-
13	936787		Shelf, Cantilever		Appelez-nous	-
14	849021		Shelf Trim, Cantilever		Appelez-nous	-
15	944369		Glass, Cantilever Shelf		Appelez-nous	-
16	849028		Reflector, Cantilever		Appelez-nous	-
17	945065		Shelf, Cantilever		Appelez-nous	-
18	945141		Trim, Shelf Front		Appelez-nous	-
19	945140		Glass, Cantilever Shelf		Appelez-nous	-
20	945139		Reflector, Cantilever Shelf		Appelez-nous	-
21	936793		Frame, Cantilever Shelf		Appelez-nous	-
22	985518		Rollout Shelf, Cantilever		Appelez-nous	-
23	849021		Trim, Shelf Front		Appelez-nous	-
24	935417		Bin, Rollout Plastic		Appelez-nous	-
25	1101202		Pan Slide & Cover (for Platinum Model Only)		Appelez-nous	-
25	935119		Pan Slide & Cover		Appelez-nous	-
26	935120		Pan Slide & Cover (crisper)		Appelez-nous	-
27	982588		Crisper Gasket Rear		Appelez-nous	-
28	982587		Crisper Gasket Front		Appelez-nous	-
29	943112		Pan Crisper		Appelez-nous	-
30	942234		Housing, Humidity Control		Appelez-nous	-
31	942235		Slide, Humidity Control		Appelez-nous	-
32	942236		Seal, Humidity Control		Appelez-nous	-
33	489041		Screw, 6-19 X 7/16		Appelez-nous	-
34	943114		Front Cover, Crisper		Appelez-nous	-
34	1100399		Front Cover, Crisper (for Platinum Model Only)		Appelez-nous	-
35	488132		Screw (repair)		Appelez-nous	-
35	WP488729		Screw, 8 X 1/2   (Replaces: 488783)			Immediately	$ 8.28
36	984750		Overlay, Front Cover		Appelez-nous	-
37	840037		Pan (meat)		Appelez-nous	-
38	943121		Front Cover, Meat Pan		Appelez-nous	-
38	1101201		Front Cover, Meat (for Platinum Model Only)		Appelez-nous	-
39	WP982704		Container Utility   (Replaces: 935139)				$ 32.55
40	988364		Light Lens, Lower		Appelez-nous	-
41	945063		Shelf Ladder		Appelez-nous	-
