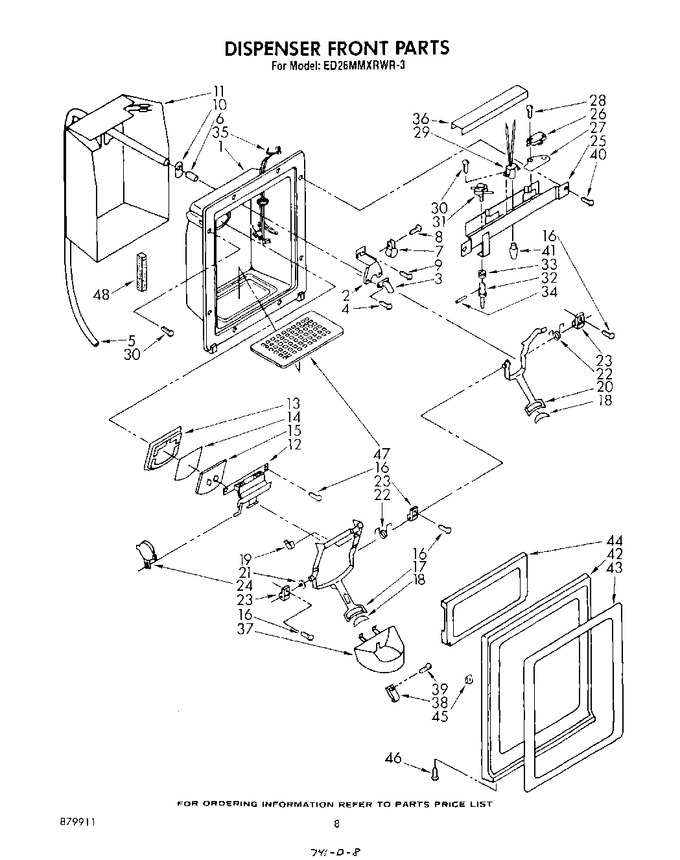

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 938565 | Housing, Dispenser |
|
- | |||||
| 2 | 987049 | Bracket, Water Fitting |
|
- | |||||
| 3 | WP4388152 | Water Fitting, Dispenser (Replaces: 987050) |
|
$ 276.43 | |||||
| 4 | WP965173 | Screw, 8 X 3/8 (Replaces: 487916) |
|
Immediately | $ 10.72 | ||||
| 5 | W10823511 | Water Tube (Replaces: 987053) |
|
Immediately | $ 32.41 | ||||
| 6 | 4387491 | Insert, Tube (Replaces: 841707) |
|
$ 7.84 | |||||
| 7 | WP488878 | Tube Clamp (Replaces: 488878) |
|
$ 11.60 | |||||
| 8 | WP965173 | Screw 8 X 3/8 (Replaces: 487415) |
|
Immediately | $ 10.72 | ||||
| 9 | 488316 | Screw, 8-18 X 3/4 |
|
- | |||||
| 10 | 987048 | Grommet |
|
- | |||||
| 11 | 938107 | Heater, Ice Dispenser |
|
- | |||||
| 12 | 938669 | Ice Door Mechanism |
|
- | |||||
| 13 | 983691 | Gasket, Ice Door |
|
$ 6.61 | |||||
| 14 | 987121 | Impact, Shield |
|
$ 5.91 | |||||
| 15 | 983690 | Door, Ice |
|
$ 11.13 | |||||
| 16 | WP3400906 | Screw, 9-12 X 1/2 (Replaces: 489000) |
|
$ 7.84 | |||||
| 17 | 987075 | Lever, Ice Dispenser |
|
$ 46.56 | |||||
| 18 | 983693 | Pad, Lever |
|
- | |||||
| 19 | 987917 | Bearing, Clip |
|
- | |||||
| 20 | WP987074 | Lever, Water Dispenser (Replaces: 987074) |
|
$ 117.22 | |||||
| 21 | 488307 | Washer |
|
- | |||||
| 22 | 983696 | Spring, Lever |
|
$ 21.26 | |||||
| 23 | 983697 | Bearing, Lever |
|
- | |||||
| 24 | WP1120581 | Delay Mechanism (Replaces: 938665) |
|
$ 213.07 | |||||
| 25 | 983983 | Bracket, Control |
|
- | |||||
| 26 | 841336 | Switch |
|
- | |||||
| 27 | 984683 | Insulation, Switch |
|
- | |||||
| 28 | 00488362 | Screw, 4-40 X 3/4 (Replaces: 488362) |
|
$ 144.58 | |||||
| 29 | 987265 | Lamp Holder |
|
- | |||||
| 30 | WP489128 | Screw, 8-32 X 3/8 (Replaces: 488500) |
|
$ 10.88 | |||||
| 31 | 851386 | Light Switch |
|
- | |||||
| 32 | 983985 | Plunger, Extension |
|
- | |||||
| 33 | 983986 | Spring, Plunger |
|
- | |||||
| 34 | 983987 | Retainer, Pin |
|
- | |||||
| 35 | 851384 | Wiring, Assembly Door |
|
- | |||||
| 36 | 984494 | Shield, Wiring |
|
- | |||||
| 37 | 985866 | Guide, Ice |
|
$ 18.30 | |||||
| 38 | 986088 | Glass Top |
|
- | |||||
| 39 | 488892 | Screw, 4-24 X 3/8 |
|
- | |||||
| 40 | W11693756 | Screw, 8 X 5/8 (Replaces: 488687) |
|
Immediately | $ 14.06 | ||||
| 41 | WP22002263 | Light Bulb (Replaces: 851389) |
|
Immediately | $ 13.66 | ||||
| 42 | 983903 | Front Cover, Housing |
|
- | |||||
| 43 | 1101389 | Insert, Front Housing (toast) |
|
- | |||||
| 43 | 1108810 | Insert, Front Housing (white) |
|
- | |||||
| 43 | 1108811 | Insert, Front Housing (golden Harvest) |
|
- | |||||
| 43 | 945032 | Insert, Front Housing (almond) |
|
- | |||||
| 43 | 1101390 | Insert, Front Housing (platinum) |
|
- | |||||
| 44 | 1116335 | Cover, Housing |
|
- | |||||
| 45 | 488885 | Speed Nut |
|
- | |||||
| 46 | WP488729 | Screw, 8 X 1/2 (Replaces: 488320) |
|
Immediately | $ 7.79 | ||||
| 47 | 983900 | Grille, Overflow |
|
$ 27.30 | |||||
| 48 | 482672 | Seal |
|
- |
