Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 936653 Shelf Ladder (2) Appelez-nous -
2 1109086 Glass, Rollout Shelf Appelez-nous -
3 520965 Screw, Support Ladder Special Order $ 29.86

4 512923 Screw, Grommet Appelez-nous -
5 488357 Screw, 8 X 1-1/4 Appelez-nous -
6 488960 Screw, 8-32 X 1-1/4 Appelez-nous -
6 488980 Screw (repair) Appelez-nous -
7 984779 Shelf, Stud Appelez-nous -
8 937513 Stud, Shelf Appelez-nous -
9 937521 Stud, Shelf Appelez-nous -
10 936591 Stud Special Order $ 6.18

11 208500 Shelf, Stud Appelez-nous -
12 521878 Shelf Stud Appelez-nous -
13 1120580 Shelf, Cantilever Appelez-nous -
14 1120620 Shelf Trim, Cantilever Appelez-nous -
15 1120619 Glass, Cantilever Shelf Appelez-nous -
16 849028 Reflector, Cantilever Appelez-nous -
21 1109083 Frame, Cantilever Shelf Appelez-nous -
22 1109084 Rollout Shelf, Cantilever Appelez-nous -
23 1119751 Trim, Shelf Front Appelez-nous -
24 1109085 Glass, Rollout Shelf Appelez-nous -
25 1101202 Pan Slide & Cover Appelez-nous -
26 1108778 Pan Slide & Cover (crisper) Appelez-nous -
27 982588 Crisper Gasket Rear Appelez-nous -
28 982587 Crisper Gasket Front Appelez-nous -
29 943112 Pan Crisper Appelez-nous -
30 942234 Housing, Humidity Control Appelez-nous -
31 942235 Slide, Humidity Control Appelez-nous -
32 942236 Seal, Humidity Control Appelez-nous -
33 489041 Screw, 6-19 X 7/16 Appelez-nous -
34 1108780 Front Cover, Crisper Appelez-nous -
35 WP488729 Screw, 8 X 1/2   (Replaces: 488783) In-Stock Immediately $ 7.79

35 488132 Screw (repair) Appelez-nous -
36 984750 Overlay, Front Cover Appelez-nous -
37 840037 Pan (meat) Appelez-nous -
38 1108777 Front Cover, Meat Appelez-nous -
39 WP982704 Container, Utility   (Replaces: 1106048) Special Order $ 31.00

40 988364 Light Lens, Lower Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

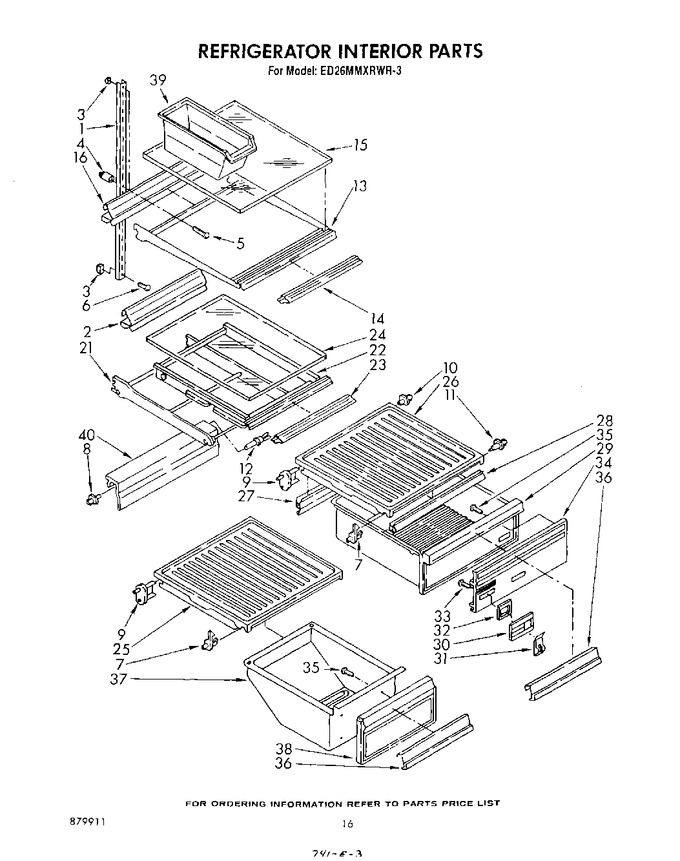

Diagram for ED26MMXRWR3
