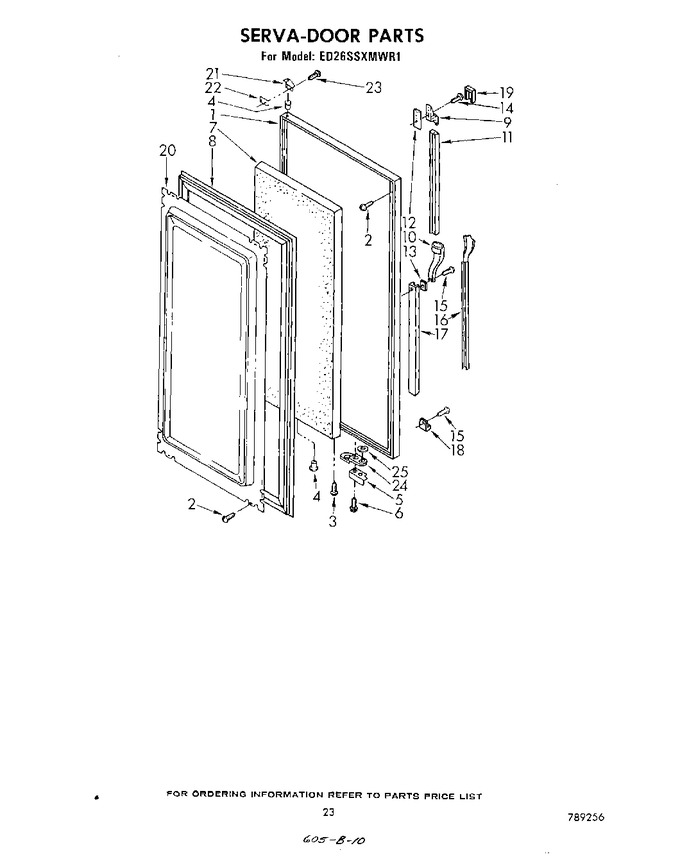

ED26SSXMWR1 | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	940468	Panel, Servadoor (golden Harvest)	Appelez-nous	-
1	940466	Panel, Servadoor (white)	Appelez-nous	-
1	940467	Panel, Servadoor (coffee)	Appelez-nous	-
1	1101446	Panel, Servadoor (platinum)	Appelez-nous	-
1	940470	Panel, Servadoor (almond)	Appelez-nous	-
1	1101445	Panel, Servadoor (toast)	Appelez-nous	-
2	W11624204	Screw, 8 X 1/2 (Replaces: 486194)			$ 14.02
3	WP488729	Screw, 8 X 1/2 (Replaces: 488320)		Immediately	$ 7.79
4	986157	Sleeve, Hinge Pivot	Appelez-nous	-
5	991331	Bracket, Door Stop	Appelez-nous	-
6	00488977	Screw (repair) (Replaces: 488977)			$ 1,526.98
6	488956	Screw, 8 X 7/16	Appelez-nous	-
7	986434	Insulation, Servadoor	Appelez-nous	-
8	991745	Gasket, Servadoor (for Platinum Model Only)	Appelez-nous	-
8	944468	Gasket, Serva-door	Appelez-nous	-
9	935105	End, Cap Handle			$ 32.80
10	935103	Centercap, Handle	Appelez-nous	-
11	945152	Handle, Center (white, Coffee)	Appelez-nous	-
11	945154	Handle, Center (almond)	Appelez-nous	-
11	936733	Handle, Center (golden Harvest)	Appelez-nous	-
11	1101442	Center, Handle (platinum)	Appelez-nous	-
11	1101441	Center, Handle (toast)	Appelez-nous	-
12	935076	Shim, Handle End	Appelez-nous	-
13	935075	Shim, Handle Center	Appelez-nous	-
14	489008	Screw, 8-32 X 7/16	Appelez-nous	-
15	488844	Screw, 8-32 X 1/2	Appelez-nous	-
16	935885	Insert, Handle	Appelez-nous	-
17	935875	Retainer, Insert	Appelez-nous	-
18	935106	End Cap, Retainer	Appelez-nous	-
19	936711	Cover, End Cap	Appelez-nous	-
20	1101457	Interior Panel (servadoor) (for Platinum Model Only)	Appelez-nous	-
20	944469	Interior Panel (servadoor)	Appelez-nous	-
21	987911	Hinge, Top	Appelez-nous	-
22	986168	Shim, Hinge Top	Appelez-nous	-
23	488927	Screw, 8-32 X 5/8	Appelez-nous	-
24	941766	Ground, Clip	Appelez-nous	-
25	488306	Washer	Appelez-nous	-
