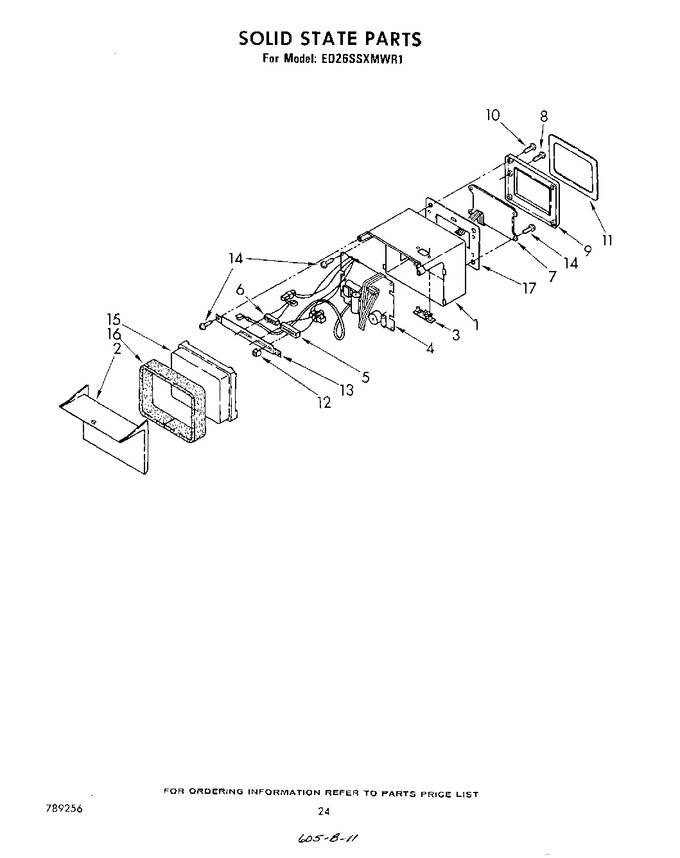

14 - Solid State


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	943526		Housing		Appelez-nous	-
2	1103607		Cover Housing (for Platinum Model Only)		Appelez-nous	-
2	943541		Cover Housing		Appelez-nous	-
3	946477		Service Switch		Appelez-nous	-
4	943527		Control Board Assembly		Appelez-nous	-
5	1100453		Freezer, Slide Switch		Appelez-nous	-
6	1100452		Refrigerator, Slide Switch		Appelez-nous	-
7	943539		Touch & Filter Switch		Appelez-nous	-
8	488624		Screw, 8 X 3/8 (ground)		Appelez-nous	-
9	943543		Escutcheon		Appelez-nous	-
10	W11693756		Screw, 8 X 5/8   (Replaces: 489065)			Immediately	$ 14.06
11	1103608		Insert, Escutcheon (toast)		Appelez-nous	-
11	943544		Insert Escutcheon (white & Coffee)		Appelez-nous	-
11	944876		Insert Escutcheon (golden Harvest)		Appelez-nous	-
11	946352		Insert, Escutcheon (almond)		Appelez-nous	-
11	1103609		Insert, Escutcheon (platinum)		Appelez-nous	-
12	1100451		Knob, Control		Appelez-nous	-
13	943533		Bracket, Switch		Appelez-nous	-
14	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
15	943529		Insulation, Control Box		Appelez-nous	-
16	939993		Gasket, Control Box		Appelez-nous	-
17	943535		Seal, Filter		Appelez-nous	-
