01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor & Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Airflow


11 - Control


12 - Icemaker, Lit/optional

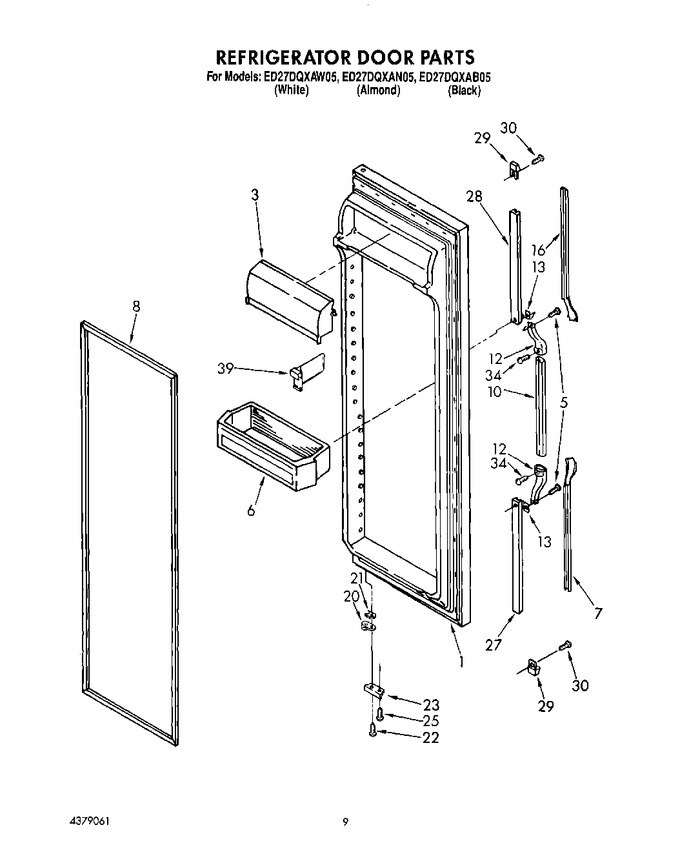

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2157690		Refrigerator Door (includes Item 8) (white)		Appelez-nous	-
1	2157692		Refrigerator Door (includes Item 8) (almond)		Appelez-nous	-
1	2163484		Refrigerator Door (includes Item 8) (black)		Appelez-nous	-
3	WP2256101		Door, Compartment   (Replaces: 2156058)			Immediately	$ 85.16
5	WP489128		Screw   (Replaces: 488500)				$ 10.88
6	2150134		Shelf Bin (2)		Appelez-nous	-
7	1118435		Insert, Handle (black)		Appelez-nous	-
7	1119363		Insert, Handle (almond)		Appelez-nous	-
7	1119373		Insert, Handle (white)		Appelez-nous	-
8	2159075		Door Gasket, Magnetic (repair) (light Grey)   (Replaces: 2159079)			Immediately	$ 317.14
8	2159075		Door Gasket, Magnetic (repair) (mist Beige)			Immediately	$ 317.14
10	1124713		Handle, Center (white)		Appelez-nous	-
10	1118417		Handle, Center (black)		Appelez-nous	-
10	943079		Handle, Center (almond)		Appelez-nous	-
12	1119359		End Cap, Center Handle		Appelez-nous	-
13	935075		Shim		Appelez-nous	-
16	1118437		Insert, Handle (black)		Appelez-nous	-
16	1119375		Insert, Handle (almond)		Appelez-nous	-
16	1119361		Insert, Handle (white)		Appelez-nous	-
20	4318165		Door Closer, Upper Cam (chrome)   (Replaces: 986758)			Immediately	$ 27.36
20	4318165		Door Closer, Upper Cam (black)   (Replaces: 1115905)			Immediately	$ 27.36
21	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.58
22	WP489069		Screw   (Replaces: 488938)			Immediately	$ 7.86
23	2157609		Bracket, Door Stop (black)		Appelez-nous	-
23	2157611		Bracket, Door Stop (chrome)		Appelez-nous	-
25	WP489069		Screw   (Replaces: 488938)			Immediately	$ 7.86
27	1119360		Retainer, Insert (bottom)		Appelez-nous	-
28	1119372		Retainer, Insert		Appelez-nous	-
29	2156220		End Cap (2)		Appelez-nous	-
30	489075		Screw		Appelez-nous	-
34	489022		Screw		Appelez-nous	-
39	2152335		Divider (2)		Appelez-nous	-
39	4210446		Woodgrain Handle Insert		Appelez-nous	-
39	4210344		Trim Kit		Appelez-nous	-
39	4210378		Black Handle Insert		Appelez-nous	-
39	4210352		Trimless Black Decor Panel		Appelez-nous	-
