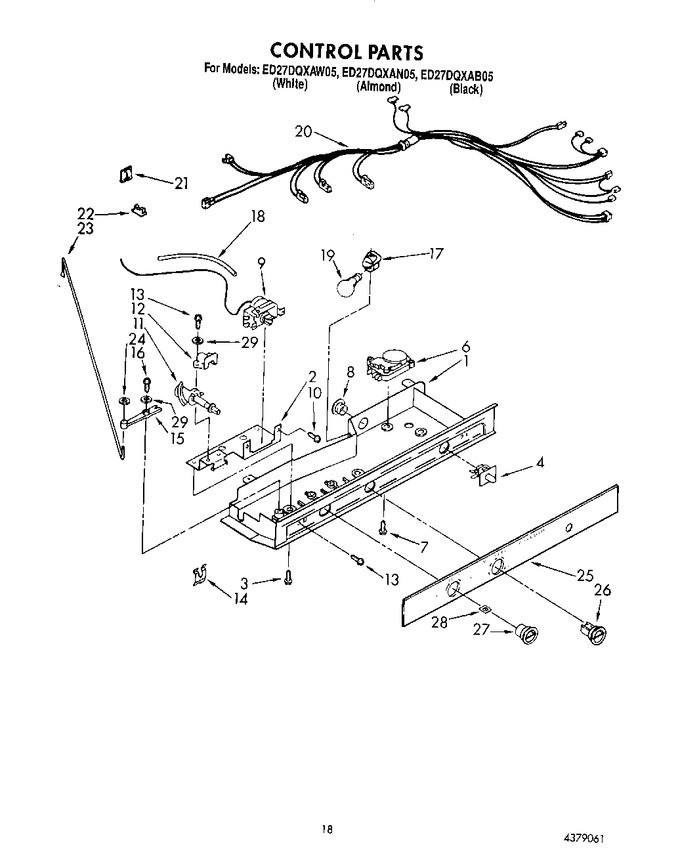

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2155518 | Control Box |
|
- | |||||
| 2 | 1110629 | Mounting Bracket |
|
- | |||||
| 3 | 489397 | Screw (2) |
|
- | |||||
| 4 | WP2149705 | Light Switch (Replaces: 2149705) |
|
Immediately | $ 40.40 | ||||
| 6 | W10822278 | Defrost Timer (Replaces: 2162046) |
|
Immediately | $ 34.44 | ||||
| 7 | 489392 | Screw (2) (Replaces: 489398) |
|
$ 13.35 | |||||
| 8 | 940014 | Hole Plug |
|
$ 18.33 | |||||
| 9 | WP2198202 | Thermostat Assembly (Replaces: 2161284) |
|
Immediately | $ 78.43 | ||||
| 10 | WP965173 | Screw (Replaces: 487869) |
|
Immediately | $ 10.72 | ||||
| 11 | 2161250 | Cam Assembly |
|
- | |||||
| 12 | 1110560 | Bearing Body |
|
$ 10.76 | |||||
| 13 | WP489478 | Screw (Replaces: 489242) |
|
$ 7.75 | |||||
| 14 | 938439 | Retainer, Damper |
|
- | |||||
| 15 | 1110559 | Pivot Arm |
|
$ 8.35 | |||||
| 16 | 627068 | Screw |
|
$ 12.12 | |||||
| 17 | 4387478 | Light Socket (Replaces: 851067) |
|
Immediately | $ 110.16 | ||||
| 18 | WP2196003 | Thermostat, Barrier (Replaces: 1115241) |
|
$ 7.95 | |||||
| 19 | 8009 | Light Bulb (Replaces: 527949) |
|
Immediately | $ 18.67 | ||||
| 20 | 2149186 | Control Box Harness |
|
- | |||||
| 21 | WP1115374 | Clip, Wiring (Replaces: 1115374) |
|
$ 7.75 | |||||
| 22 | 1115375 | Clip, Wiring |
|
$ 11.15 | |||||
| 23 | 1123960 | Connecting Rod |
|
$ 6.81 | |||||
| 24 | 489285 | Fastener, Push-on |
|
- | |||||
| 25 | 2161213 | Escutcheon, Control Box |
|
- | |||||
| 26 | 1116852 | Knob, Thermostat |
|
- | |||||
| 27 | 1116853 | Knob, Air Control |
|
- | |||||
| 28 | 837444 | Knob, Retainer |
|
- | |||||
| 29 | 489203 | Spring Washer |
|
- |
