Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

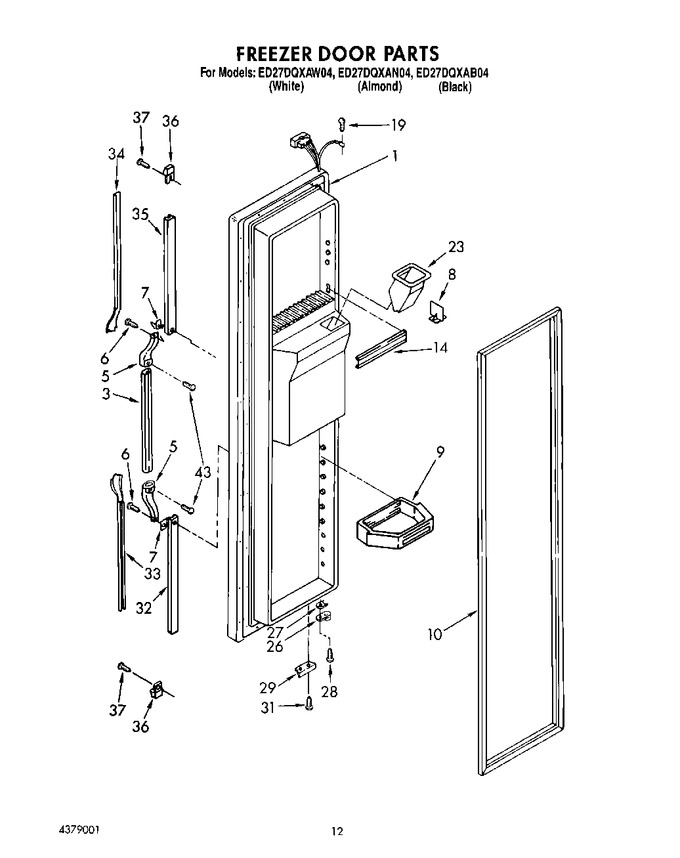

1	2157696		Freezer Door (includes Item 10 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2157698		Freezer Door (includes Item 10 And Dispenser Front Parts) (almond)		Appelez-nous	-
1	2163483		Freezer Door (includes Item 10 And Dispenser Front Parts) (black)		Appelez-nous	-
3	1118417		Handle, Center (black)		Appelez-nous	-
3	943079		Handle, Center (almond)		Appelez-nous	-
3	1124713		Handle, Center (white)		Appelez-nous	-
5	1119359		End Cap (2)		Appelez-nous	-
6	WP489128		Screw   (Replaces: 488500)				$ 10.88
7	935075		Shim, End Cap (2)		Appelez-nous	-
8	1123293		Divider, Shelf (white)		Appelez-nous	-
8	1114380		Divider, Shelf (brown)		Appelez-nous	-
9	2150137		Shelf Bin (4)		Appelez-nous	-
10	2159074		Door Gasket, Magnetic (repair) (light Grey)   (Replaces: 2159078)				$ 310.19
10	2159074		Door Gasket, Magnetic (repair) (mist Beige)				$ 310.19
14	2159192		Trim, Door Shelf		Appelez-nous	-
19	WP488234		Screw   (Replaces: 488889)				$ 6.74
23	2156145		Chute, Ice		Appelez-nous	-
26	4318165		Door Closer, Upper Cam (chrome)   (Replaces: 986758)			Immediately	$ 27.36
26	4318165		Door Closer, Upper Cam (black)   (Replaces: 1115905)			Immediately	$ 27.36
27	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.58
28	WP489069		Screw   (Replaces: 488938)			Immediately	$ 7.86
29	2157609		Bracket, Door Stop (black)		Appelez-nous	-
29	2157611		Bracket, Door Stop (chrome)		Appelez-nous	-
31	WP489069		Screw   (Replaces: 488938)			Immediately	$ 7.86
32	1119360		Retainer, Insert		Appelez-nous	-
33	1119363		Insert, Handle (almond)		Appelez-nous	-
33	1118435		Insert, Handle (black)		Appelez-nous	-
33	1119373		Insert, Handle (white)		Appelez-nous	-
34	1119361		Insert, Handle (white)		Appelez-nous	-
34	1119375		Insert, Handle (almond)		Appelez-nous	-
34	1118437		Insert, Handle (black)		Appelez-nous	-
35	1119372		Retainer, Insert		Appelez-nous	-
36	2156220		End Cap (2)		Appelez-nous	-
37	489075		Screw		Appelez-nous	-
43	489022		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
