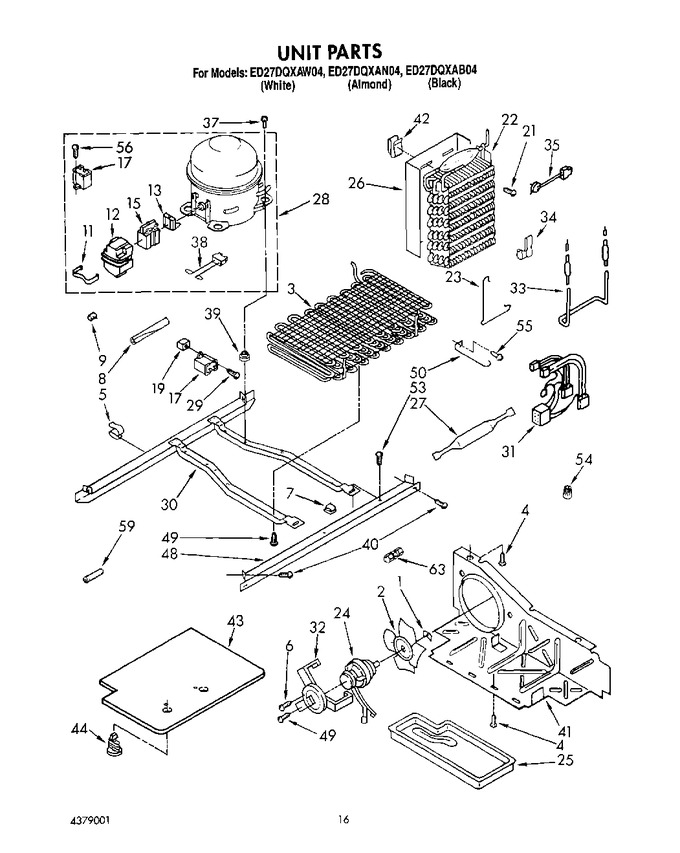

SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP486692 | Speed Nut (Replaces: 486692) |
|
$ 7.82 | |||||
| 2 | 1108179 | Fan, Blade |
|
$ 49.54 | |||||
| 3 | 2154011 | Condenser Assembly |
|
- | |||||
| 4 | WP489464 | Screw (Replaces: 489337) |
|
Immediately | $ 7.83 | ||||
| 5 | 2155658 | Clip, Wire |
|
- | |||||
| 6 | 681390 | Screw (Replaces: 489019) |
|
$ 13.06 | |||||
| 7 | 934011 | Clip, Tube (3) |
|
- | |||||
| 8 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 20.30 | ||||
| 9 | WP2158826 | Dampener (Replaces: 2158826) |
|
$ 1.73 | |||||
| 11 | 938384 | Strap (service) |
|
- | |||||
| 11 | 943322 | Strap (production) |
|
- | |||||
| 12 | 1108115 | Cover (service) |
|
- | |||||
| 12 | 1105055 | Cover (production) |
|
- | |||||
| 13 | WP61006294 | Overload (production (includes Relay)) (Replaces: 2162218) |
|
$ 115.41 | |||||
| 13 | 1118841 | Overload (service (includes Relay)) |
|
- | |||||
| 15 | N/A | Relay (see Overload) |
|
- | |||||
| 17 | WPW10662129 | Running Capacitor (service) (Replaces: 1118581) |
|
Immediately | $ 58.86 | ||||
| 17 | WPW10662129 | Running, Capacitor (production) (Replaces: 1114291) |
|
Immediately | $ 58.86 | ||||
| 19 | 509812 | Screw Grommet |
|
- | |||||
| 21 | WP489478 | Screw (Replaces: 489242) |
|
$ 7.75 | |||||
| 22 | 2155501 | Evaporator |
|
- | |||||
| 23 | 2161324 | Clamp |
|
- | |||||
| 24 | 833697 | Fan, Motor (Replaces: 2154735) |
|
Immediately | $ 88.15 | ||||
| 25 | 1110674 | Tray, Evaporator |
|
- | |||||
| 26 | 2149294 | Heat Shield |
|
- | |||||
| 27 | W10843121 | Drier (Replaces: 2154002) |
|
Immediately | $ 52.57 | ||||
| 28 | 2154562 | Compressor (includes Items 11, 12, 13, 15, 17, 38 & 56) |
|
- | |||||
| 28 | 876765 | Also Order Tube Kit) |
|
Immediately | $ 86.33 | ||||
| 29 | W11693756 | Screw (Replaces: 488687) |
|
Immediately | $ 14.06 | ||||
| 30 | 2304904 | Unit Mounting Frame (Replaces: 2160502) |
|
- | |||||
| 31 | 2149199 | Unit, Harness |
|
- | |||||
| 32 | 2162062 | Fan, Motor Bracket |
|
- | |||||
| 33 | 2161323 | Heater, Defrost |
|
$ 79.43 | |||||
| 34 | 2161330 | Clip |
|
- | |||||
| 35 | WPW10225581 | Defrost, Bi-metal (Replaces: 2161331) |
|
Immediately | $ 50.77 | ||||
| 37 | 489387 | Screw |
|
- | |||||
| 38 | WP2172890 | Wire, Connector (Replaces: 1127675) |
|
$ 8.10 | |||||
| 39 | 2162067 | Grommet (4) |
|
- | |||||
| 40 | 489340 | Screw |
|
- | |||||
| 41 | W10896764 | Baffle, Air (Replaces: 2149128) |
|
$ 96.38 | |||||
| 42 | 2155547 | Clip, Heat Shield |
|
- | |||||
| 43 | 2161363 | Unit Cover, Bottom |
|
- | |||||
| 44 | 489396 | Clip |
|
$ 10.72 | |||||
| 48 | 2305374 | Unit Mounting Rail (Replaces: 1127906) |
|
$ 80.64 | |||||
| 49 | 488624 | Screw |
|
- | |||||
| 50 | 1110663 | Guard, Fan |
|
- | |||||
| 53 | WP489427 | Screw (Replaces: 489339) |
|
$ 7.47 | |||||
| 54 | 227991 | Wire Connector |
|
- | |||||
| 55 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 21.16 | |||||
| 56 | W11693756 | Screw (Replaces: 487240) |
|
Immediately | $ 14.06 | ||||
| 59 | 983659 | Spring-tube |
|
- | |||||
| 63 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 91.35 | ||||
| 63 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 63 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 63 | 978030 | Valve, Access (3/4``) |
|
$ 130.71 | |||||
| 63 | WP4211117 | Union (Replaces: 2150347) |
|
$ 9.96 | |||||
| 63 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 105.25 | ||||
| 63 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 128.09 | ||||
| 63 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 |
