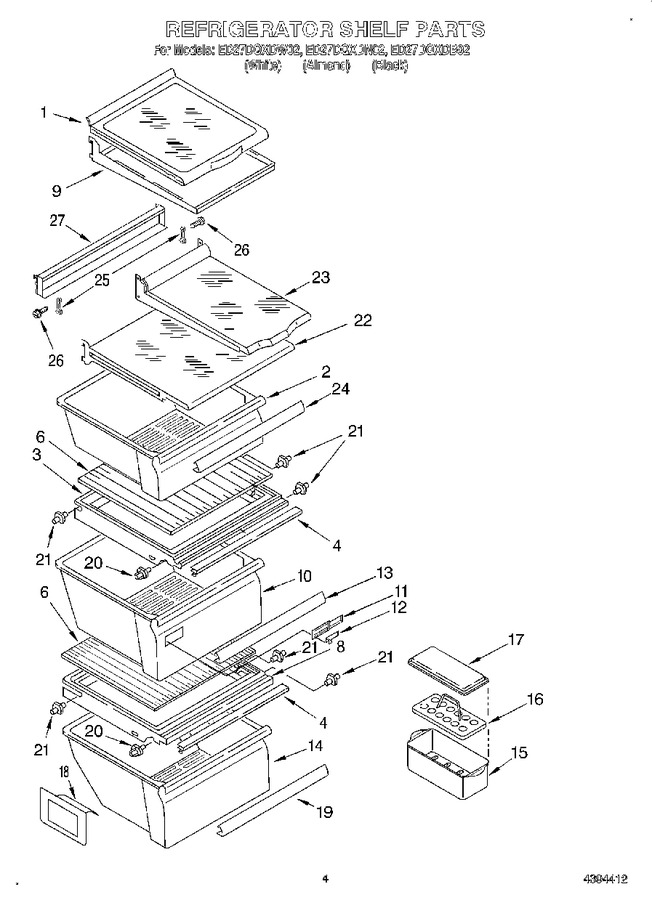

03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Airflow


11 - Control


12 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10141748		Shelf Assembly, Glass Sliding (2)   (Replaces: 2174041)				$ 357.65
2	W11497323		Snack Bin   (Replaces: 2189531)				$ 234.84
3	W10508993		Cover, Crisper   (Replaces: 2189618)				$ 305.85
4	2174442		Gasket, Cover (front)		Appelez-nous	-
6	W10864399		Glass, Cover (2)   (Replaces: 2179259)				$ 232.03
8	W10508993		Cover, Meat Pan   (Replaces: 2189601)				$ 305.85
9	2174042		Frame, Shelf (2)		Appelez-nous	-
10	WP2188656		Pan, Crisper   (Replaces: 2189529)				$ 143.22
11	WP2179343		Front, Crisper Pan   (Replaces: 2179343)				$ 34.02
12	WP2179342		Slide, Humidity Control   (Replaces: 2179342)				$ 30.60
13	WP2179234		Trim, Handle   (Replaces: 2189533)				$ 88.57
14	WP2188664		Meat Pan   (Replaces: 2189530)			Immediately	$ 92.70
15	W10136387A		Bin, Egg   (Replaces: 2169933)				$ 19.54
16	WP2177817		Egg Carrier   (Replaces: 2164373)				$ 18.78
17	2169935		Cover		Appelez-nous	-
18	2179350		Deflector				$ 85.89
19	WP2179234		Trim, Handle   (Replaces: 2189532)				$ 88.57
20	4388539		Shelf Stud   (Replaces: 2172943)				$ 22.28
21	4388538		Shelf Stud   (Replaces: 1110718)			Immediately	$ 32.85
22	2174045		Shelf, Snack Bin		Appelez-nous	-
23	2174392		Shelf, Slide (side To Side)		Appelez-nous	-
24	2189620		Trim, Handle		Appelez-nous	-
25	2169608		Hook, Shelf		Appelez-nous	-
26	489419		Screw		Appelez-nous	-
27	2174422		Track, Shelf		Appelez-nous	-
