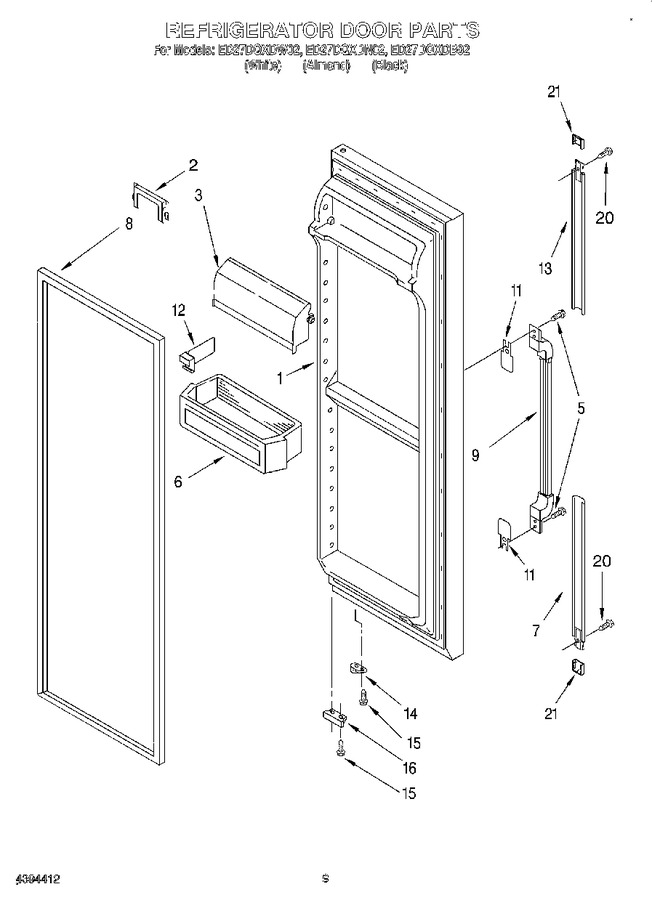

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2177112		Refrigerator Door (includes Item No.8) (white)		Appelez-nous	-
1	2171597		Refrigerator Door (includes Item No.8) (almond)		Appelez-nous	-
1	2170605		Refrigerator Door (includes Item No.8) (black)		Appelez-nous	-
2	2173643		Retainer, Bottle		Appelez-nous	-
3	WP2256101		Door, Compartment   (Replaces: 2177105)			Immediately	$ 89.42
5	WP489463		Screw   (Replaces: 489463)				$ 8.25
6	2179608		Shelf Bin (4)		Appelez-nous	-
7	2174284		Extension, Bottom (black)		Appelez-nous	-
7	2174283		Extension, Bottom (almond)		Appelez-nous	-
7	2174282		Extension, Bottom (white)		Appelez-nous	-
8	2159075		Door Gasket, Magnetic (service) (mist Beige)			Immediately	$ 333.00
8	2159083		Door Gasket, Magnetic (service) (black)				$ 251.49
9	2194698		Handle, Center (almond)		Appelez-nous	-
9	2194699		Handle, Center (black)		Appelez-nous	-
9	2194697		Handle, Center (white)		Appelez-nous	-
11	2179399		Shim		Appelez-nous	-
12	2171284		Divider, Bin		Appelez-nous	-
13	2174280		Extension, Top (almond)		Appelez-nous	-
13	2174281		Extension, Top (black)		Appelez-nous	-
13	2174279		Extension, Top (white)		Appelez-nous	-
14	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 29.74
15	WP489483		Screw   (Replaces: 489420)				$ 11.41
16	2155331		Bracket, Door Stop (chrome)		Appelez-nous	-
16	2155329		Bracket, Door Stop (black)		Appelez-nous	-
20	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
21	2174008		Cover, Endcap (black)		Appelez-nous	-
21	2174006		Cover, Endcap (white)		Appelez-nous	-
21	2174007		Cover, End Cap (almond)		Appelez-nous	-
