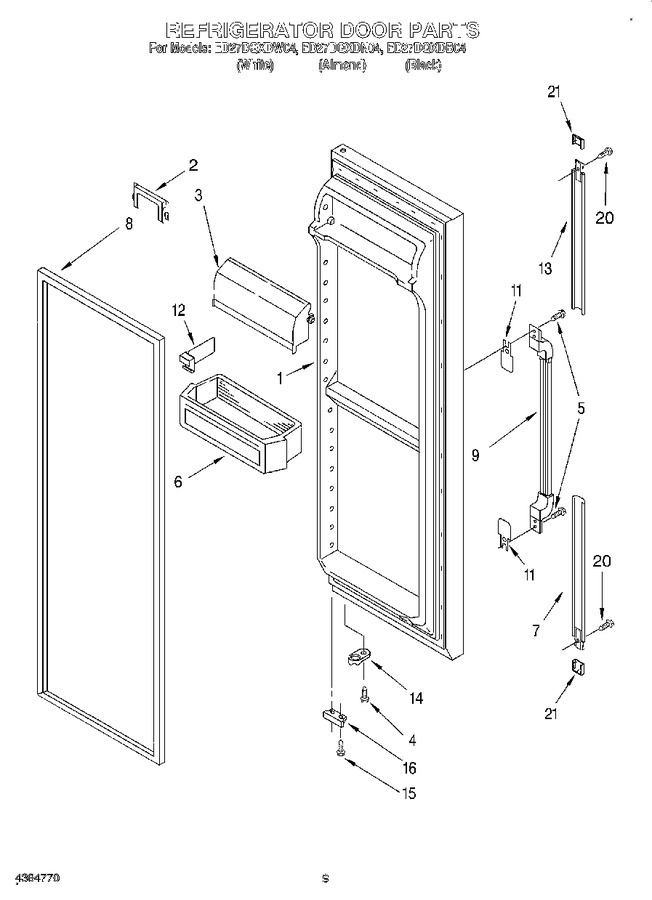

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2194514W | Refrigerator Door (includes Item No.8) (white) |
|
- | |||||
| 1 | 2194514N | Refrigerator Door (includes Item No.8) (almond) |
|
- | |||||
| 1 | 2194514B | Refrigerator Door (includes Item No.8) (black) |
|
- | |||||
| 2 | 2173643 | Retainer, Bottle |
|
- | |||||
| 3 | WP2256101 | Door, Compartment (Replaces: 2177105) |
|
Immediately | $ 85.16 | ||||
| 4 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.82 | |||||
| 5 | WP489463 | Screw (Replaces: 489463) |
|
$ 7.82 | |||||
| 6 | 2179608 | Shelf Bin (4) |
|
- | |||||
| 7 | 2194766N | Extension, Bottom (almond) |
|
- | |||||
| 7 | 2194766W | Extension, Bottom (white) |
|
- | |||||
| 7 | 2194766B | Extension, Bottom (black) |
|
- | |||||
| 8 | 2159075 | Door Gasket, Magnetic (service) (mist Beige) |
|
Immediately | $ 317.14 | ||||
| 8 | 2159083 | Door Gasket, Magnetic (service) (black) |
|
$ 251.49 | |||||
| 9 | 2194759B | Handle, Center (black) |
|
- | |||||
| 9 | 2194759N | Handle, Center (almond) |
|
- | |||||
| 9 | 2194759W | Handle, Center (white) |
|
- | |||||
| 11 | 2179399 | Shim |
|
- | |||||
| 12 | 2195496 | Divider, Bin |
|
- | |||||
| 13 | 2194765N | Extension, Top (almond) |
|
- | |||||
| 13 | 2194765B | Extension, Top (black) |
|
- | |||||
| 13 | 2194765W | Extension, Top (white) |
|
- | |||||
| 14 | 4318165 | Door Closer, Upper Cam (Replaces: 2182132) |
|
Immediately | $ 27.36 | ||||
| 15 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.87 | |||||
| 16 | 2155331 | Bracket, Door Stop (chrome) |
|
- | |||||
| 16 | 2155329 | Bracket, Door Stop (black) |
|
- | |||||
| 20 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 7.67 | |||||
| 21 | 2174008 | Cover, Endcap (black) |
|
- | |||||
| 21 | 2174006 | Cover, Endcap (white) |
|
- | |||||
| 21 | 2174007 | Cover, End Cap (almond) |
|
- |
