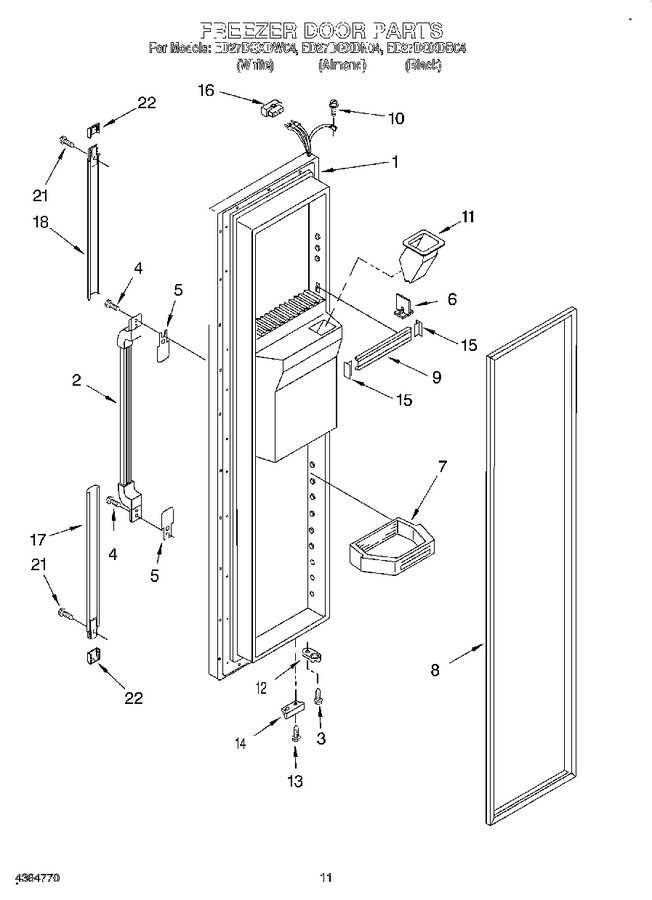

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194816N		Freezer Door (includes Item No.8 And Dispenser Front Parts) (almond)		Appelez-nous	-
1	2194816W		Freezer Door (includes Item No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2194816B		Freezer Door (includes Item No.8 And Dispenser Front Parts) (black)		Appelez-nous	-
2	2194759N		Handle, Center (almond)		Appelez-nous	-
2	2194759W		Handle, Center (white)		Appelez-nous	-
2	2194759B		Handle, Center (black)		Appelez-nous	-
3	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
4	WP489463		Screw   (Replaces: 489463)				$ 7.82
5	2179399		Shim, End Cap (2)		Appelez-nous	-
6	1123293		Divider		Appelez-nous	-
7	2179580		Shelf Bin (4)		Appelez-nous	-
8	2159074		Door Gasket, Magnetic (service) (mist Beige)				$ 310.19
8	2159082		Door Gasket, Magnetic (service) (black)				$ 316.66
9	WPW10307490		Trim, Door Shelf   (Replaces: 2195931)			Immediately	$ 23.11
10	WP488234		Screw   (Replaces: 489422)				$ 6.74
11	2156145		Chute, Ice		Appelez-nous	-
12	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 27.36
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	2155329		Bracket, Door Stop (black)		Appelez-nous	-
14	2155331		Bracket, Door Stop (chrome)		Appelez-nous	-
15	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.18
16	WP2154473		Connector   (Replaces: 2154473)				$ 23.65
17	2194766B		Extension, Bottom (black)		Appelez-nous	-
17	2194766N		Extension, Bottom (almond)		Appelez-nous	-
17	2194766W		Extension, Bottom (white)		Appelez-nous	-
18	2194765B		Extension, Top (black)		Appelez-nous	-
18	2194765W		Extension, Top (white)		Appelez-nous	-
18	2194765N		Extension, Top (almond)		Appelez-nous	-
21	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
22	2174008		Cover, Endcap (black)		Appelez-nous	-
22	2174007		Cover, End Cap (almond)		Appelez-nous	-
22	2174006		Cover, Endcap (white)		Appelez-nous	-
