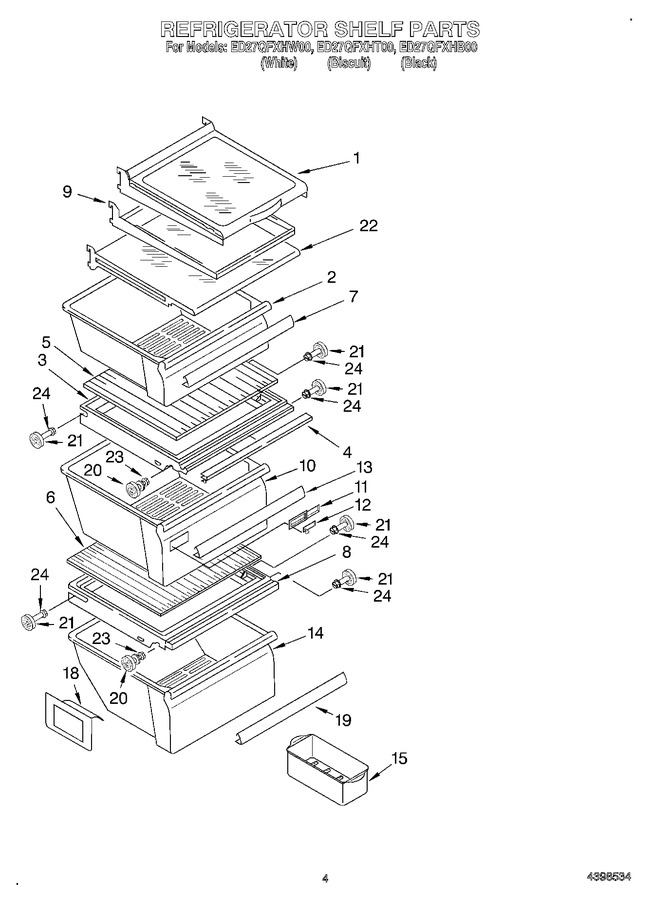

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10141748 | Shelf Assembly, Cantilever (2) (Replaces: 2194736) |
|
$ 340.62 | |||||
| 2 | W11497323 | Snack Bin (Replaces: 2196233) |
|
$ 223.66 | |||||
| 3 | W10508993 | Cover, Crisper (Replaces: 2194578) |
|
$ 291.29 | |||||
| 4 | 2174442 | Gasket, Cover |
|
- | |||||
| 5 | W10864399 | Glass, Cover (Replaces: 2174150) |
|
$ 220.98 | |||||
| 6 | W10864399 | Glass, Cover (Replaces: 2179259) |
|
$ 220.98 | |||||
| 7 | WP2179243 | Trim, Handle (Replaces: 2179243) |
|
$ 104.43 | |||||
| 8 | W10508993 | Cover, Meat Pan (Replaces: 2189601) |
|
$ 291.29 | |||||
| 9 | 2195975 | Frame, Shelf |
|
$ 84.01 | |||||
| 10 | WP2188656 | Pan, Crisper (Replaces: 2196160) |
|
$ 136.40 | |||||
| 11 | WP2179343 | Housing, Humidity Control (Replaces: 2179343) |
|
$ 32.40 | |||||
| 12 | WP2179342 | Slide, Humidity Control (Replaces: 2179342) |
|
$ 29.14 | |||||
| 13 | WP2179234 | Trim, Handle (Replaces: 2194913) |
|
$ 84.35 | |||||
| 14 | WP2188664 | Meat Pan (Replaces: 2196162) |
|
Immediately | $ 85.30 | ||||
| 15 | W10136387A | Egg Bin (Replaces: 2182730) |
|
$ 18.61 | |||||
| 18 | 2179350 | Deflector |
|
$ 81.80 | |||||
| 19 | WP2179234 | Trim, Handle (Replaces: 2194906) |
|
$ 84.35 | |||||
| 20 | W11223328 | Stud Assembly (Replaces: 2196485) |
|
Immediately | $ 14.07 | ||||
| 21 | WP2196483 | Stud Assembly (Replaces: 2196483) |
|
$ 10.35 | |||||
| 22 | 2209601 | Shelf, Snack Bin |
|
- | |||||
| 23 | WP3-24004-109 | Screw (Replaces: 3400894) |
|
$ 8.05 | |||||
| 24 | WP3400806 | Screw (Replaces: 8281158) |
|
$ 7.71 |
