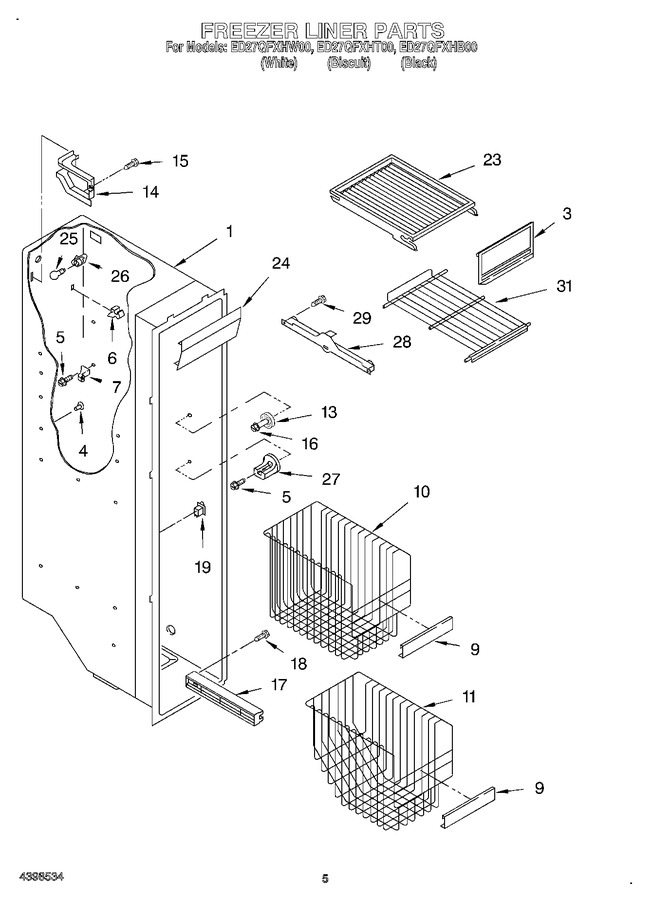

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 3 | WP2171713 | Door, Ice Compartment (Replaces: 2171713) |
|
$ 87.27 | |||||
| 4 | 2176134 | Grommet |
|
$ 5.83 | |||||
| 5 | W10142289 | Screw (Replaces: 3400893) |
|
$ 9.15 | |||||
| 6 | 2215823 | Clip, Air Duct (2) (Replaces: 842534) |
|
$ 10.42 | |||||
| 7 | 2196206 | Support, Stud |
|
- | |||||
| 9 | 2195905 | Trim, Basket |
|
$ 38.60 | |||||
| 10 | 2181765 | Basket, Tall |
|
- | |||||
| 11 | 2181764 | Basket, Slope |
|
- | |||||
| 13 | WP2196483 | Stud Assembly (Replaces: 2196483) |
|
$ 10.35 | |||||
| 14 | 2155572 | Cover, Wiring |
|
- | |||||
| 15 | W11233072 | Screw (Replaces: 489355) |
|
Immediately | $ 14.02 | ||||
| 16 | WP3400806 | Screw (Replaces: 8281158) |
|
$ 7.71 | |||||
| 17 | 2181760 | Slide, Basket (right Side (2)) |
|
- | |||||
| 17 | 2181759 | Slide, Basket (left Side (2)) |
|
- | |||||
| 18 | W10759522 | Screw (Replaces: 486298) |
|
$ 7.75 | |||||
| 19 | W11457217 | Switch, Rocker Arm (Replaces: 1115373) |
|
$ 38.18 | |||||
| 23 | 2174493 | Shelf, Top Compartment |
|
- | |||||
| 24 | 2171705 | Lens, Light |
|
$ 94.68 | |||||
| 25 | 8009 | Light Bulb (Replaces: 527949) |
|
Immediately | $ 18.67 | ||||
| 26 | 4387478 | Light Socket (Replaces: 2162085) |
|
Immediately | $ 110.16 | ||||
| 27 | 2196207 | Stud, Rear |
|
$ 7.61 | |||||
| 28 | W10845585 | Slide, Container (left Side) (Replaces: 1119237) |
|
$ 132.77 | |||||
| 28 | W10845583 | Slide, Container (right Side) (Replaces: 1119293) |
|
$ 123.92 | |||||
| 29 | 718257 | Screw (Replaces: 489100) |
|
- | |||||
| 31 | WP2174267 | Shelf (Replaces: 2174267) |
|
$ 88.90 |
